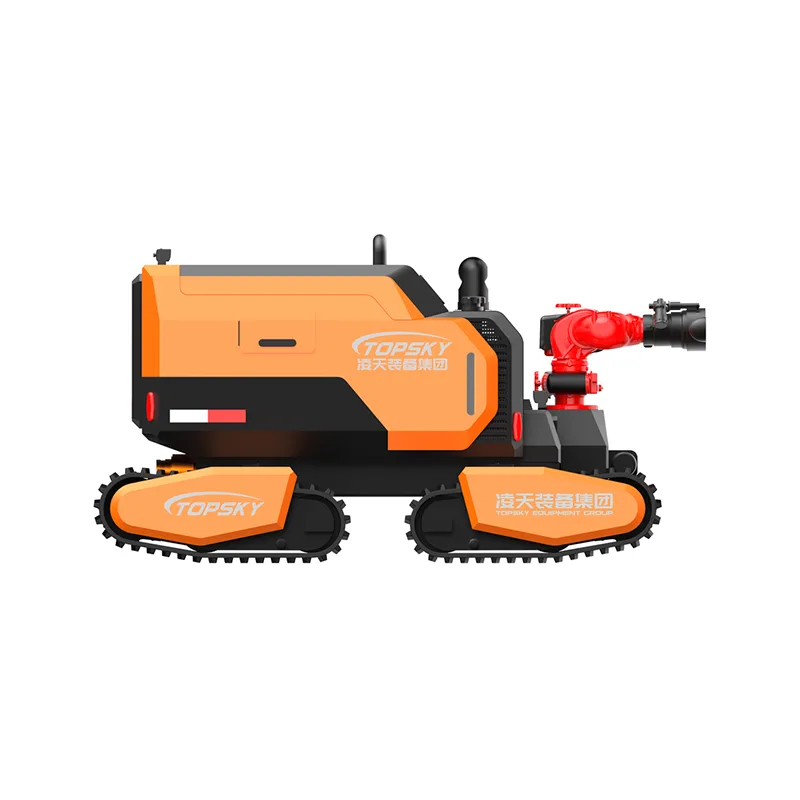

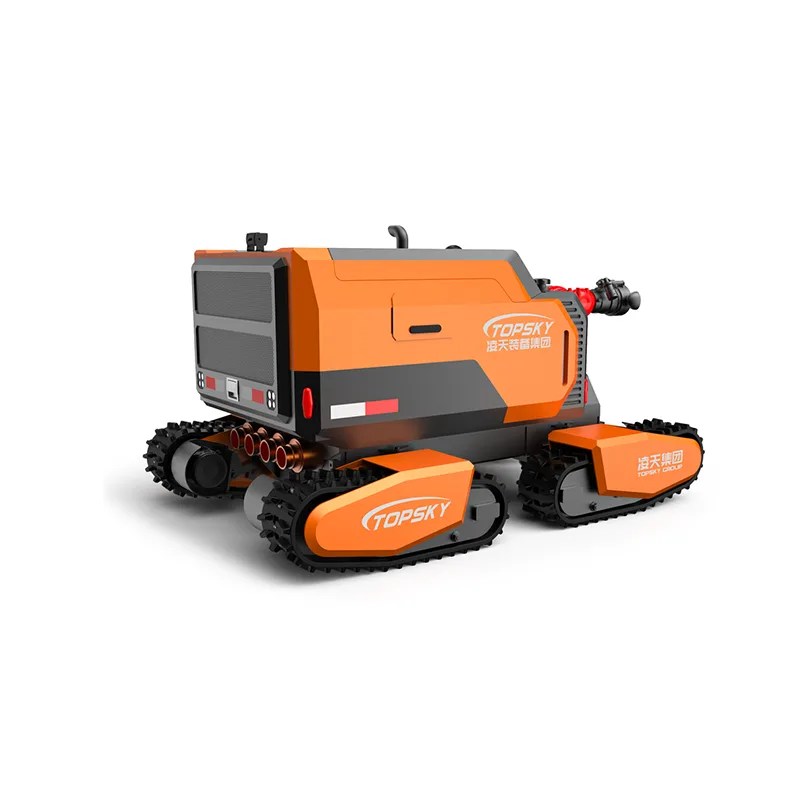

Tracked Firefighting Robot
The All Terrain Firefighting Hydraulic Robot is a next-generation intelligent firefighting solution designed for extreme rescue environments. Powered by a diesel engine with a hydraulic drive system, it enables strong off-road performance and long-duration operations in dangerous
Specifications
- Item
- Description
- Weight
- 1910 kg
- Track Type
- Four-track drive with shock absorption and tensioning device
- Application
- Fire suppression, hazardous gas reconnaissance, rescue in extreme environments
- Power Source
- Diesel engine with hydraulic transmission system
- Product Name
- All Terrain Four Tracks Firefighting Hydraulic Robot
- Wading Depth
- ≥ 502 mm
- Working Time
- 16-hour continuous reliability test passed
- Load Capacity
- ≥ 803 kg towing load
- Maximum Speed
- ≥ 3.32 m/s (stepless remote speed control)
- Control System
- Remote control + side-mounted monitoring panel
- Foam Flow Rate
- ≥ 150 L/s
- Traction Force
- ≥ 20.4 KN
- Water Flow Rate
- ≥ 157.2 L/s
- Braking Distance
- ≤ 0.18 m
- Climbing Ability
- ≥ 40°
- Ground Clearance
- ≥ 253 mm
- Hydraulic Output
- Rear high-pressure hydraulic interface for demolition tools
- Protection Level
- Suitable for high-temperature, smoke, and toxic gas environments
- Turning Diameter
- ≤ 3015 mm
- Water/Foam Range
- ≥ 109.8 m (water), ≥ 92.7 m (foam)
- Obstacle Clearance
- ≥ 500 mm
- Dimensions (L×W×H)
- 2262 × 1566 × 1323 mm
- Roll Stability Angle
- ≥ 34°
- Remote Control Distance
- ≥ 1800 m
- Straight-line Deviation
- ≤ 1.4%
- Environmental Monitoring
- 14 gas parameters + 2 environment parameters
