Food X-Ray Inspection System

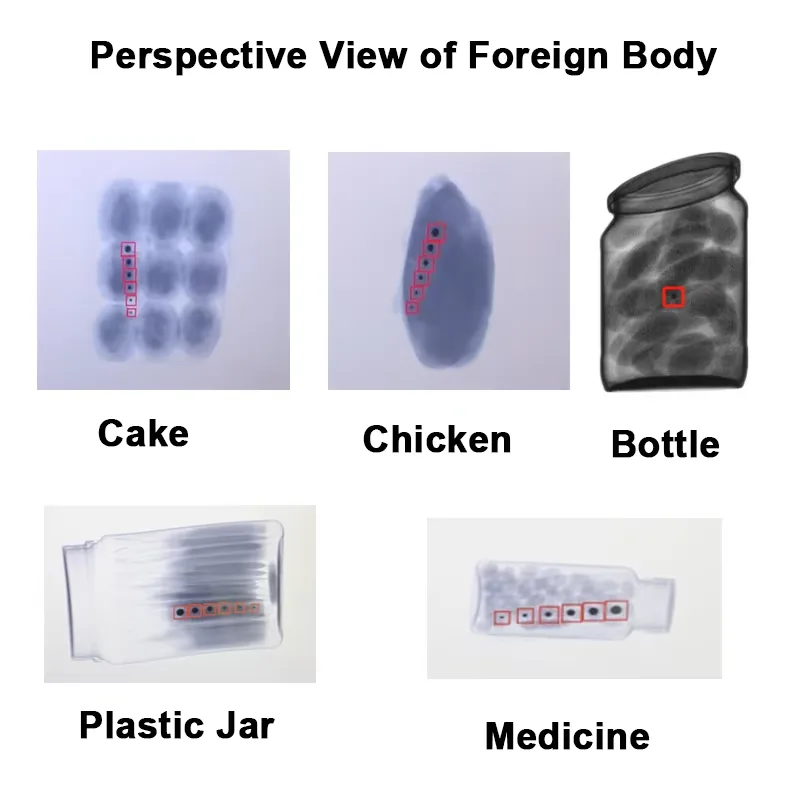

This high-precision X-ray inspection system is designed for detecting contaminants inside small packaged food and industrial products. With a high-resolution detector, adaptive algorithms, and multi-energy X-ray source, it identifies metal and non-metal foreign objects such as st
Specifications
- Model
- XR-500D
- Screen
- 21.5-inch full-color touchscreen
- Software
- X-ray inspection software
- Languages
- English
- Alarm Type
- Buzzer + light alarm
- Tunnel Size
- 400mm (W) × 200mm (H), customizable
- Connectivity
- LAN port, USB port
- Power Supply
- AC220V ±10%, 50/60Hz
- X-ray Source
- 150W 80kV (optional 350W 100kV)
- Conveyor Belt
- Food-grade PU belt
- Load Capacity
- ≤5kg, customizable
- X-ray Leakage
- <1μSv/h (FDA & CE compliant)
- Beam Direction
- Top-down X-ray beam
- Conveyor Speed
- 20–60 m/min
- Cooling System
- Industrial cooling fans + industrial air conditioning
- Emergency Stop
- Yes
- User Management
- 3-level access (operator / worker / administrator)
- Operating System
- Win 10
- Surface Treatment
- Mirror polished or brushed
- Parameter Settings
- Auto setting / manual setting
- Protection Curtain
- 6-layer food-grade soft curtain (non-lead)
- Detector Resolution
- 0.4 mm
- Working Environment
- -5℃ to 40℃; humidity 30–90% RH (no condensation)
- Construction Material
- SUS304 stainless steel
- Max Detection Sensitivity (no product)
- SUS ≥0.4mm; Ceramic ≥1.0mm; Glass ≥1.5mm
