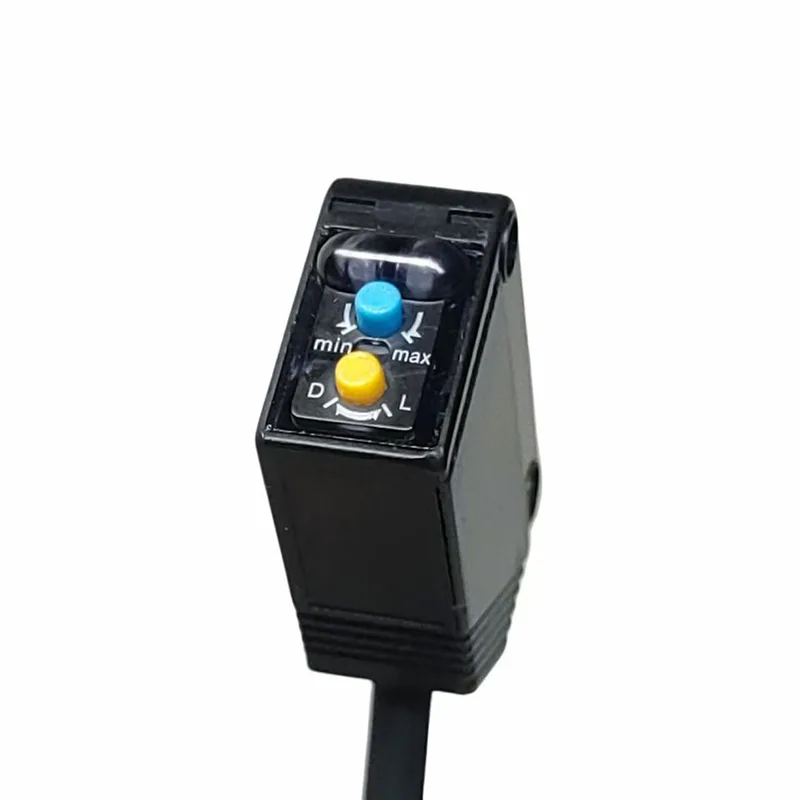

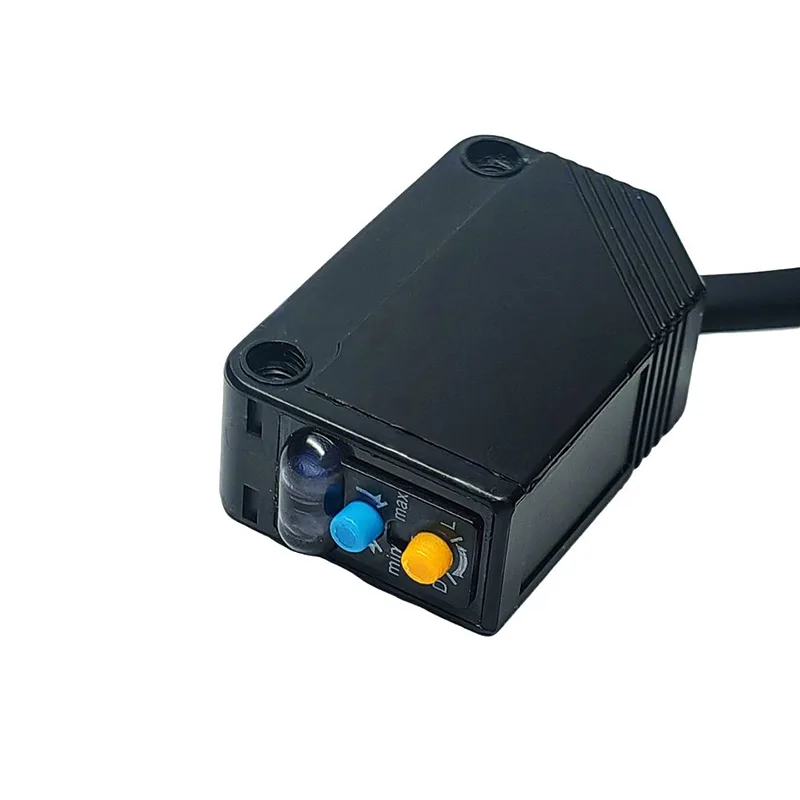

Conveyor Positioning Photoelectric Sensor
The BT04M photoelectric positioning sensor is designed for high-precision conveyor belt measurement and industrial automation tasks. With a long sensing range of up to 4 meters, excellent ambient light immunity, and a 1 mm repeatability, it delivers reliable distance and position
Specifications
- Item
- Details
- Model
- BT04M
- Weight
- 7 g (without cable)
- Frequency
- 100 Hz or 1 kHz (adjustable)

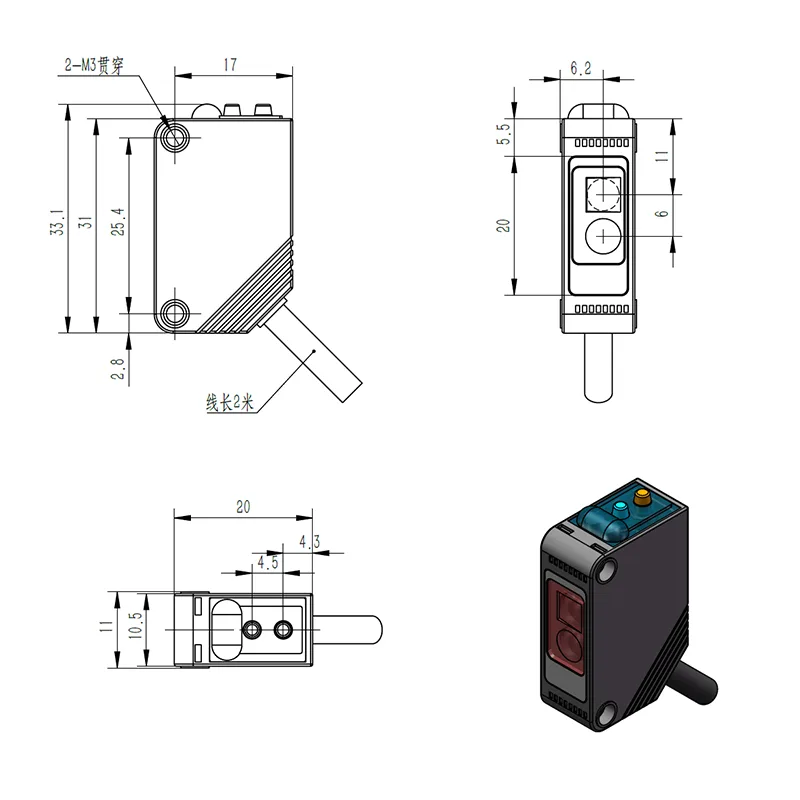

- Dimensions
- 33.1 × 20 × 11 mm
- Cable Length
- 2 m
- Peak Current
- 100 mA
- Repeatability
- 1 mm
- Supply Voltage
- 9–30V DC
- Average Current
- 17 mA
- Output Interface
- NPN / PNP
- Protection Level
- IP65
- Measurement Range
- 0.05–1.8 m (10% reflectivity) / 0.05–4 m (90% reflectivity)
- Power Consumption
- 0.4 W
- Central Wavelength
- 650 nm (visible red light)
- Field of View (FOV)
- 8 mm diameter @ 2 m
- Operating Temperature
- –20°C ~ +55°C
- Ambient Light Immunity
- < 4000 Lux
- Photobiological Safety
- Class 2
