Double-Suction Split-Case Centrifugal Pump

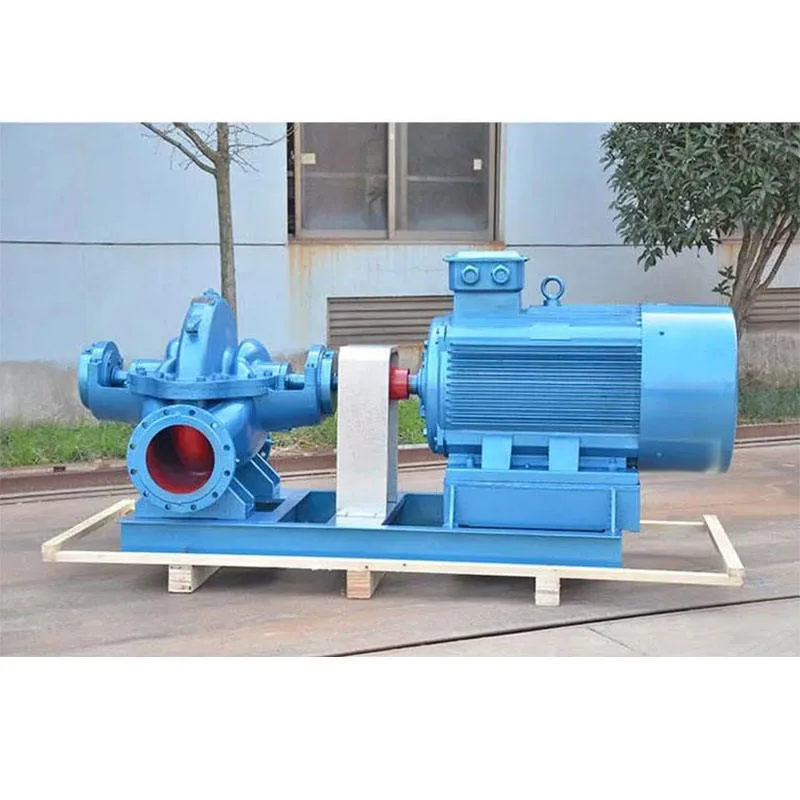

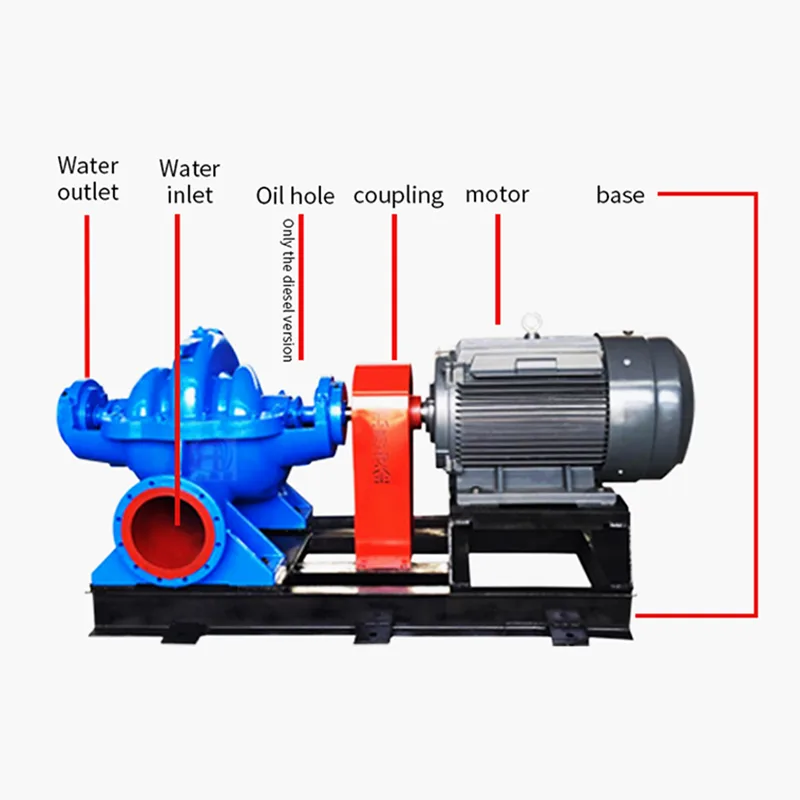

This horizontal double suction split case centrifugal pump is designed for large flow and high-pressure water transfer in industrial, municipal, and agricultural applications. With a single-stage, horizontally split casing and double suction impeller, the pump delivers stable per
Specifications
- Color
- Customizable
- Pressure
- High Pressure
- Outlet Size
- 6 inch – 48 inch
- Performance
- Large Flow
- Power Range
- 11 – 2240 kW
- Power Source
- Electric Motor / Diesel Engine
- Product Type
- Double Suction Split Case Centrifugal Pump
- Impeller Type
- Double Suction
- Pump Structure
- Single-stage, Horizontally Split
- Shaft Position
- Horizontal
- Shaft Seal Type
- Gland Packing / Mechanical Seal
- Voltage Options
- 220 / 230 / 380 / 400 / 415 / 460 / 1000 V
- Applicable Media
- Clean water and low-abrasive liquids
- Impeller Material
- Cast Iron / SS304 / SS316 / Duplex Stainless Steel / Bronze
- Pump Casing Material
- Cast Iron / Stainless Steel
- Typical Applications
- Irrigation, Water Treatment, Industrial Utilities, Mining Water Supply
- Customization Support
- OEM / ODM
