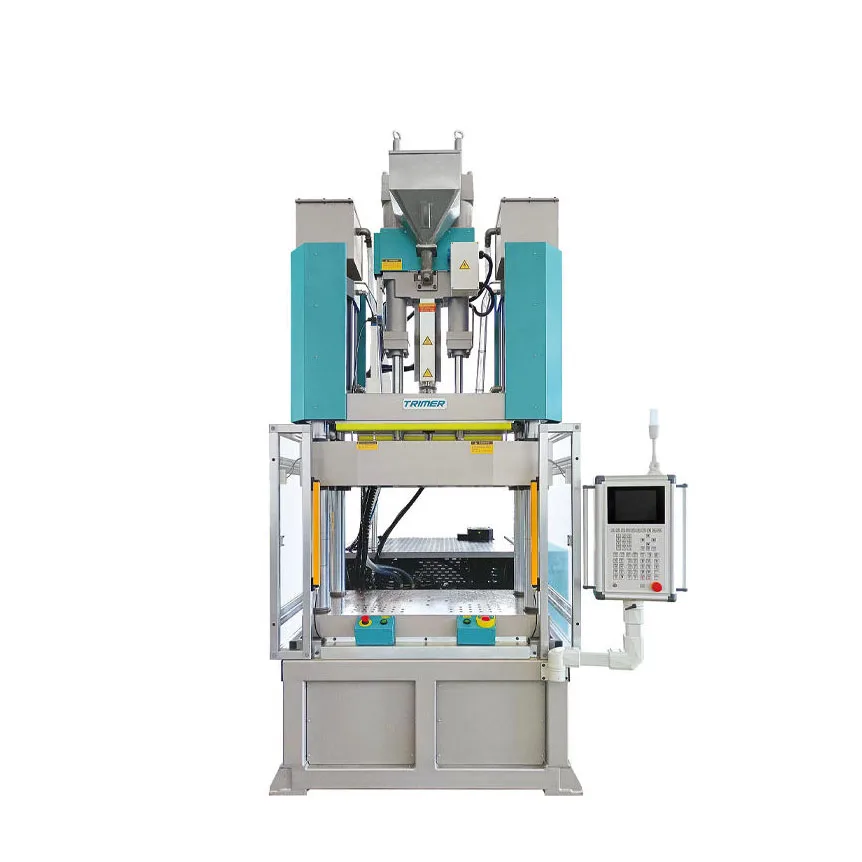

Servo Vertical Injection Molding Machine
This hybrid vertical injection molding machine combines electric drive precision with hydraulic power stability, making it suitable for insert molding and high-efficiency production of ABS, PET and other engineering plastic products. The machine adopts an electric drive system fo
Specifications
- Structure
- Vertical
- Monitoring
- Real-time pressure monitoring
- Table Type
- Fixed / Sliding / Rotary (optional)
- Application
- Insert molding, plastic parts production
- Lubrication
- Automatic lubrication system
- Drive System
- Electric + Servo Hydraulic
- Machine Type
- Hybrid (Electric Injection + Servo Hydraulic Clamping)
- Ejector Force
- 80 kN
- Control System
- PLC with HMI
- Ejector Number
- 2
- Ejector Stroke
- 350 mm
- Injection Rate
- 80 g/s
- Machine Weight
- 1,200 kg
- Screw Diameter
- 120 mm
- Installed Power
- 11 kW
- Injection Weight
- 30 g
- Mold Height Range
- 200–350 mm
- Mold Opening Stroke
- 350 mm
- Compatible Materials
- ABS, PET, PP, PVC, TPE, PA, POM and engineering plastics
- Plasticizing Capacity
- 30 g/s
- Theoretical Shot Volume
- 120 cm³
