Hydraulic Injection Molding Machine

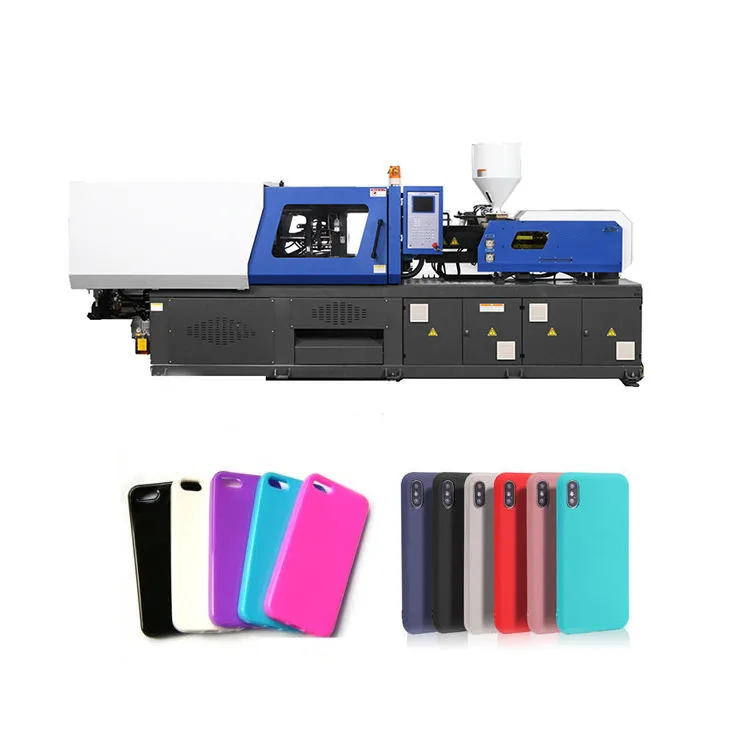

This hydraulic plastic injection molding machine is designed for stable and efficient production of thermoplastic parts such as mobile phone cases and consumer plastic components. Featuring a horizontal clamping structure and high-precision injection system, it supports materials
Specifications
- Heater
- 11 kW
- General
- kW Motor Power
- Shot Weight
- 240 g
- Clamping Unit
- kN Clamping Force
- Ejector Force
- 45 kN
- Nozzle Radius
- SR15 mm
- Pump Pressure
- 16 Mpa
- Ejector Stroke
- 140 mm
- Injection Unit
- mm Screw Diameter
- Machine Weight
- 5 T
- Opening Stroke
- 440 mm
- Screw L/D Ratio
- 23.6 L/D
- Injection Volume
- 264 cm3
- Machine Dimension
- 5.39×1.27×2.01 m
- Injection Pressure
- 228 Mpa
- Space Between Tie-Bars
- 470×470 mm
- Mould Thickness(Min-Max)
- 180-520 mm
- Mould Orientation Ring Diameter
- Φ125 mm
