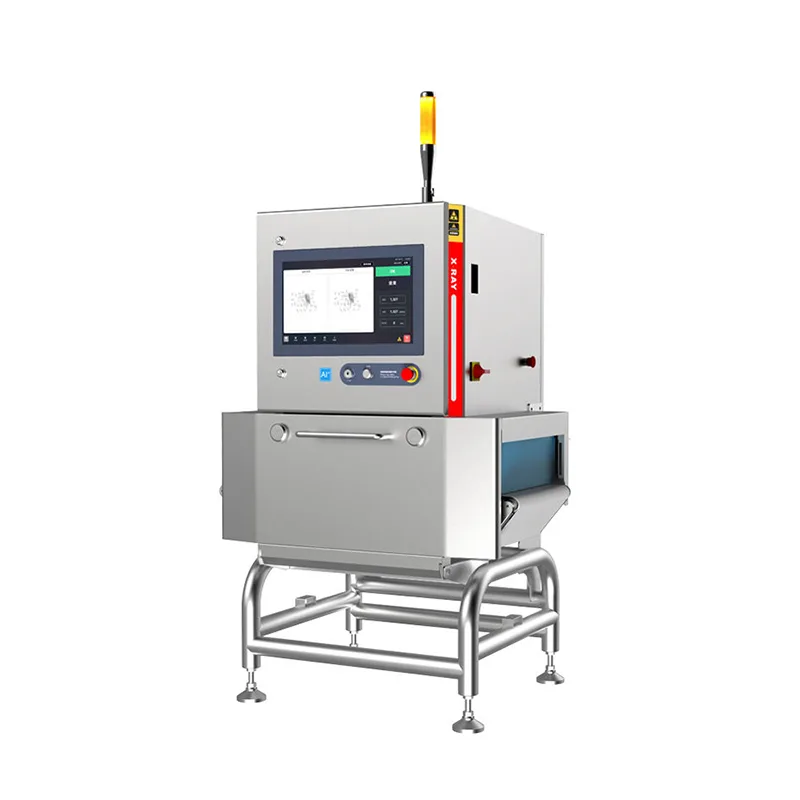

Conveyor Food X-Ray Inspection System
This industrial conveyor X-ray inspection system is designed for high-precision foreign object detection and intelligent defect identification in food processing lines. Equipped with advanced AI recognition algorithms, it provides accurate detection of metal, glass, stone, bone,
Specifications
- Model
- XS4016
- Display
- 21.5" Full-color Touch Screen
- Max Load
- 15 kg
- IP Rating
- IP65
- Alarm Mode
- Sound & light alarm, stop, reject (optional)
- Protection
- Removable soft curtain
- X-ray Power
- 480W
- Cooling Mode
- Industrial air conditioning
- Power Supply
- AC220V ±10%, 50/60Hz
- X-ray Leakage
- ＜1 μSv/hour
- Conveyor Speed
- 30–60 m/min
- Conveyor Height
- 800 ± 50mm
- Detecting Width
- 400mm
- Detecting Height
- 160mm
- Machine Material
- SUS304
- X-ray Tube Current
- 2000–5000 μA
- X-ray Tube Voltage
- 30–80 kV
- Working Environment
- Temperature −10℃~40℃；Humidity 30%–90% (no frost)
- Supported Algorithms
- Foreign object detection / defect detection
- Detection Sensitivity
- SS Ball Φ0.3mm；Glass/Ceramic Ball Φ1.0mm
