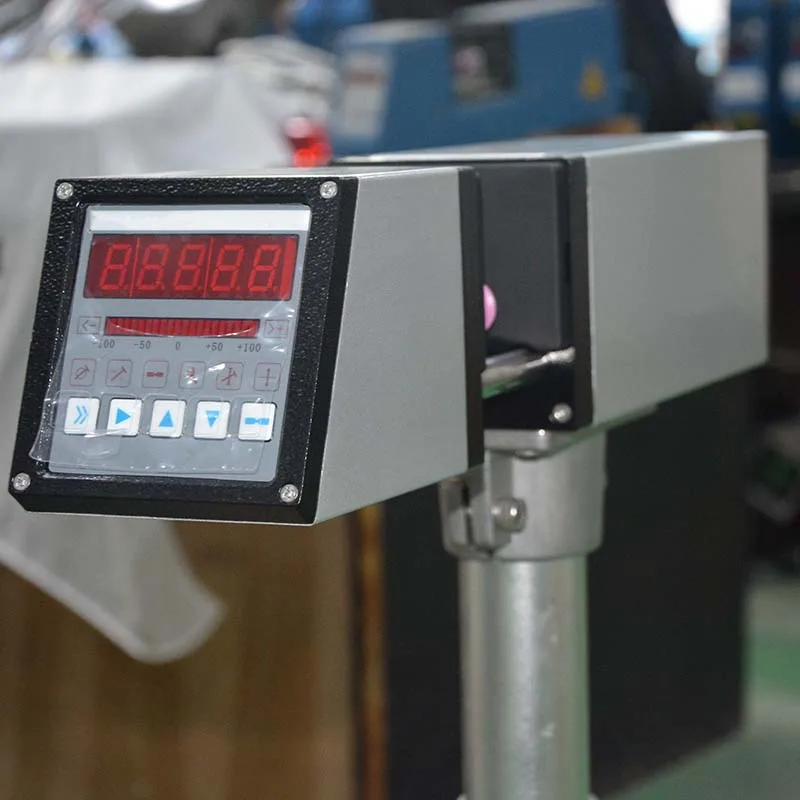

Laser Cable Diameter Gauge
This laser cable diameter measuring instrument is designed for real-time, high-precision inline monitoring of wire and cable outer diameter. It utilizes a high-speed infrared light source and advanced CCD digital imaging technology to achieve stable measurement performance and ex
Specifications
- Model
- DDM-3020
- Weight
- 11 kg
- Category
- Details
- Interface
- RS-485
- Scan Rate
- 1800 times/s
- Dimensions
- 100 × 100 × 432 mm
- Power Supply
- AC100–240 V, 50–60 Hz
- Center Height
- 850–1100 mm adjustable
- Power Consumption
- < 10 W
- Relative Humidity
- ≤90% (non-condensing)
- Measuring Accuracy
- ±(0.002 + 0.02%D)
- Operating Temperature
- 5–45°C
- Peripheral Communication
- Communication connector included
- Effective Measuring Range
- Max 20 mm
- Recommended Measuring Range
- 0.2–16 mm
