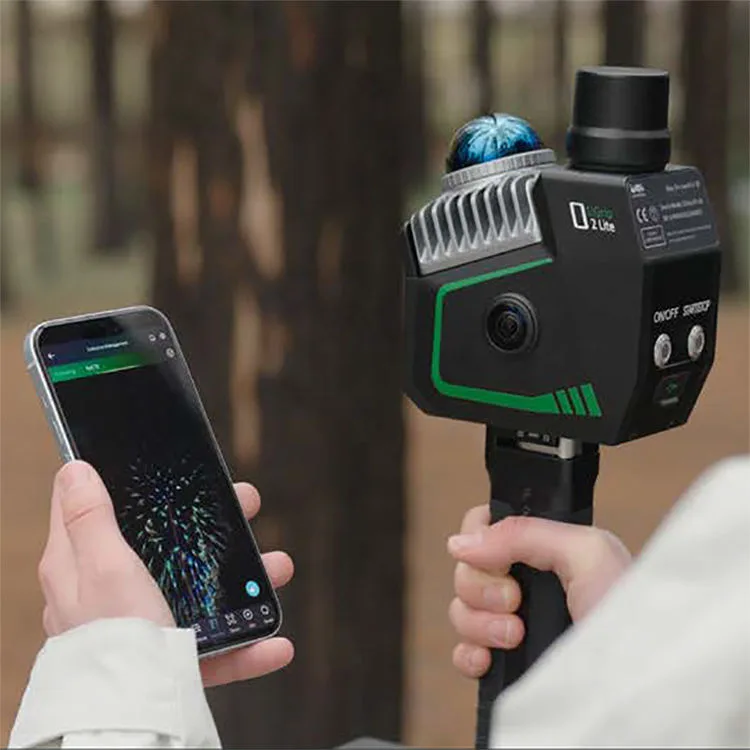

LiGrip O2 Lite 3D SLAM LiDAR Scanner
The LiGrip O2 Lite is a high-precision 3D SLAM LiDAR scanner designed for professional mapping, surveying, and spatial data acquisition. Equipped with a 360° LiDAR sensor, a multi-camera system, integrated RTK positioning, and onboard high-capacity SSD storage, it delivers centim
Specifications
- Port
- Type-C
- Weight
- 1.3 kg (with base, battery, RTK module)
- Parameter
- Value
- Scan Rate
- 200,000 pts/s
- Laser Model
- Mid360
- Power Supply
- Lithium Battery Powered
- Safety Level
- Class 1 (Eye-safe)
- Field of View
- Horizontal 360° ; Vertical -7° ~ 52°
- Control Method
- APP, Button
- LiDAR Accuracy
- 2 cm
- Visual Cameras
- 1.3 MP × 2
- Detection Range
- 40 m @ 10% reflectivity; 70 m @ 80% reflectivity
- Repeat Accuracy
- <2 cm
- Battery Capacity
- 3450 mAh
- Firmware Upgrade
- OTA, Offline
- Laser Wavelength
- 905 nm
- Protection Level
- IP64
- Storage Capacity
- 512 GB SSD
- Absolute Accuracy
- <3 cm
- Number of Cameras
- 4
- Panoramic Cameras
- 12 MP × 2
- Relative Accuracy
- <2 cm
- Single Battery Life
- 2 h
- Operating Temperature
- -20℃ ~ 40℃
- Horizontality/Verticality
- <0.025°
- Device Storage Temperature
- -40℃ ~ 70℃
- Recommended Storage Temperature
- 22℃ ~ 30℃
