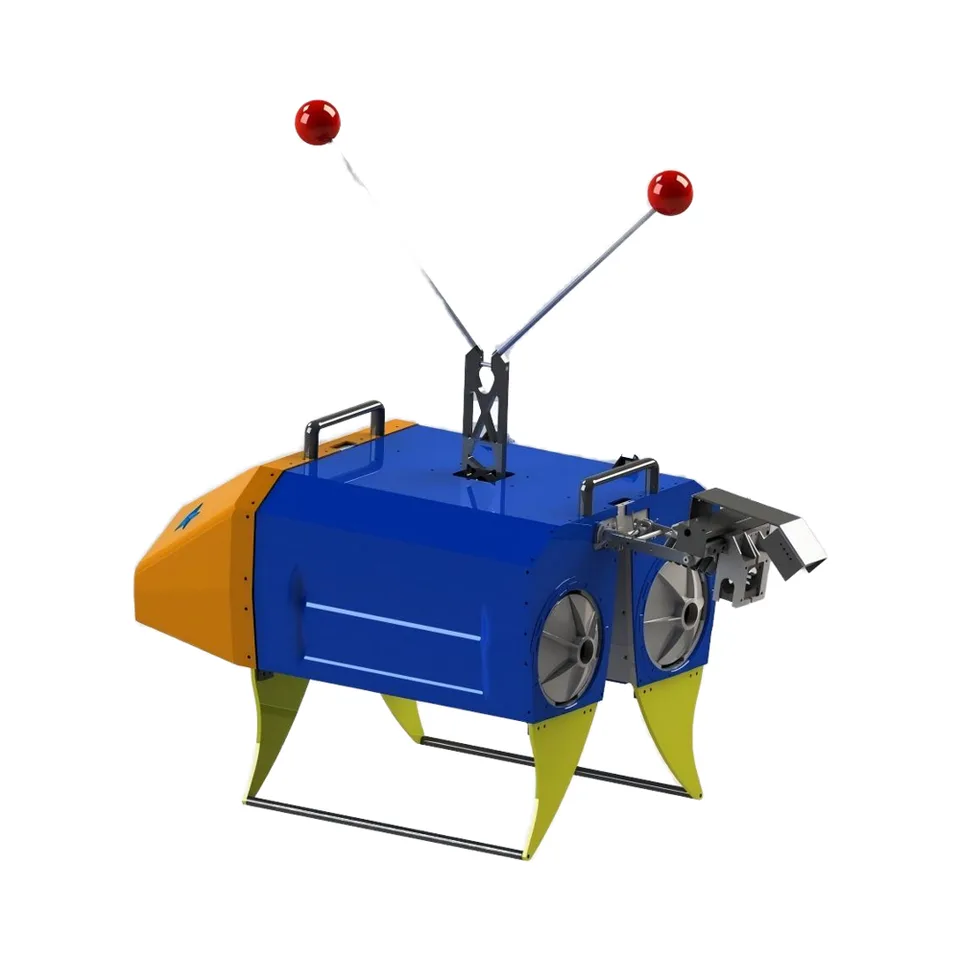

Live-Line Insulation Coating Robot
This live-line insulation coating robot is designed for continuous coating work on overhead conductors while maintaining power supply, significantly reducing downtime and improving operational efficiency. It supports a wide conductor diameter range, offers long endurance, and ena
Specifications
- Item
- Details
- Battery Life
- ≥4 hours
- Gradeability
- ≤30°
- Running Speed
- ≤10 m/min
- Model Structure
- Dual material cylinders (Ø125mm), left–right mold closing
- Unloaded Weight
- ≤25 kg
- Coating Thickness
- 1–6 mm
- Packaged Dimensions
- 700 × 425 × 310 mm
- Equipment Dimensions
- 900 × 425 × 820 mm
- Functional Configuration
- Hook-on indicator, HD video (2 channels), multi-speed adjustment, remote assistance
- Maximum Material Capacity
- 8 L (4 L × 2 cylinders)
- Applicable Conductor Range
- LGJ25/8 ~ LGJ250/40 (wire diameter 8.16–22.4 mm)
