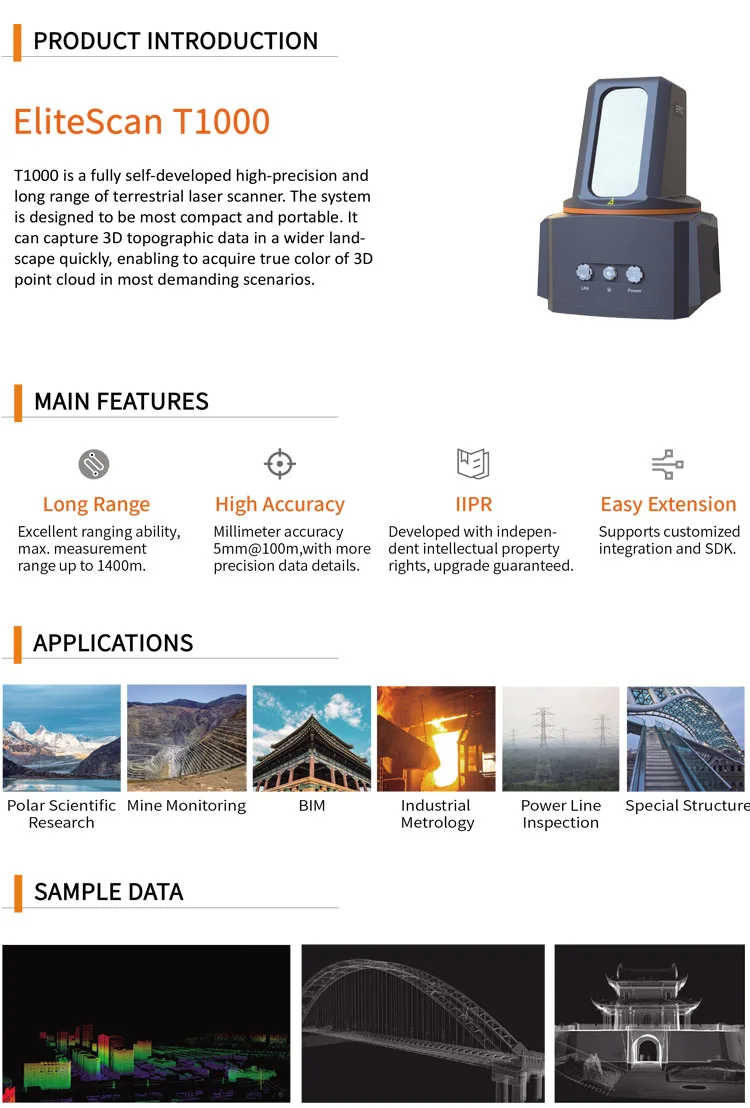

Long-Range Terrestrial 3D Laser Scanner

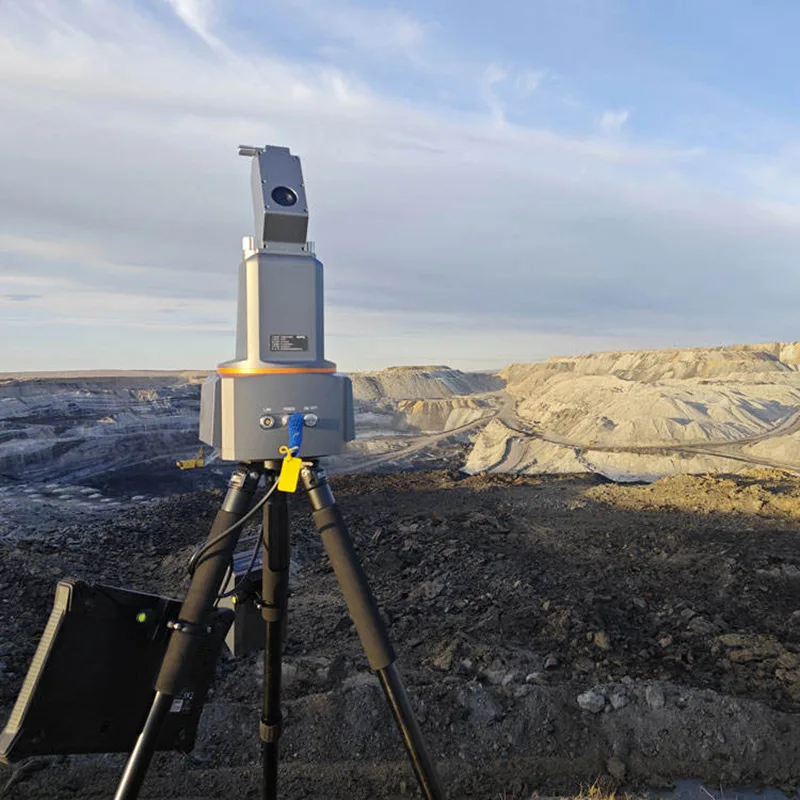

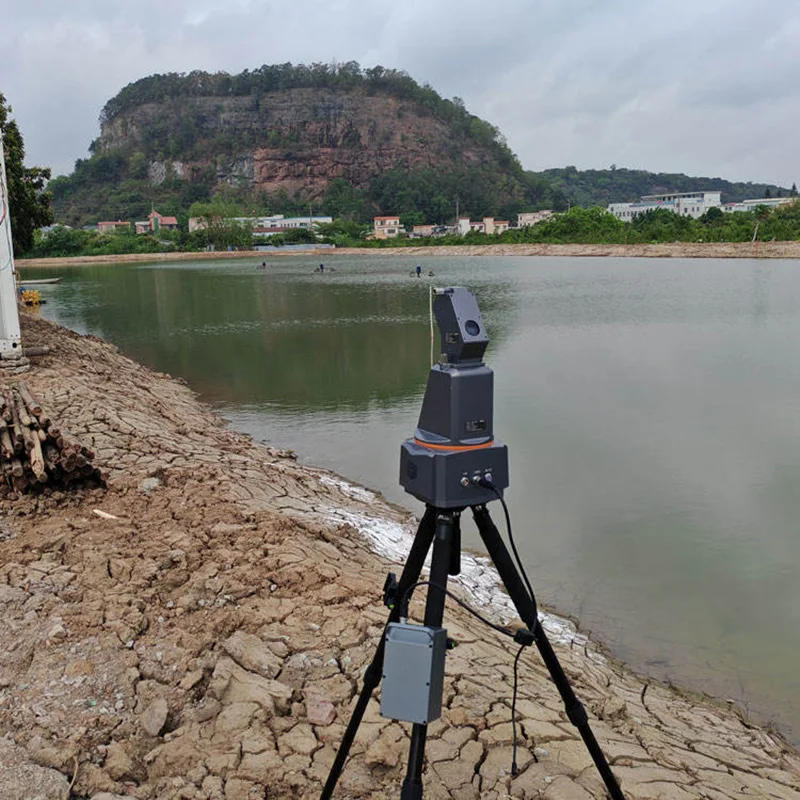

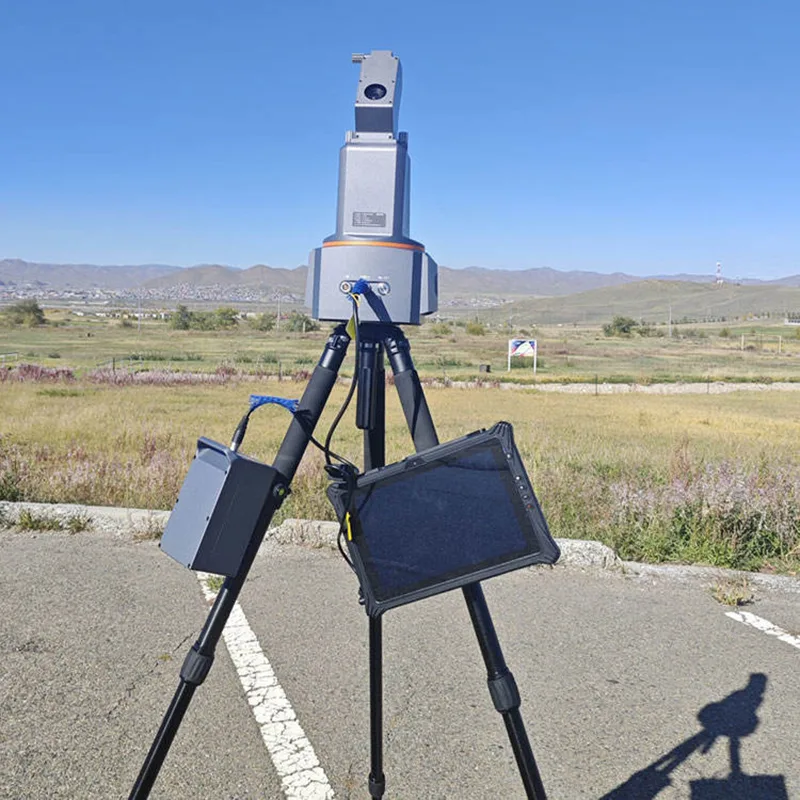

This long-range terrestrial 3D laser scanner is designed for large-scale outdoor data acquisition in mining, construction, and infrastructure projects. With ultra-long measurement capability and full 360° horizontal field of view, it enables rapid and accurate capture of terrain,
Specifications
- FoV
- 360°x110°
- Weight
- Approximately 680g
- Storage
- Built-in SD Card 128GB
- Accuracy
- 5mm@100m
- Humidity
- Non-condensing
- Expandable
- RTKMechanical Interface
- Scan Speed
- Vertical 3-150lines/sec
- Vertical FoV
- 100°(-40°~+60°)
- Horizontal FoV
- 360°
- Main Dimension
- L210xW163xH270mm
- System Parameter
- Weight
- Power Consumption
- Typical 50W
- Ranging Precision
- 3mm@100m
- Laser Scanning Unit
- Ranging Method
- Max.Measuring Range
- 1500m.3000m
- Min.Measuring Range
- 1.5m
- Storage Temperature
- -30℃~+60℃
- External Power Supply
- Input Voltage 18~33VDC
- Operating Temperature
- -20℃~+50℃
- Camera Unit (Optional)
- Effective Pixels
- Dual-axis Tilt Seneor Range
- ±5°
- Laser Pulse Repetition Rate
- 100~2000 kHz
- Angle Measurement Resolution
- 0.001°
- Data Communication Interface
- GigE
- Laser Product Classification
- Classl
