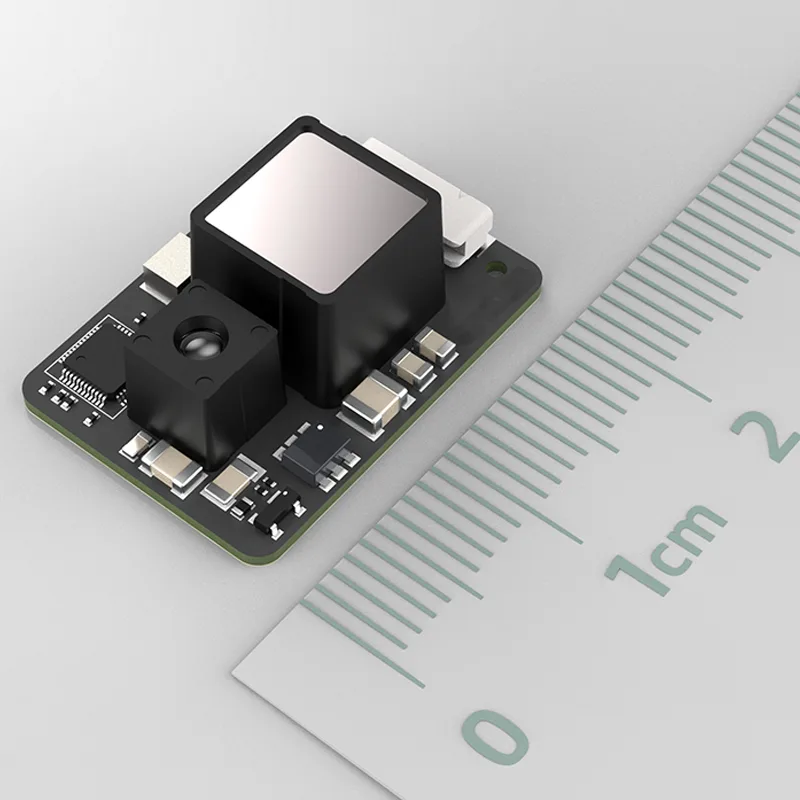

Micro LiDAR Ranging Module
The Low Power High Performance Micro LiDAR Ranging Module is a compact, lightweight, and high-precision dToF sensing solution designed for next-generation robotics, drones, smart devices, and industrial applications. Featuring a 20m maximum detection range, ±6cm high-accuracy per
Specifications
- Size
- 21x15x7.87mm3
- Weight
- ~1.35g
- Accuracy
- ±6cm(0.2~6cm),1%(≥6m)
- Frame rate
- 0/20/50/100(default)/250Hz
- Light source
- VCSEL
- Peak Current
- 115mA@3.3V
- Range Accuracy
- 2cm(0.2~6m)@1σ
- Supply Voltage
- DC 3.3±9%V
- Measuring Range
- 0.2- 20m @90%Reflectivity@0Klux，0.2-15m @90%Reflectivity@100Klux
- Protection grade
- Not have
- Center wavelength
- 905nm
- Hardware interface
- 0.8mm-6P (Model: WF08006-01207)
- Laser safety level
- Class 1 Eye-safe (EN60825)
- Communication level
- LVTTL (3.3V)
- Field of view angle
- <2°
- Storage temperature
- -40℃~+85℃
- Operation temperature
- -20℃~+60℃
- Average power consumption
- ≤0.35W
- Ability to resist environmental light
- 100Klux
