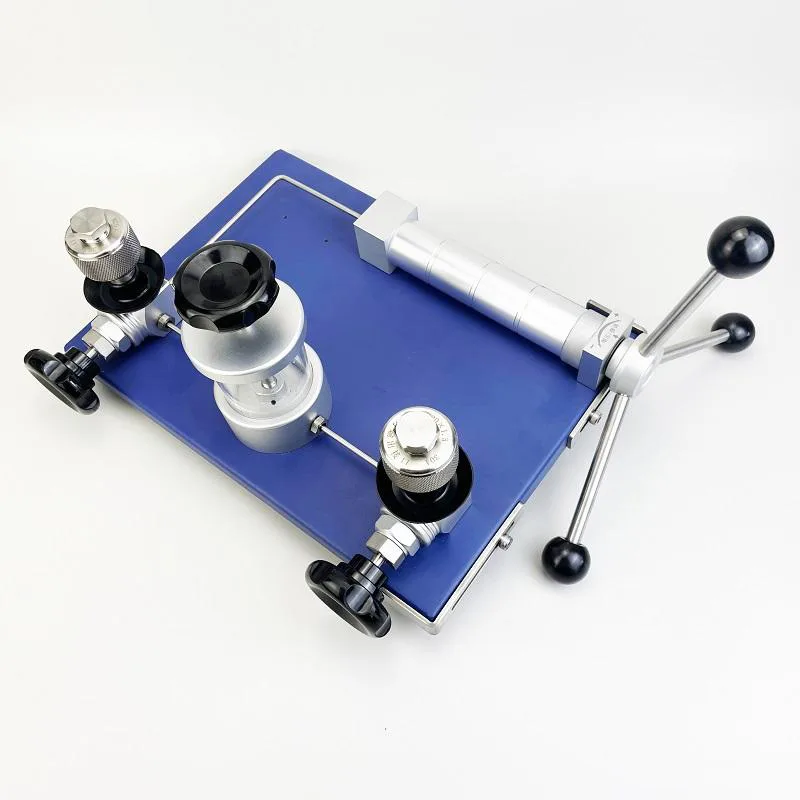

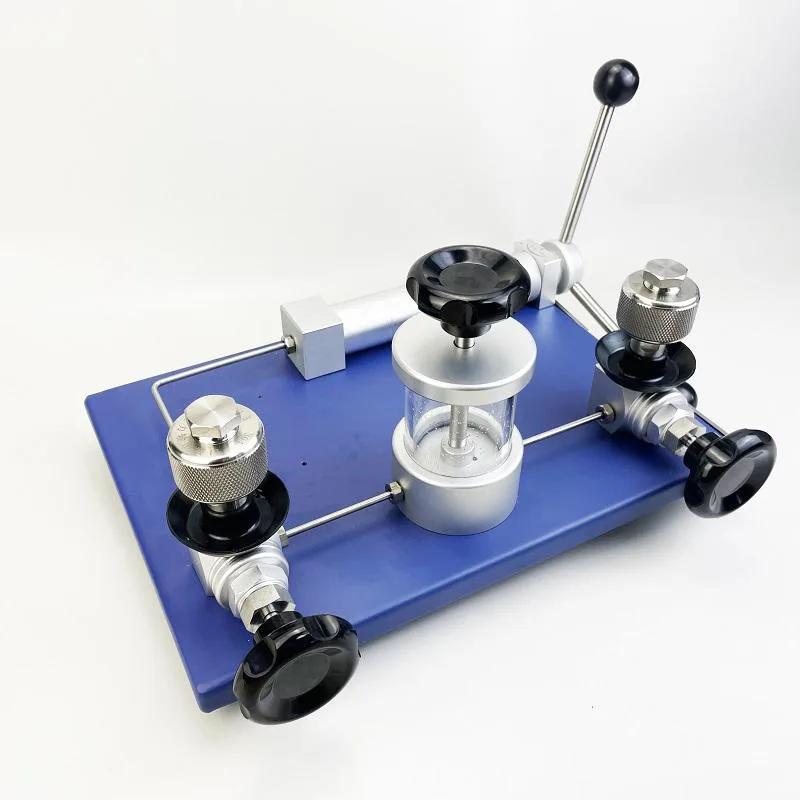

Manual Pressure Calibration Pump
This manual pressure pump tester is designed for accurate pressure calibration of gauges, transmitters, and pressure instruments. Using water or special calibration oil as the pressure medium, it provides stable output, fine pressure adjustment, and a wide pressure range up to 60
Specifications
- Weight
- 5.24 kg
- Category
- Details
- Dimensions
- 375 × 290 × 205 mm
- Reservoir Cup
- Holds pressure medium
- Pressure Range
- 0–10 / 16 / 25 / 40 / 60 MPa
- Pressure Medium
- Pure water or special calibration oil
- Auxiliary Bracket
- Enhances calibration table stability
- Standard Interface
- M20 × 1.5 (reference gauge connection)
- Test Pressure Port
- M20 × 1.5
- Fine Adjustment Wheel
- Precise pressure increase/decrease
- Operating Temperature
- 0–50°C
- Output Shut-off Valve
- Connect/disconnect pressure test interface
- Pressure Relief Valve
- Releases pressure safely
