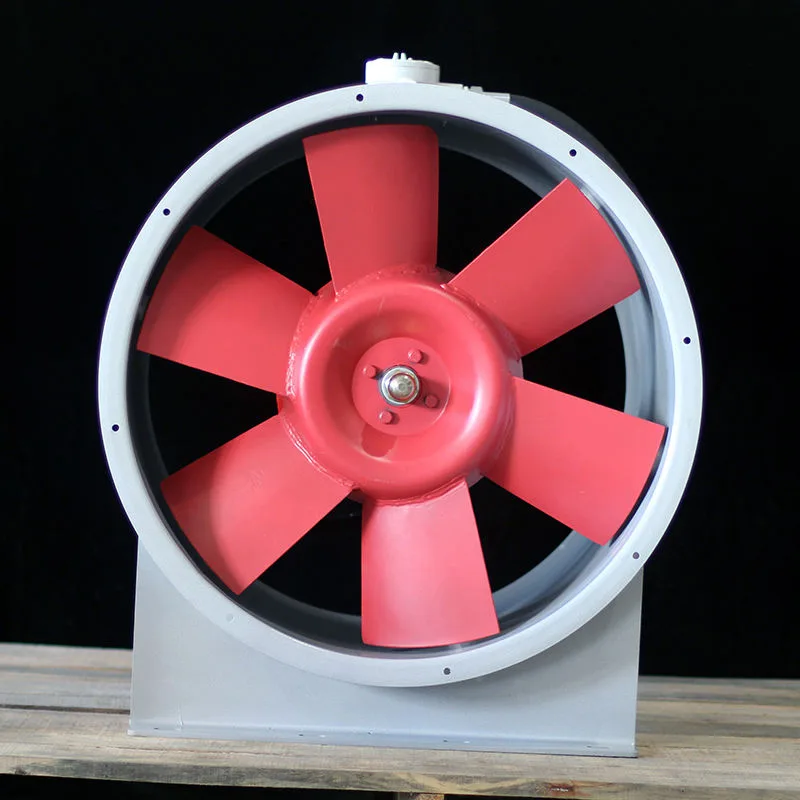

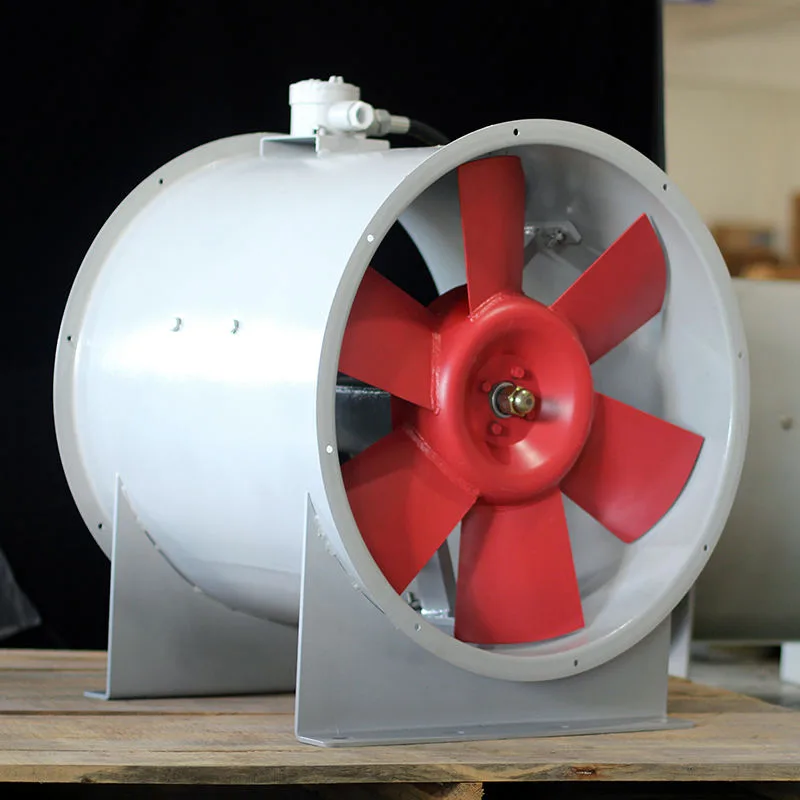

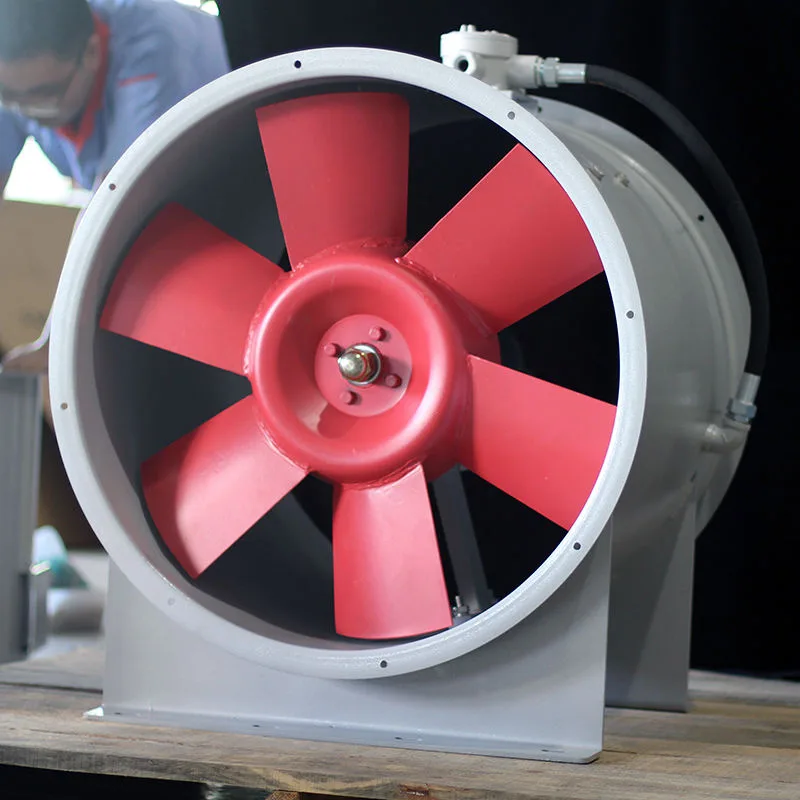

18.5kW Explosion-Proof Fire Exhaust Fan
This explosion proof mixed flow exhaust fan is designed for fire exhaust, air circulation, and ventilation in hazardous and explosive environments. Using oblique flow meridian acceleration and three-dimensional aerodynamic design, the fan delivers high efficiency, large airflow,
Specifications
- Speed
- Customizable
- Fan Type
- Explosion-Proof Axial / Mixed Flow Fan
- Function
- Air Circulation / Exhaust Ventilation
- Warranty
- 3 Years
- Motor Power
- 18.5 KW
- Bearing Type
- Ball Bearing
- Power Source
- Electric
- Product Type
- Explosion Proof Mixed Flow Exhaust Fan
- Rated Voltage
- AC 220V / AC 380V
- Blade Diameter
- 12 – 56 Inches
- Blade Material
- Aluminum Alloy
- Applicable Zones
- Zone 1, Zone 2, Zone 21, Zone 22
- Housing Material
- Aluminum Alloy / Steel (Optional)
- Temperature Class
- T1 – T4
- After-sales Service
- Field Maintenance & Repair Service
- Cable Outer Diameter
- 10 – 14 mm
- Explosion Proof Mark
- Ex db IIC T4 Gb / Ex tb IIIC T135℃ Db
- Installation Methods
- Wall-mounted / Duct-mounted / Portable / Fixed
- Customization Support
- OEM / ODM / OBM
- Application Environment
- Indoor & Outdoor
- Corrosion Protection Level
- WF1 / WF2
