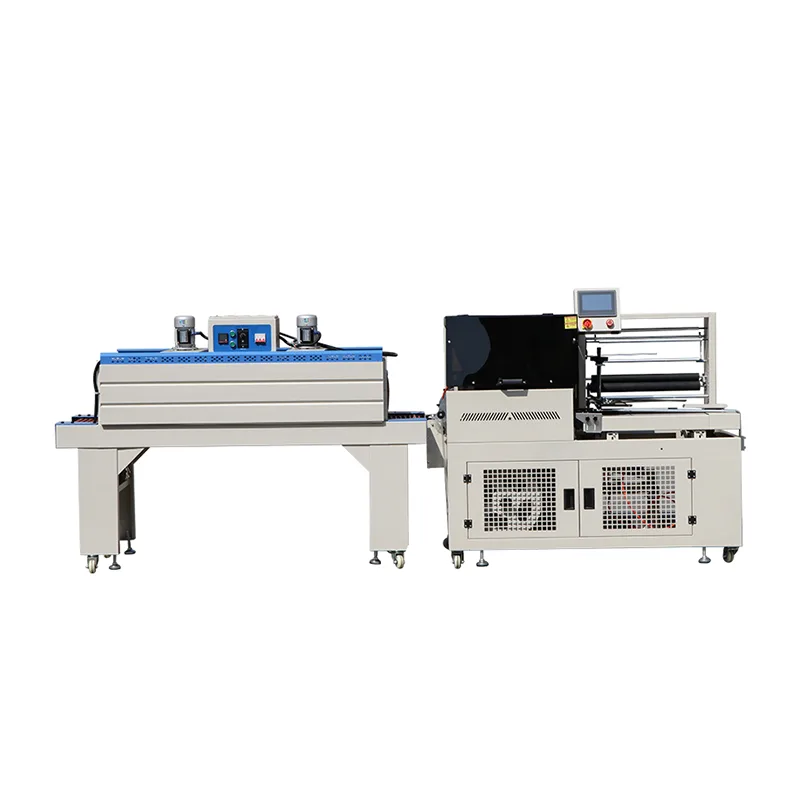

Edge-Sealing Heat Shrink Packaging Machine
This newly upgraded automatic sealing and cutting machine adopts a bottom-fed film design, greatly improving operational convenience. The low-position film loading mechanism makes film replacement faster, reduces downtime, and boosts overall production efficiency. Equipped with p
Specifications
- Model
- FQ450LX
- Power
- 2.2 kW
- Air Pressure
- ≥ 0.6 MPa
- Machine Size
- 1700 × 1070 × 1300 mm
- Power Supply
- AC 220V, 50/60 Hz
- Working Mode
- Online shrink packaging, continuous operation
- Machine Weight
- Approx. 250 kg
- Transport Load
- 15–20 kg
- Applicable Film
- POF / PE
- Packaging Speed
- 15–25 pcs/min
- Detection System
- Photoelectric automatic detection
- Max Packaging Size
- W+H ≤ 400 mm; L+H ≤ 500 mm; H ≤ 150 mm
- Sealing Knife Size
- Horizontal 470 mm × Vertical 570 mm
- Conveyor Belt Width
- 330 mm
- Film Feeding Method
- Bottom-fed film design
