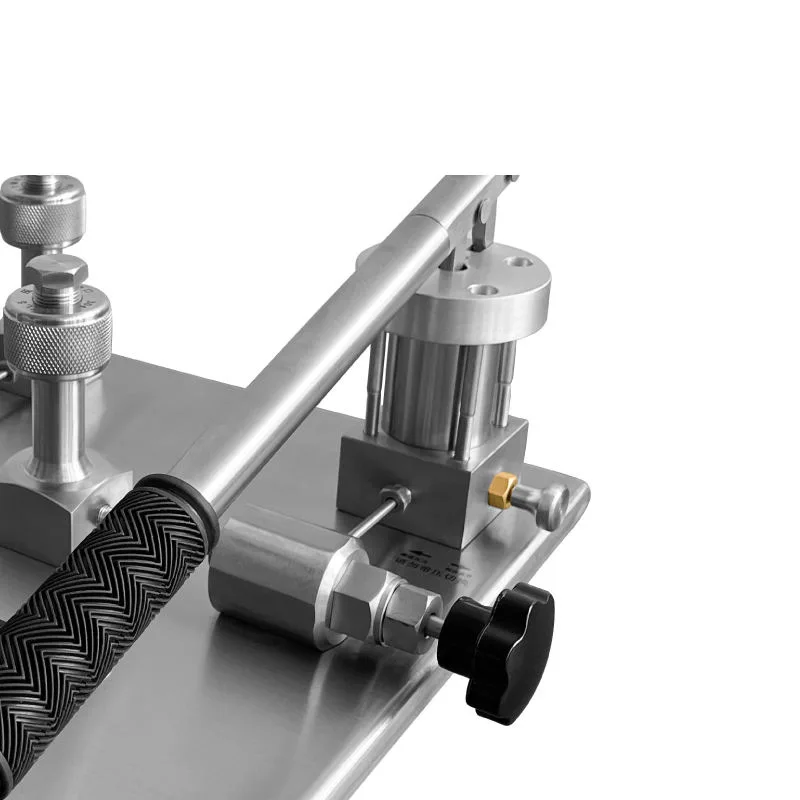

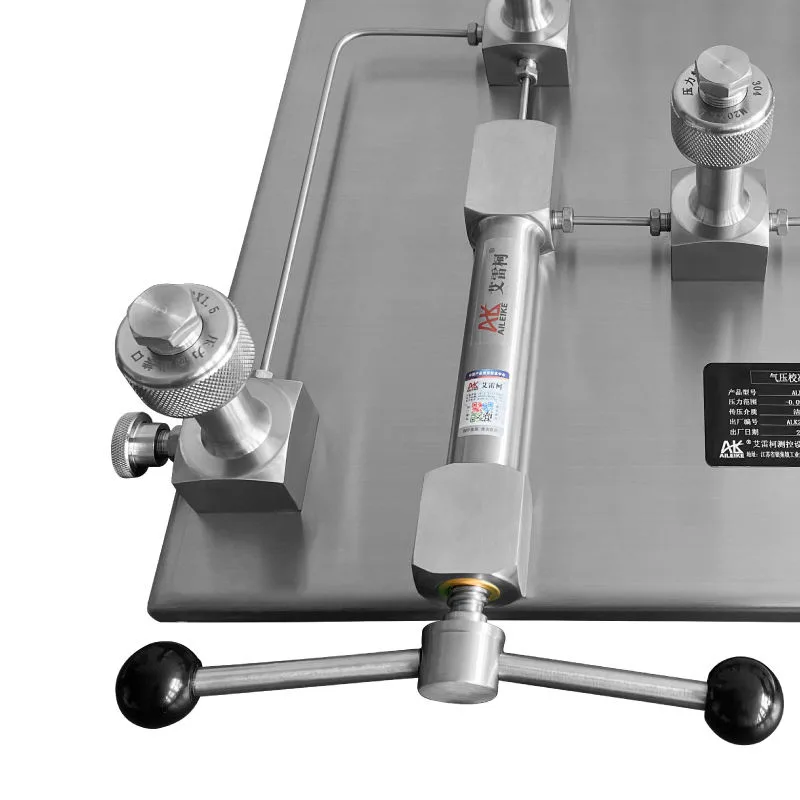

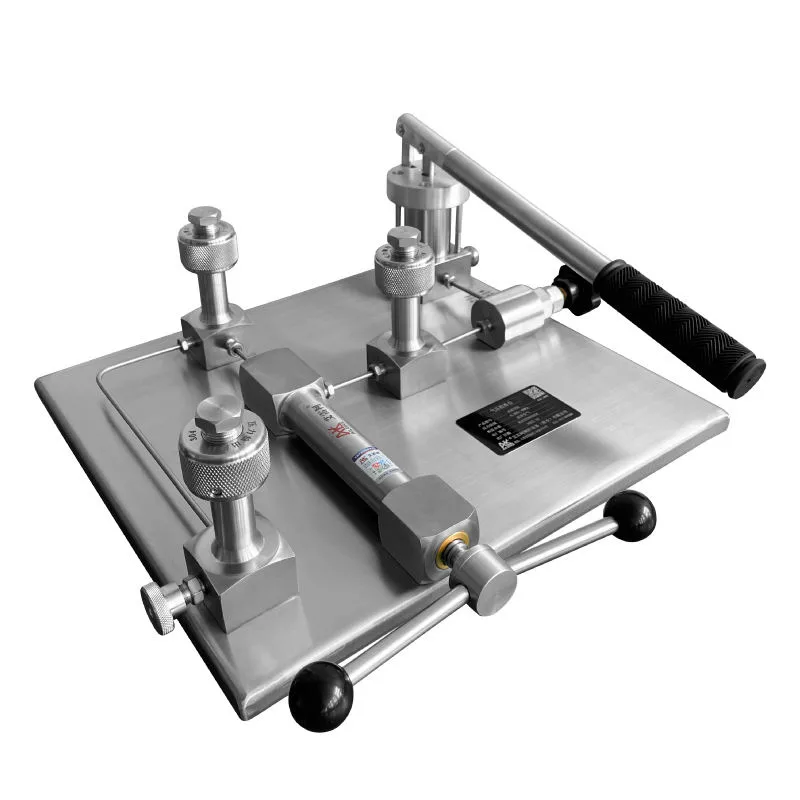

60bar Pressure Gauge Calibrator
This air pressure calibration table is designed for precise verification and calibration of pressure gauges, sensors, and pneumatic instruments. It offers a wide selectable pressure range from −0.95 to 60 bar, suitable for both vacuum and high-pressure applications. Featuring thr
Specifications
- Category
- Details
- Material
- Stainless steel (high corrosion resistance)
- Net Weight
- Approx. 11.7 kg
- Output Ports
- 3 ports
- Package Size
- 530 × 490 × 270 mm
- Product Size
- 450 × 410 × 190 mm
- Package Weight
- Approx. 13.8 kg
- Working Medium
- Clean air
- Measuring Range
- −0.95 to 60 bar / −13 to 870 psi / −0.095 to 6 MPa (selectable)
- Pressure Interface
- Standard: M20 × 1.5 (F), customizable
- Ambient Temperature
- −10°C to 60°C
- Standard Accessories
- Sealing rings ×3, plugs ×3, certificate, manual, warranty card
- Adjustment Resolution
- 10 Pa
- Pressurization Method
- Manual
