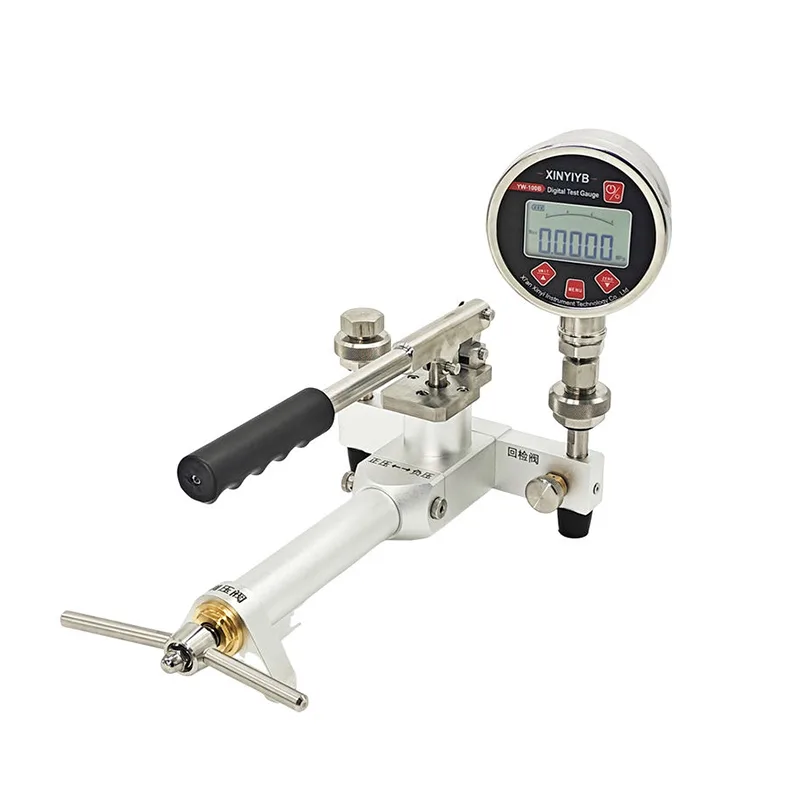

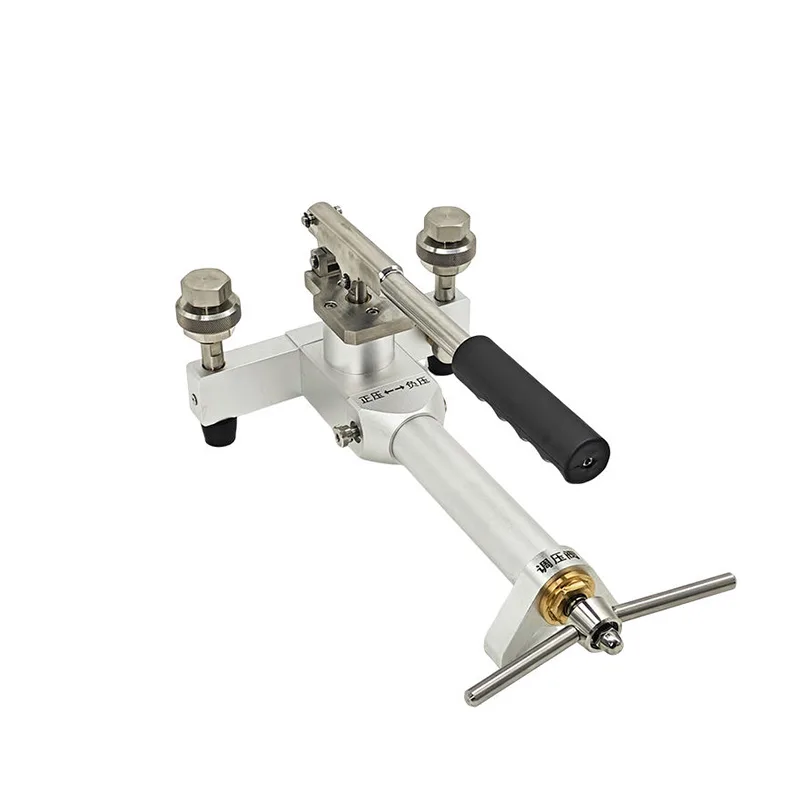

Portable Air Pressure Calibration Pump
This portable air pressure pump is designed for on-site and laboratory pressure calibration tasks. It provides a wide pressure range, stable pressure adjustment, and fine control down to 10Pa. The system features an open, easy-to-maintain structure with low leakage, smooth pressu
Specifications
- Weight
- 2.6 kg
- Category
- Details
- Dimensions
- 315 × 198 × 140 mm
- Maintenance
- Open structure, easy maintenance
- Design Feature
- Labor-saving pressure rod structure
- Pressure Range
- −0.095 MPa to 6 MPa
- Pressure Medium
- Air
- Usage Environment
- Laboratory or on-site calibration
- Operation Features
- Low leakage, stable pressure rise/fall
- Internal Components
- Gas-liquid separator, precision shut-off valve
- Pressure Connection
- M20 × 1.5 quick-connect internal threads (×2)
- Adjustment Resolution
- 10 Pa
