RC Crawler Underwater Rover

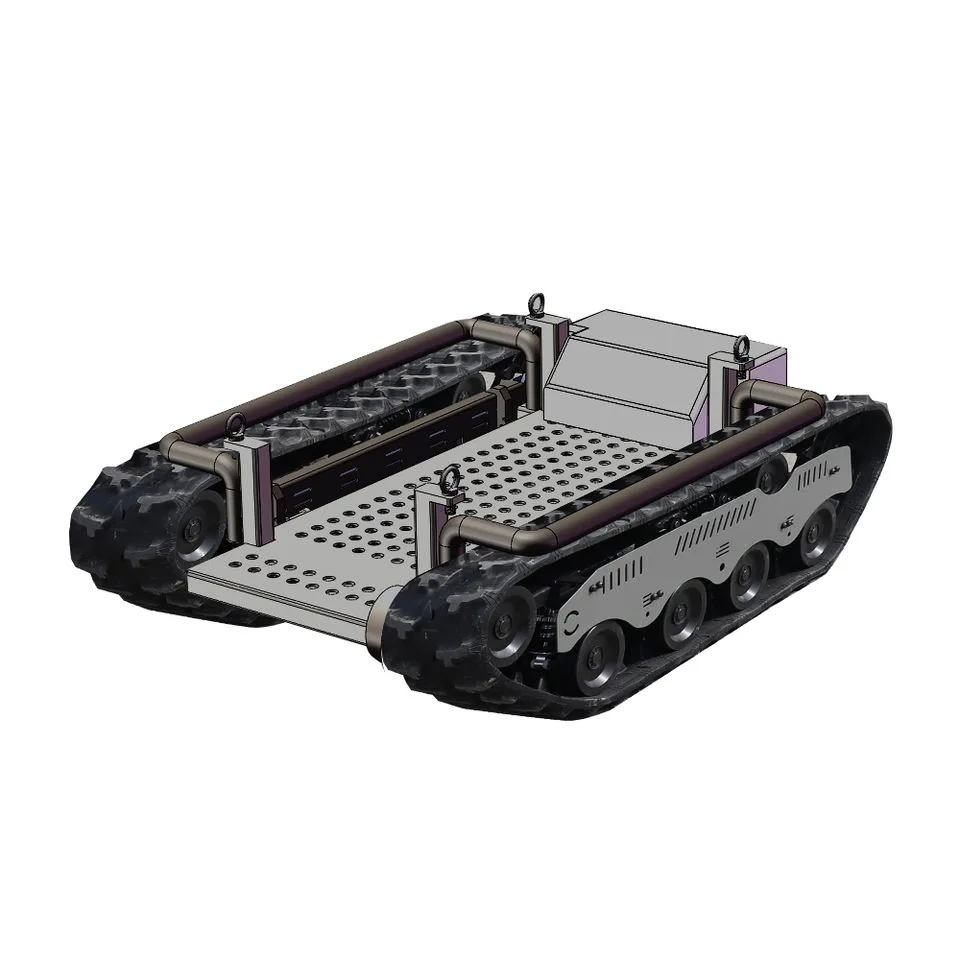

The Underwater Crawler Robot Rover is a compact, high-performance robotic platform designed for underwater inspection and engineering operations. With a fully sealed IP68 waterproof body, dual brushless motor drive, and high-torque track system, it provides stable and reliable mo
Specifications
- Item
- Description
- Speed
- 2 km/h
- Material
- Anti-corrosion metal structure with rust-proof coating
- Dimension
- 625 × 410 × 230 mm
- Drive Type
- Dual DC brushless motors
- Gear Ratio
- 01:30:00
- Application

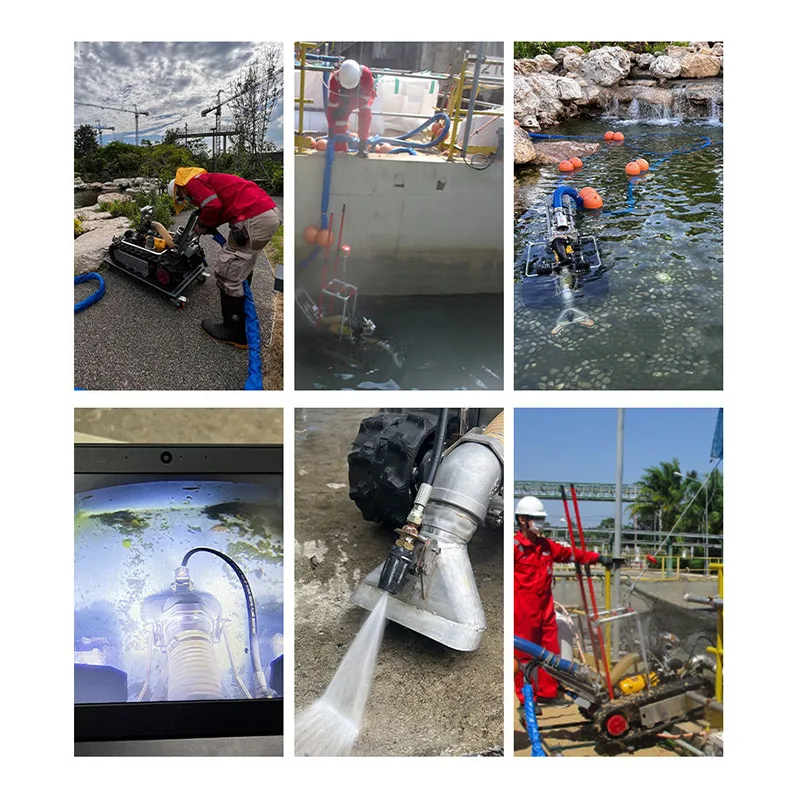

- Underwater inspection, dredging, maintenance, and industrial exploration
- Motor Power
- 200W × 2
- Self Weight
- 20 kg
- Track Width
- 80 mm
- Power Supply
- DC48V or external generator
- Product Name
- Rc Robot Crawler Robot Underwater Rover
- Product Type
- Underwater tracked robot chassis
- Rated Torque
- 35 N·m
- Load Capacity
- 30 kg
- Max Track Span
- 485 mm
- Climbing Ability
- ≤30° (supports stair climbing)
- Underwater Depth
- 50 m (customizable up to 200 m)
- Waterproof Level
- IP68
- Motor Rated Speed
- 3000 r/min
- Drive Wheel Diameter
- 95 mm

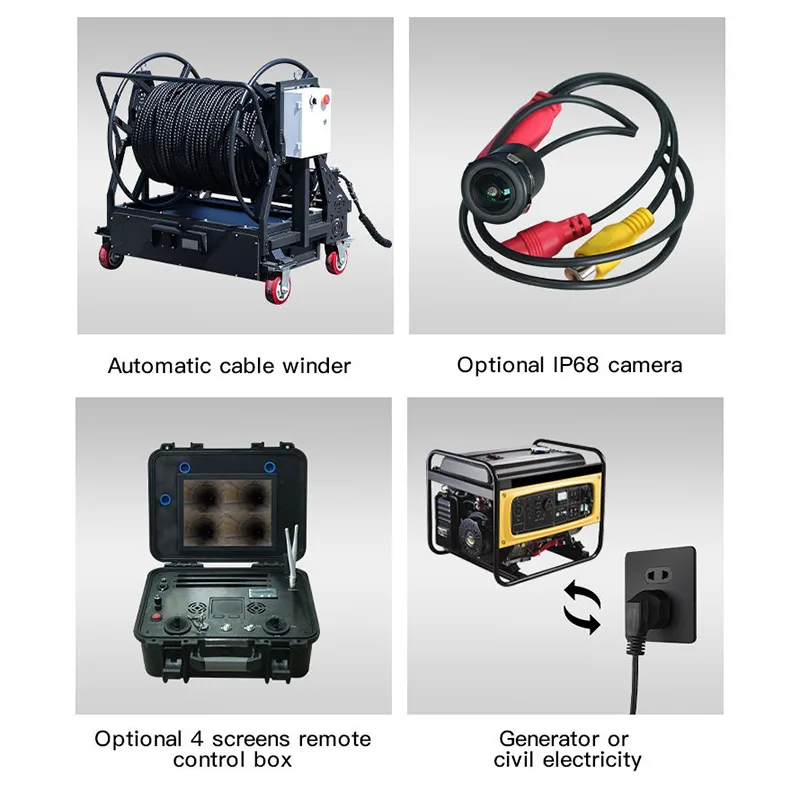

- Optional Accessories
- Underwater camera, mud pump, robotic arm, reamer, high-pressure water gun, automatic cable winder
- Cable Control Distance
- Standard 50 m, optional up to 600 m
