Laser Shaft Alignment System

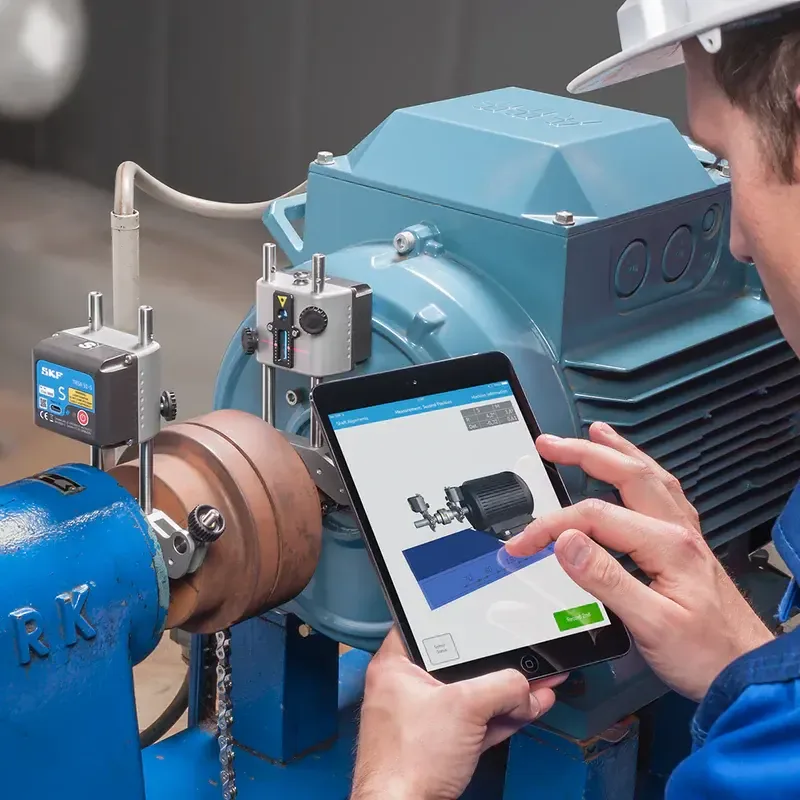

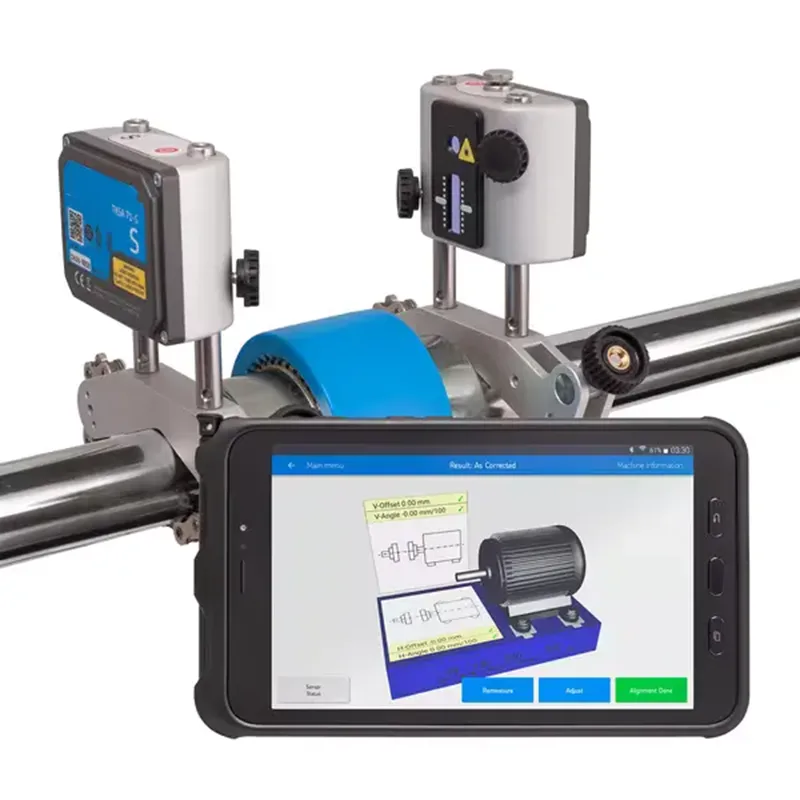

This laser axis alignment system is designed for precise alignment of rotating machinery, supporting both horizontal and vertical shaft configurations. Equipped with a high-accuracy line-laser sensor, inclinometer, and Bluetooth connectivity, the system enables fast measurements
Specifications
- Weight
- 190 g (0.4 lb)
- Fixture
- 2 × V-brackets with chains, width 15 mm (0.6 in.)
- IP rating
- IP 54
- Dimensions
- 52 × 64 × 50 mm (2.1 × 2.5 × 2 in.)

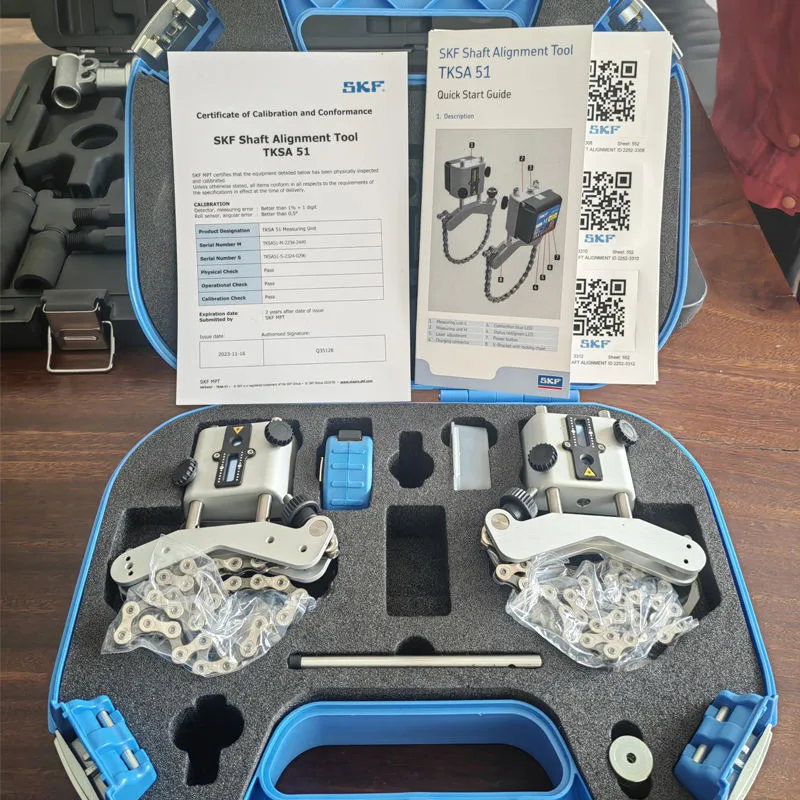

- Case content
- 2 measuring units (M&S)
- Power adapter
- Charging via micro USB port (5V)
- Extra features
- Machine library
- Operating time
- Up to 8 hours, rechargeable Li-ion battery fast charging: 10 min. charging for 1h usage
- Shaft diameters
- 20 to 150 mm (0.8 to 5.9 in.)
- Alignment method
- Alignment of horizontal and vertical shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 40掳 rotation), soft foot
- Housing material
- Anodized Aluminum front and PC/ABS plastic back cover
- Measuring errors
- <1% ±10 µm
- Operating device
- Samsung Galaxy Tab Active 2 and iPad Mini recommended
- Software/App update
- Apple AppStore or on Google Play Store
- Operating temperature
- 0 to 45 °C (32 to 113 °F)
- Live correction values
- Vertical and horizontal
- Max. coupling height *
- 45 mm (1.8 in.) with standard rods plus 170 mm (6.7 in.) per set of extension rods
- Calibration certificate
- Supplied with 2 years validity
- Carrying case dimensions
- 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
- Sensors and communication
- 20 mm (0.8 in.) PSD with line laser Class 2
- System measuring distance
- 0,07 to 5 m (0.23 to 16.4 ft)
- Total weight (incl. case)
- 2,9 kg (6.4 lb)
- Operating system requirements
- Apple iOS 9 or Android 9 (and above)
