Mini Air-Cooled Handheld Laser Welding Machine

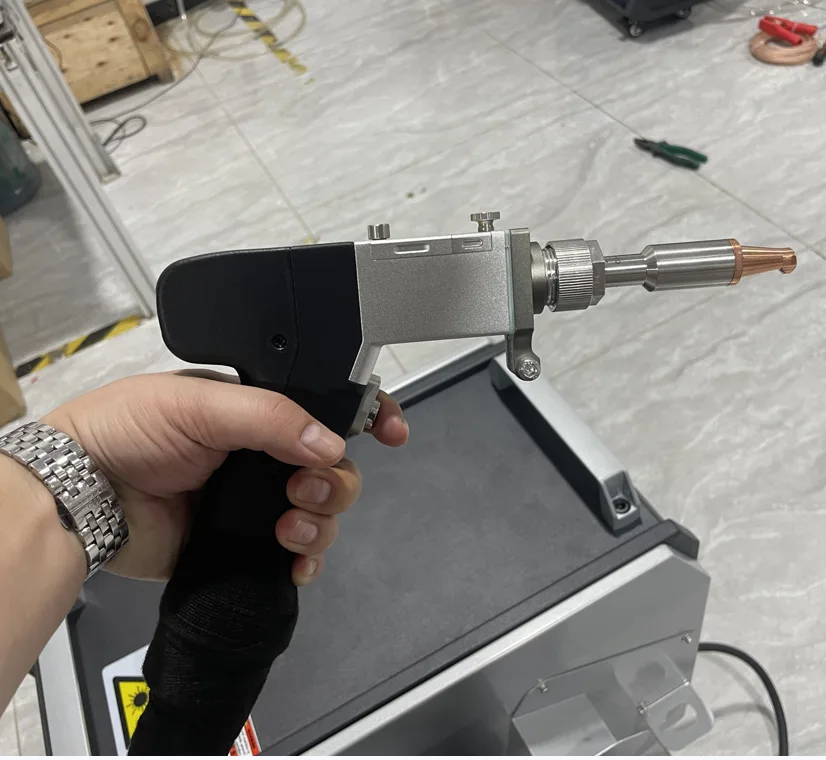

The Small Mini Air-Cooled Handheld Laser Welding Machine is a compact, lightweight metal welding solution designed for high-efficiency, precision, and mobility. Equipped with a stable continuous-wave fiber laser, adjustable power output, ergonomic handheld torch, and maintenance-
Specifications
- Working Mode
- Continuous
- Control Method
- Display / Host Computer
- Cooling Method
- Air Cooling
- Working Voltage
- 220V ± 10%, 50/60Hz
- Laser Wavelength
- 1080 ± 3 nm
- Output Interface
- QBH
- Fiber Armor Length
- Standard 5m (optional 10m)
- Machine Dimensions
- 585 × 377 × 540 mm
- Rated Output Power
- ≤1000W（Expended 1500W）
- Storage Temperature
- 0–60°C
- Working Environment
- 5–40°C, humidity compliant
- Aiming & Positioning
- Red Light
- Polarization Direction
- Random
- Output Power Instability
- < 3%
- Indicator Red Light Power
- >0.5 mW
- Maximum Power Consumption
- <3000W
- Output Fiber Core Diameter
- 20 μm (optional: 30 / 50 μm)
- Output Power Adjustment Range
- 10–100%
