4-Axis Delta Parallel Sorting Robot

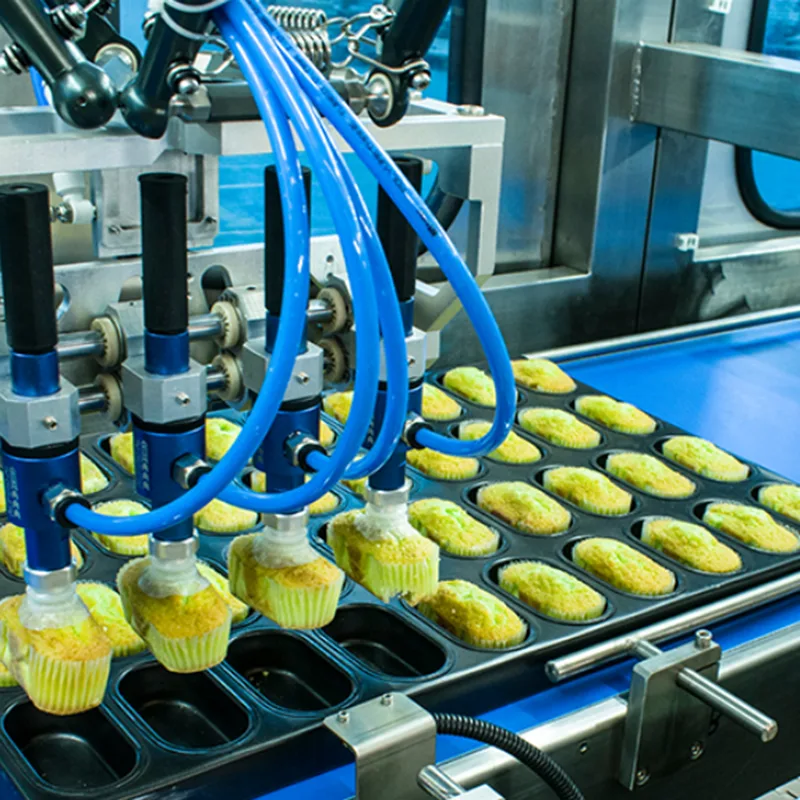

This high-speed parallel delta robot is designed for precise pick-and-place tasks in food production lines, especially for sorting pastries, cakes, desserts, and small packaged goods. Built with lightweight carbon fiber and aluminum alloy, it delivers exceptional speed, stability
Specifications
- Axes
- 4 axis (optional: 2 / 3 / 6 axis)
- Function
- High-speed pick & place
- Robot Type
- Parallel Delta Robot
- Maximum Load
- 3–5 kg
- Payload Range
- 0.5–3 kg
- Repeatability
- ±0.1 mm
- Certifications
- CE
- Motion Features
- Visual positioning / conveyor tracking
- Movable Diameter
- 400 mm / 800 mm
- Max Pick-Up Height
- 120 mm / 410 mm
- Structure Material
- Carbon fiber + aluminum alloy
- Suitable Industries
- Food processing, packaging, general manufacturing
- Angle Positioning Accuracy
- ±0.1°
