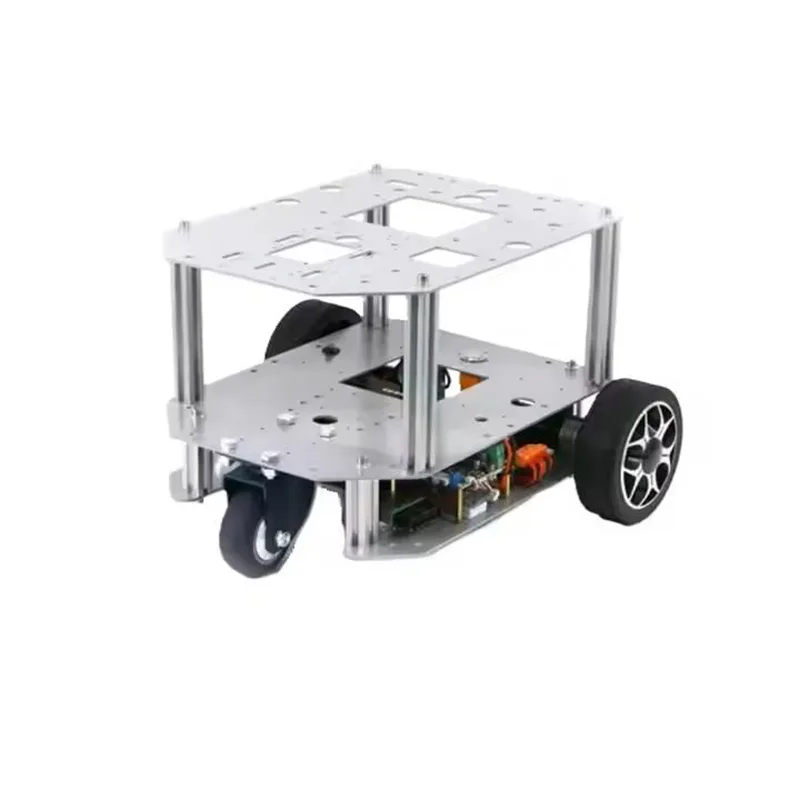

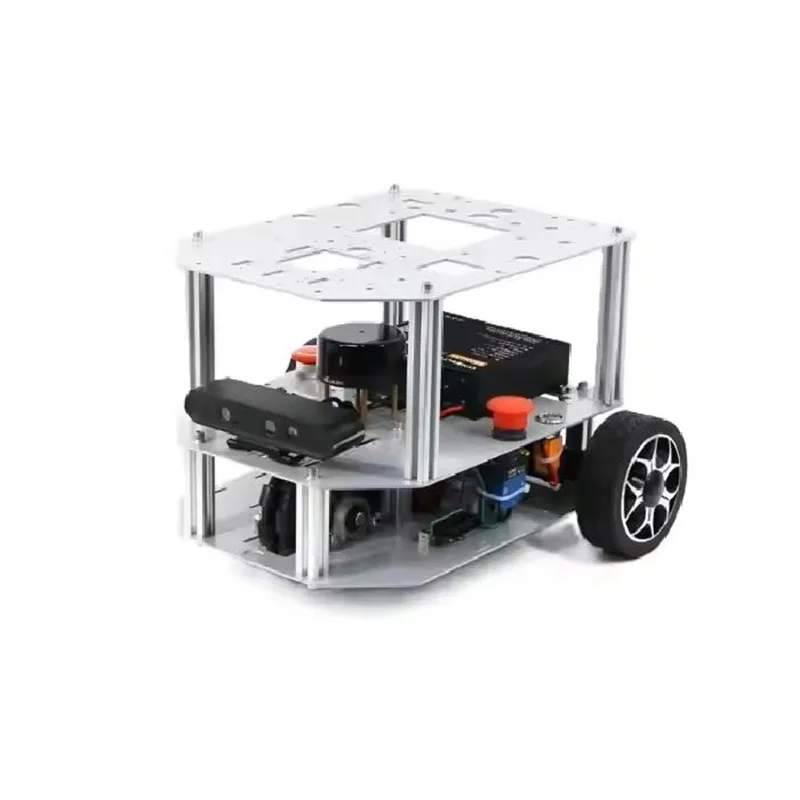

Differential-Drive AGV Robot Chassis
The Two-Wheel Differential AGV Chassis is a compact, lightweight mobile platform designed for autonomous navigation, research, and secondary development. Equipped with a high-precision encoder, DC gear motor, and independent suspension system, it ensures smooth motion, flexible m
Specifications
- Item
- Details
- Speed
- 0.82 m/s
- Warranty
- 3–6 months
- Drive Type
- Two-wheel differential drive
- Motor Type
- MD60 100W DC gear motor
- Self Weight
- 35.16 kg
- Battery Life
- 4.5 h (no load) / 3 h (max load)
- Encoder Type
- 500-line giant magnetoresistive AB high-precision encoder
- Power Source
- DC battery powered
- Product Type
- Two-Wheel Differential AGV Chassis
- Navigation Mode
- Autonomous / differential drive
- Steering Engine
- DS5160 60 kg torque digital servo
- Suspension System
- Four-wheel independent suspension shock absorption
- Rated Load Capacity
- 22 kg
- Motor Reduction Ratio
- 01:18:00
- Minimum Turning Radius
- 1.29 m
- Dimensions (L × W × H)
- 477.5 × 482 × 433 mm
- Obstacle Clearance Height
- 75 mm
