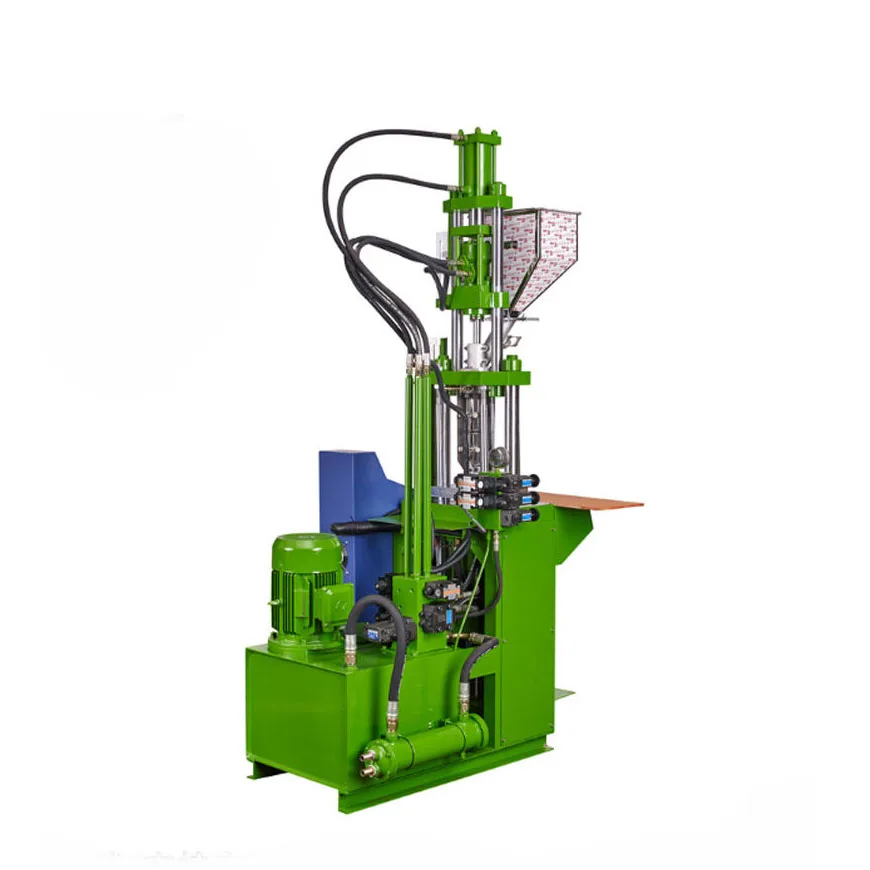

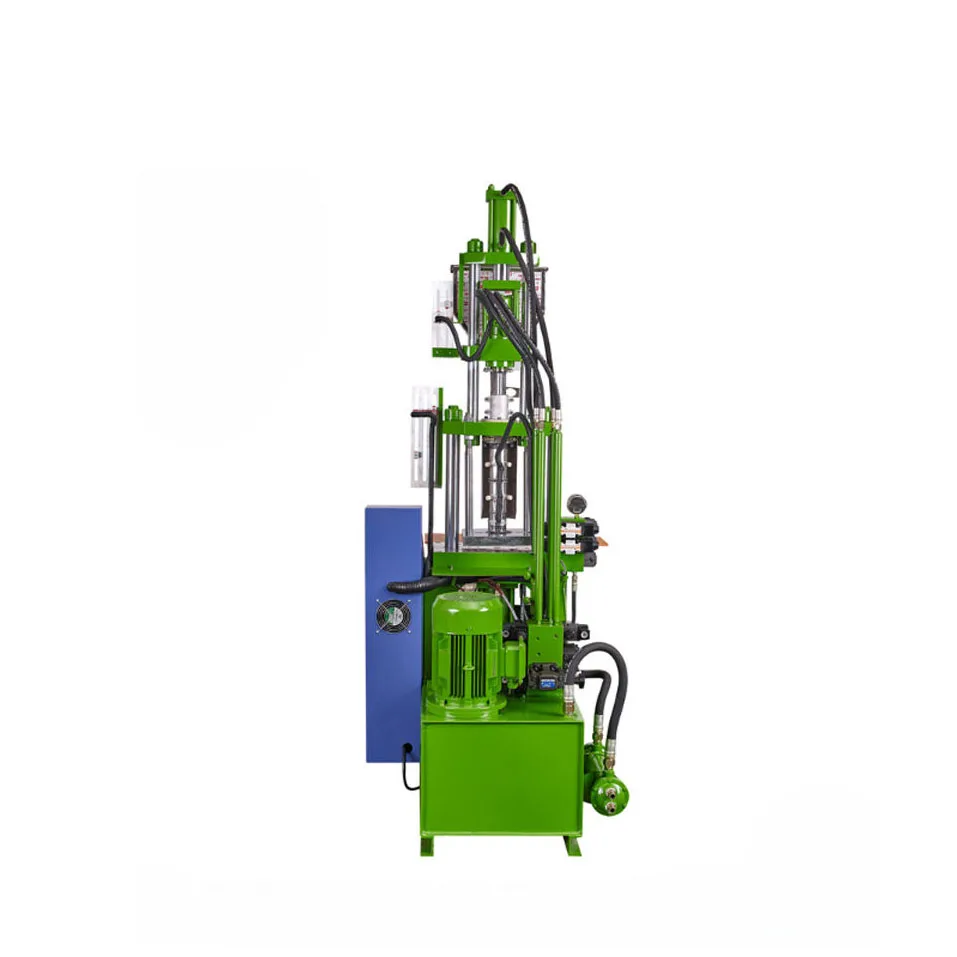

Vertical Electric Injection Molding Machine
This vertical electric injection molding machine is designed for precise and efficient molding of small plastic parts using materials such as ABS, PET, PP, PC and PVC. Featuring a compact vertical structure and electric drive system, it delivers stable injection performance with
Specifications
- Structure
- Vertical
- Application
- Insert molding, small plastic parts
- Screw Speed
- 30–50 rpm
- Drive System
- Electric
- Machine Type
- Electric
- Ejector Force
- 12.7 kN
- Control System
- PLC control
- Ejector Number
- 5
- Injection Rate
- 83 g/s
- Machine Weight
- 1,200 kg
- Mold Structure
- Fixed bottom mold, movable upper mold
- Operation Mode
- Automatic
- Screw Diameter
- 20 mm
- Installed Power
- 2.4 kW
- Injection Weight
- 84 g
- Compatible Materials
- ABS, PET, PP, PC, PVC
- Plasticizing Capacity
- 44 g/s
- Theoretical Shot Volume
- 10 cm³
