Inclined Belt Conveyor

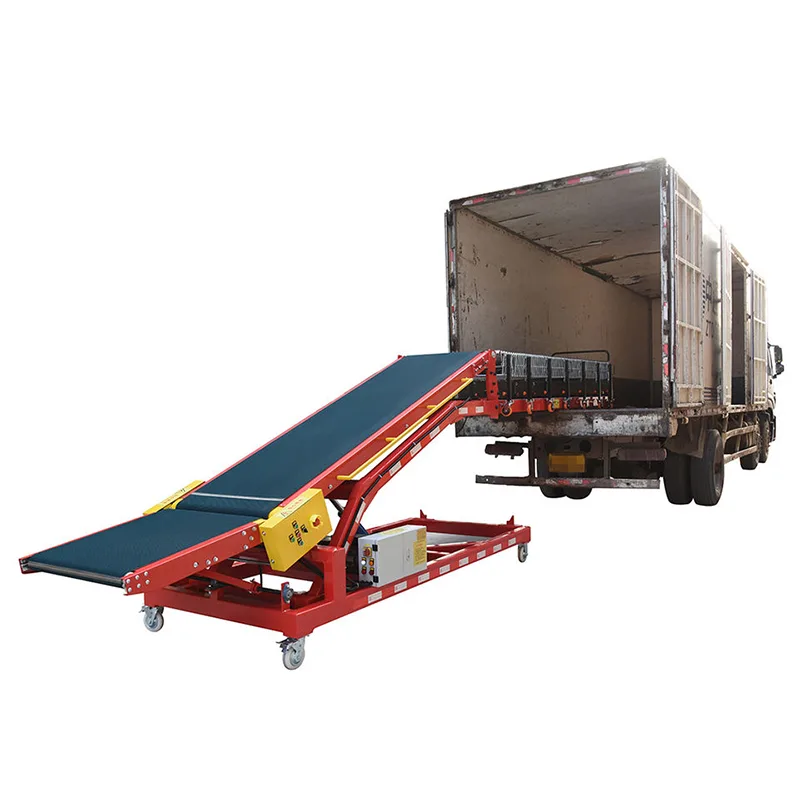

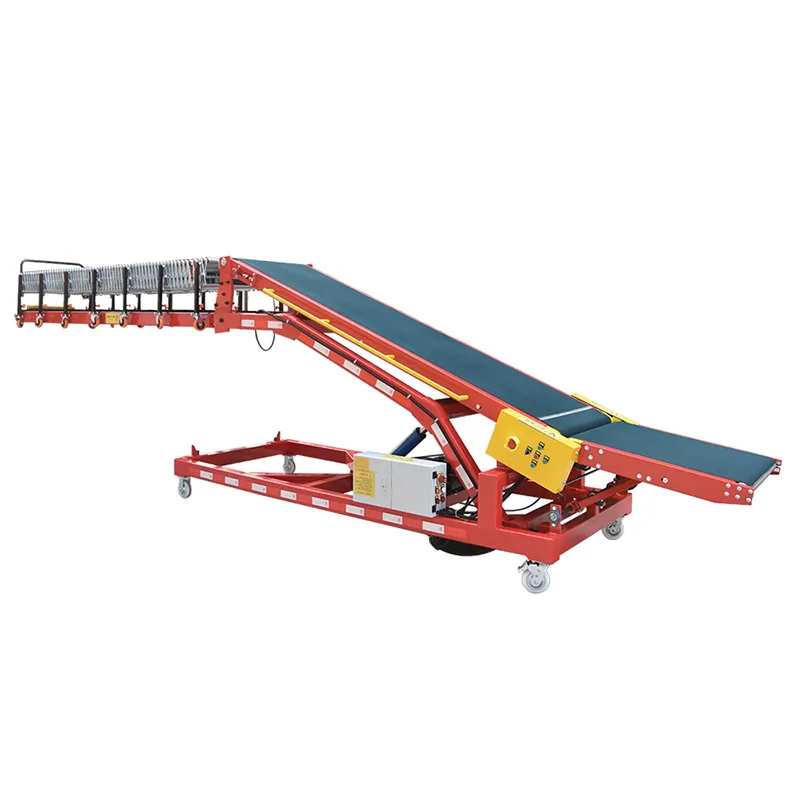

This industrial inclined belt conveyor is designed for efficient loading and unloading of trucks and shipping containers. Its heavy-duty structure, adjustable belt speed, and hydraulic lifting system enable smooth cargo flow while minimizing labor intensity. Suitable for 20ft and
Specifications
- Item
- Details
- Belt Speed
- 24 m/min (adjustable)
- Belt Width
- 700 mm
- Power Supply
- 380V, 1.5–3 kW
- Transmission
- Gear reduction motor
- Conveyor Type
- Container handling inclined belt conveyor
- Lifting Method
- Oil pump + rod lifting frame
- Machine Weight
- 1.5 tons
- Loading Capacity
- 60 kg per meter
- Tail Length (L1)
- 1000 mm
- Transport Direction
- Loading & unloading
- Unraised Height (H)
- 800 mm
- Front Support Height (H1)
- 1700 mm
- Climbing Section Length (L2)
- 3000 mm
