Water-Cooled Screw Chiller
This water-cooled screw industrial chiller is designed for large-capacity cooling applications requiring stable and precise temperature control. It is widely used in injection molding and other industrial processes where continuous chilled water supply is essential for maintainin
Specifications
- Weight
- Approx. 6800 kg
- Voltage
- 3 Phase / 380 V / 50 Hz (Customizable)
- Warranty
- 1 Year
- Application
- Injection Molding / Industrial Process Cooling
- Rated Power
- Approx. 200 kW
- Product Type
- Water-Cooled Screw Industrial Chiller
- Certification
- CE
- Control System
- PLC Control
- Cooling Method
- Water-Cooled
- Operation Mode
- Automatic

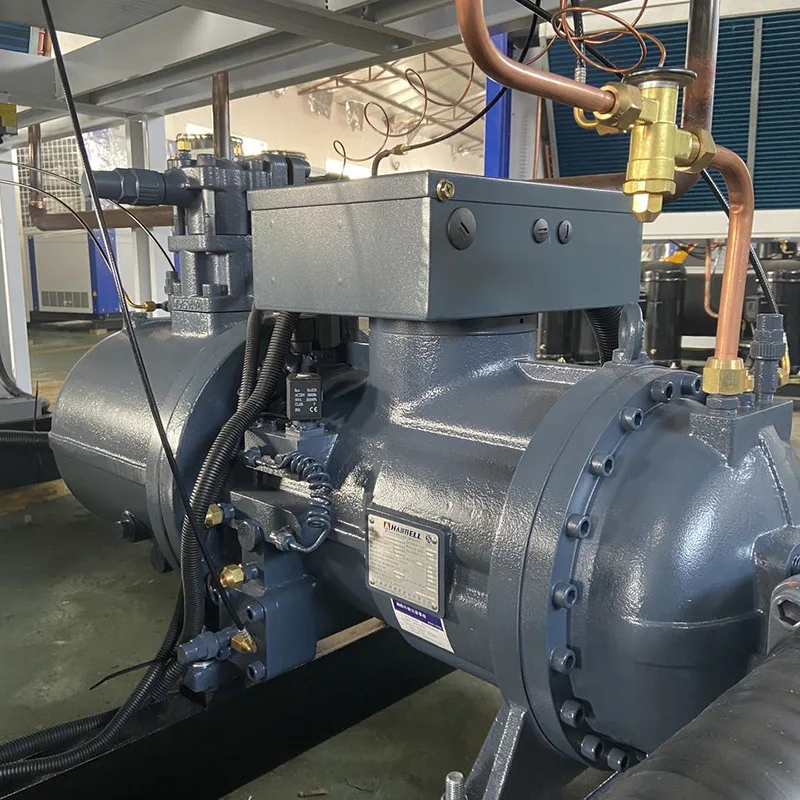

- Compressor Type
- Semi-Closed Screw Compressor
- Core Components
- Compressor, Motor, Pump, Pressure Vessel

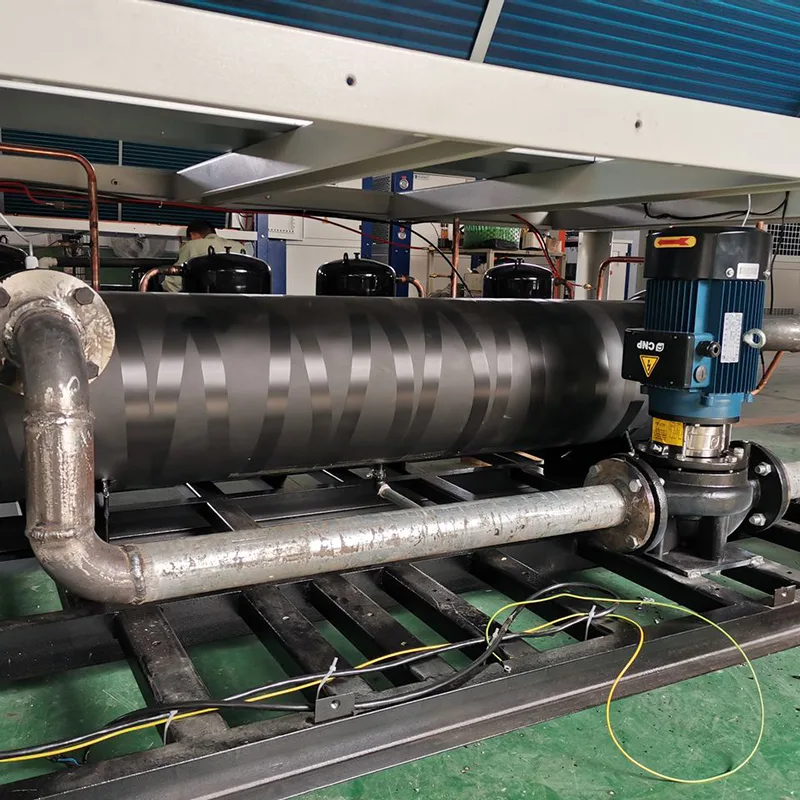

- Evaporator Type
- Shell-and-Tube
- Compressor Power
- 182 kW
- Cooling Capacity
- Approx. 614 kW
- Inspection & Test
- Factory Inspection Report Provided
- After-Sales Support
- Video Technical Support
- Refrigerant Options
- R22 / R134A / R407C / R410A / R513A
- Dimensions (L×W×H)
- 6680 × 2250 × 2460 mm
- Temperature Control Range
- 0 ℃ – 35 ℃
