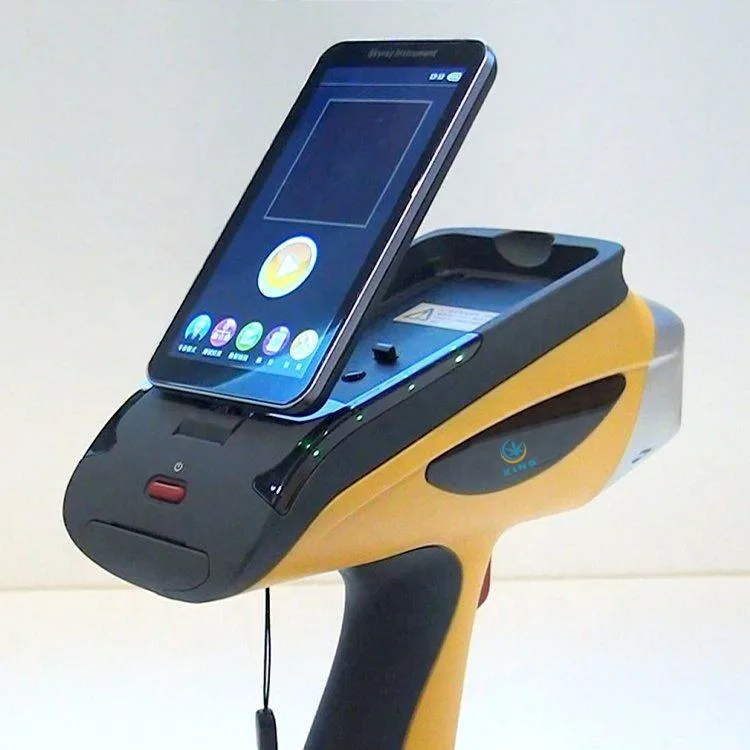

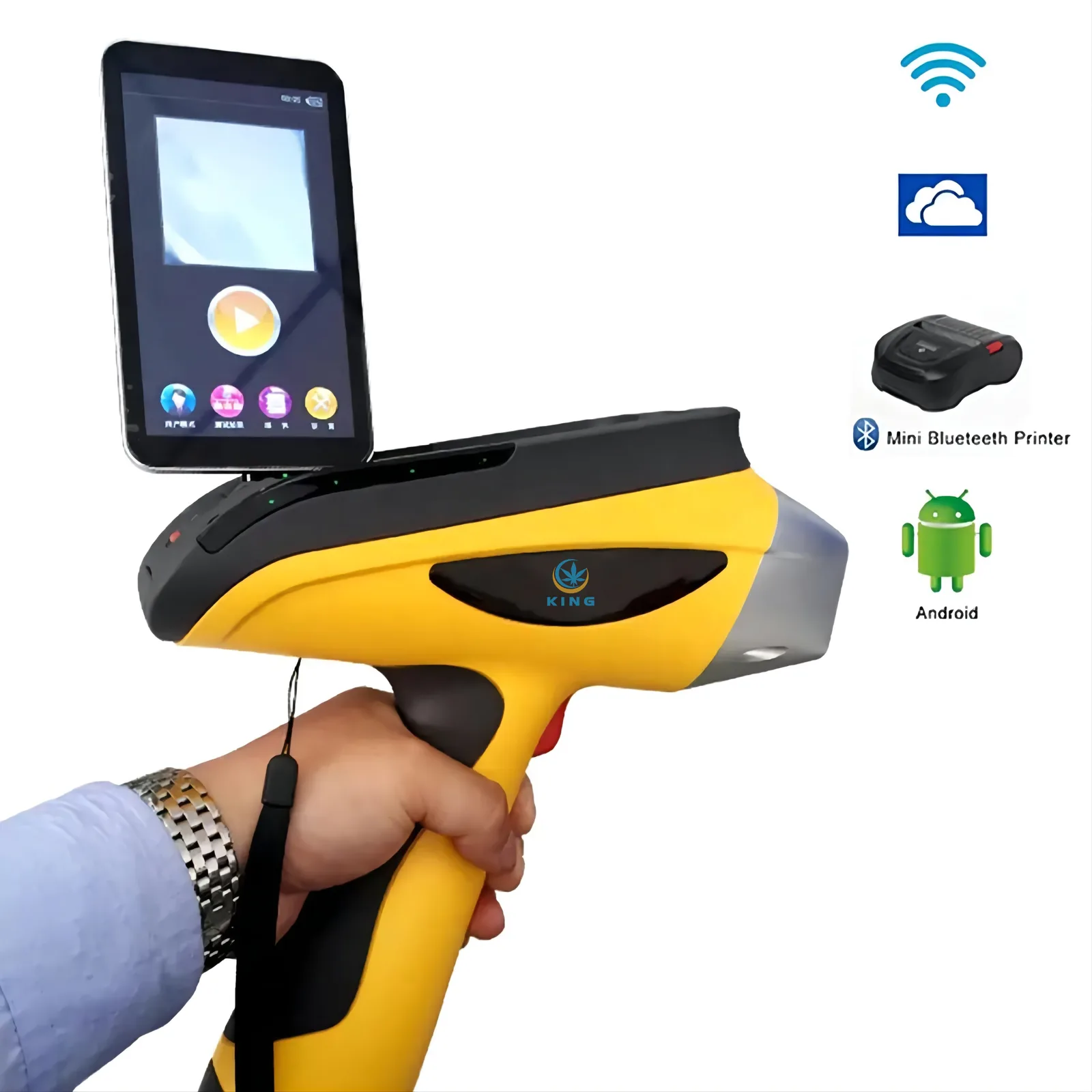

Handheld XRF Mineral Analyzer
This handheld XRF analyzer is a high-performance instrument designed for rapid, non-destructive testing of metals, minerals, ores, soils, and various industrial materials. It delivers laboratory-level accuracy in a portable field-ready device, supporting simultaneous analysis of
Specifications
- CPU
- 1 GHz
- Safety
- Multiple protections, automatic X-ray shutdown
- Weight
- 1.7 kg
- Display
- 5-inch LCD touch screen, 1080×720
- Storage
- Up to 32 GB (standard 4 GB)
- Detector
- SDD or Fast-SDD Detector
- Collimator
- 4.0 mm / 2.0 mm, 6 automatic filters
- Dimensions
- 244 × 90 × 330 mm
- Accessories
- Protection case, dual batteries, charger, radiation shield, SD card, card reader
- Battery Life
- Up to 12 hours (standard) / 3 days (optional)
- Connectivity
- GPS, WiFi, Bluetooth
- Power Supply
- Rechargeable lithium battery, 9000 mAh / optional 27000 mAh
- Product Type
- Handheld XRF Analyzer
- Test Objects
- Solid, liquid, powder
- Video System
- 500W pixel high-resolution camera
- Content Range
- ppm to 99.99%
- Element Range
- Atomic number 12–92 (Mg to U)
- System Memory
- 1 GB
- Detection Time
- 1–60 seconds (1s fast result)
- Warning System
- 3-color LED (green: power on; red: testing; yellow: fault)
- Detection Limit
- 1–500 ppm
- Analytical Method
- Energy Dispersive X-Ray Fluorescence (EDXRF)
- Data Transmission
- SPI digital transmission; waterproof mini-USB
- Excitation Source
- 50 kV / 200 μA miniature X-ray tube
- Operating Humidity
- ≤90%
- Detector Resolution
- As low as 128 eV
- Optional Accessories
- Large battery, stand, Bluetooth printer, mill, press machine, sieves
- Operating Temperature
- -20°C ~ +50°C
- Simultaneous Detection
- Up to 40 elements
