DEZHOU YIXIANG AUTOMATION TECHNOLOGY CO..LTD

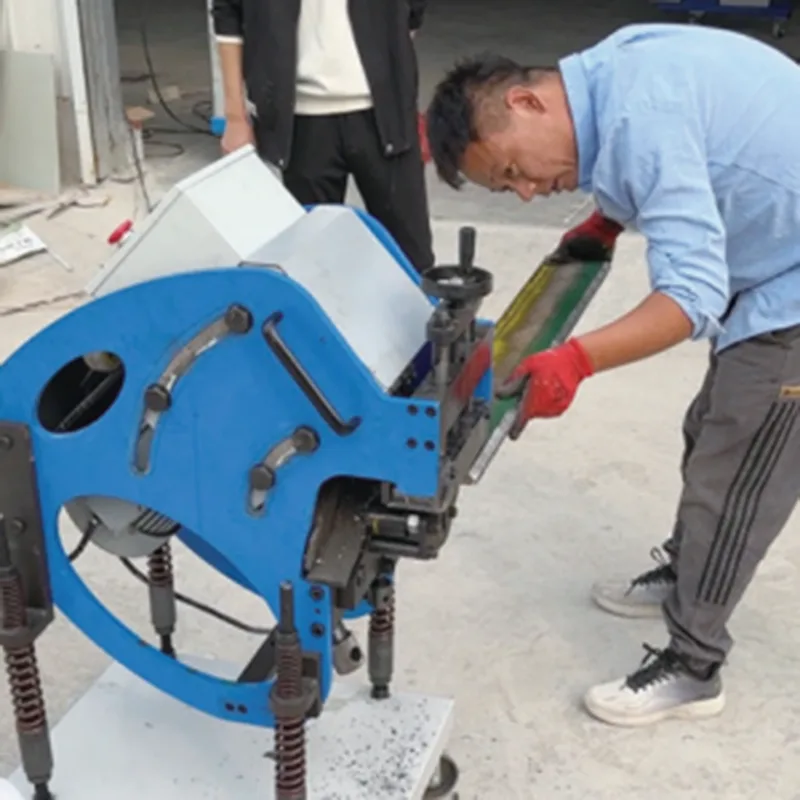

YX-40D Single-Sided Rolling-Shear Machine

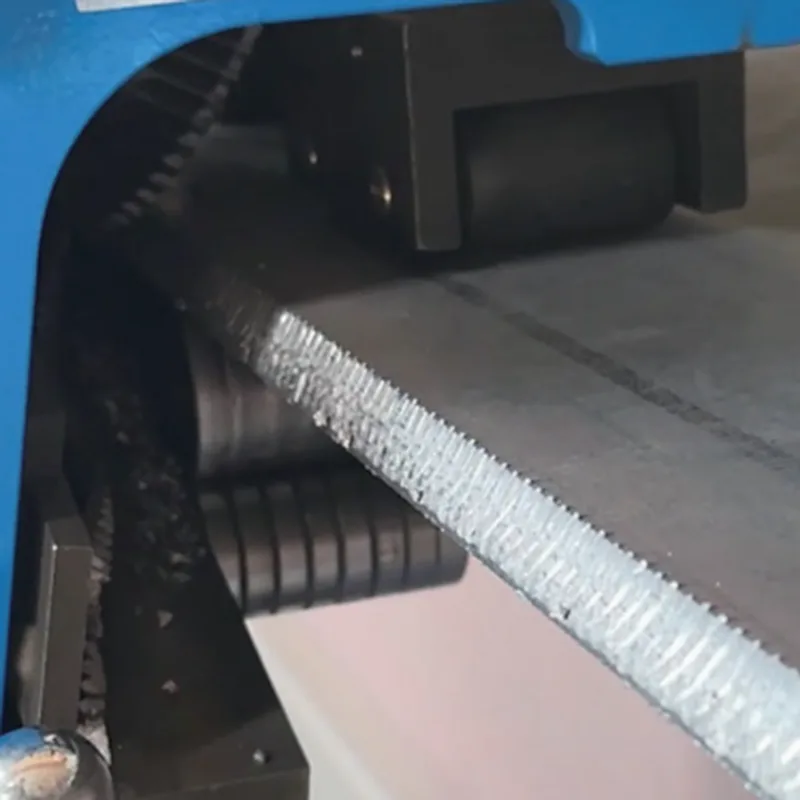

The YX-40D Single-sided Rolling Shear Machine is designed for high-speed beveling of carbon steel, manganese steel, aluminum alloy, and other metal plates. Equipped with 2200W motor power, reducer transmission system, and cold rolling shear technology, the machine delivers smooth
Specifications
- Weight
- 175 kg
- Motor Power
- 2200 W
- Motor Speed
- 1450 r/min
- Feed-in Speed
- 1.5–2.4 m/min
- Motor Voltage
- 380V 50Hz
- Machine Dimensions
- 640 × 510 × 1130 mm
- Maximum Slope Width
- 15 mm
- Steel Plate Groove Angle
- 25°–45° (arbitrary adjustment)
- Groove Steel Plate Thickness
- 9–40 mm
- Minimum Clamping Plate Width
- ≥ 80 mm
