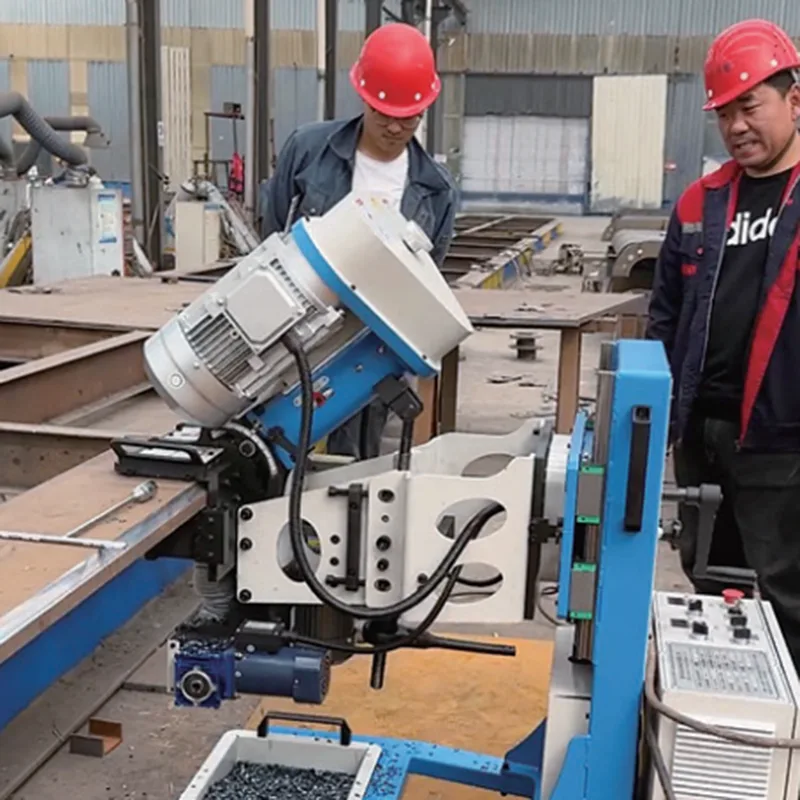

YX-80A Self-Propelled Double-Sided Beveling Machine
The YX-80A Self-propelled Double-sided Beveling Machine is designed for high-efficiency double-sided beveling of various materials such as carbon steel, stainless steel, alloy steel, cast iron, and aluminum plate. It adopts a self-propelled structure with an electric lifting syst
Specifications
- Weight
- 408 kg
- Groove Type
- K/V/X/Y type bevel + upper bevel + 0° side groove
- Total Power
- 6.59 kW (Main motor: 3kW × 2, Lift motor: 0.2kW)
- Machine Size
- 1130 × 1110 × 600 mm
- Power Supply
- 380V / 50Hz three-phase AC power
- Spindle Speed
- 1500 r/min
- Clamping Method
- Electric automatic clamping plate
- Wooden Box Size
- 1200 × 900 × 1000 mm
- Knife Disk Model
- FMZ88R-80-27-SN12-06T (max bevel width 80 mm)
- Groove Smoothness
- Ra3.2–6.3
- Processing Method
- Milling
- Blade Specification
- SNMX1025 (6 square inserts)
- Processing Materials
- Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate, etc.
- Processing Groove Angle
- 0°–78° (adjustable as desired)
- Processing Groove Speed
- 0.7–1.5 m/min (variable frequency adjustable)
- Height Adjustment System
- Electric lift + elastic floating system
- Thickness of Clamping Plate
- 4–80 mm
- Transmission Clamping Assembly
- 11 sets of transmission wheels (7 upper + 4 lower)
