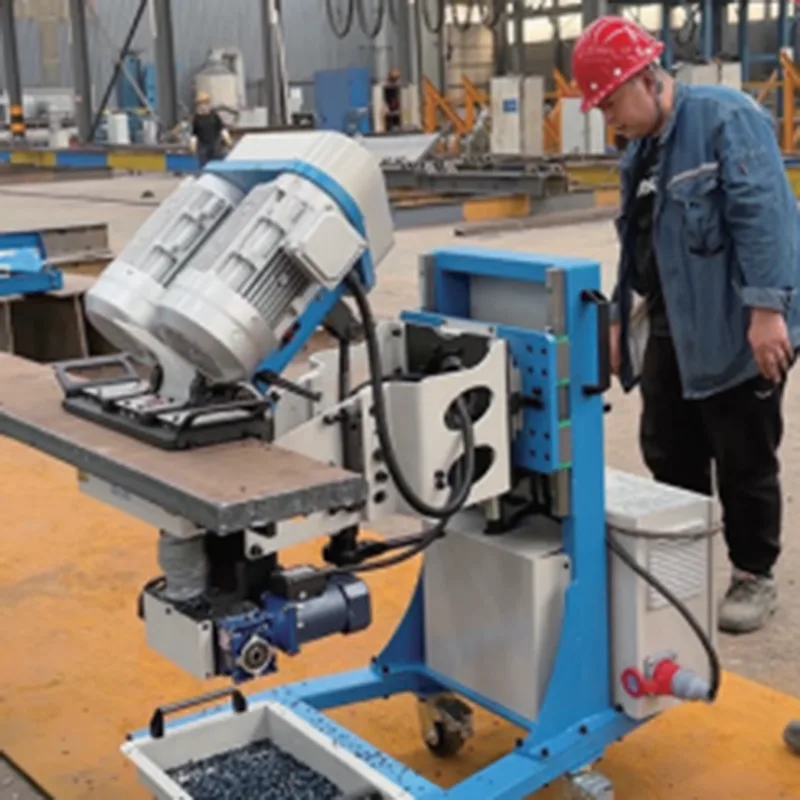

YX-80D Self-Propelled Single-Sided Beveling Machine
The YX-80D Self-propelled Single-sided Beveling Machine is specially designed for precision beveling and edge milling of carbon steel, stainless steel, alloy steel, and aluminum plates. It adopts a self-propelled design with an electric lifting system and cold cutting process, en
Specifications
- Weight
- 360 kg
- Groove Type
- K/V/X/Y-shaped groove + uphill + 0° side groove
- Total Power
- 6.59 kW (Main motor: 3kW ×2, Lift motor: 0.2kW)
- Machine Size
- 920 × 710 × 1100 mm
- Power Supply
- 380V / 50Hz three-phase AC
- Spindle Speed
- 1500 r/min
- Clamping Method
- Electric automatic clamping plate (ensuring stable pressure)
- Wooden Box Size
- 1100 × 800 × 1000 mm
- Knife Disk Model
- FMZ88R-80–27–SN12–06T (max bevel width 80 mm)
- Groove Smoothness
- Ra3.2–6.3

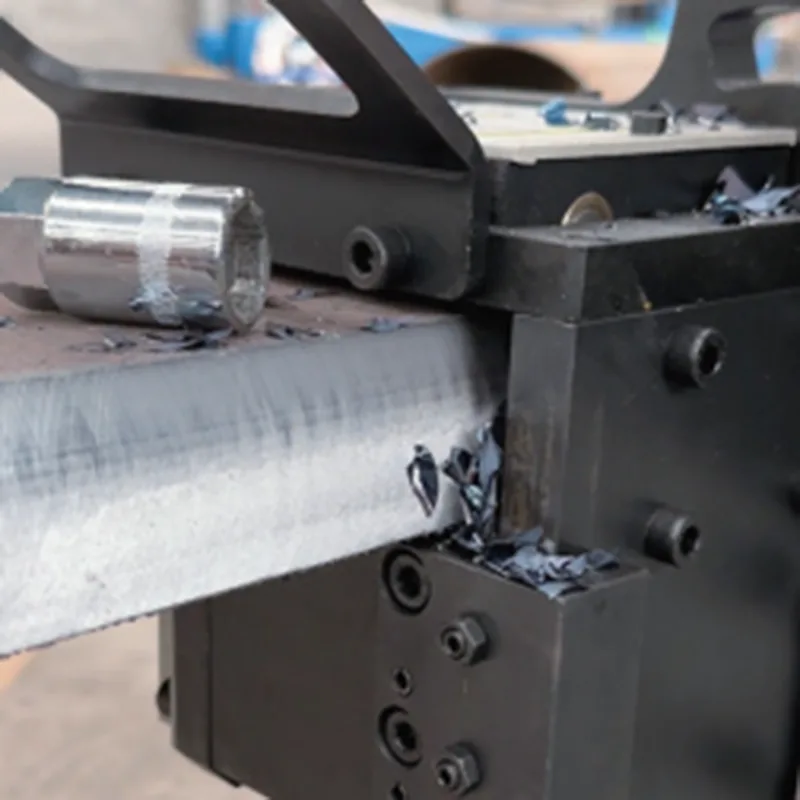

- Processing Method
- Milling
- Blade Specification
- SNMX1025 (6 square eight-blade inserts)
- Applicable Materials
- Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate
- Transmission Assembly
- 11 transmission wheels (7 upper + 4 lower)

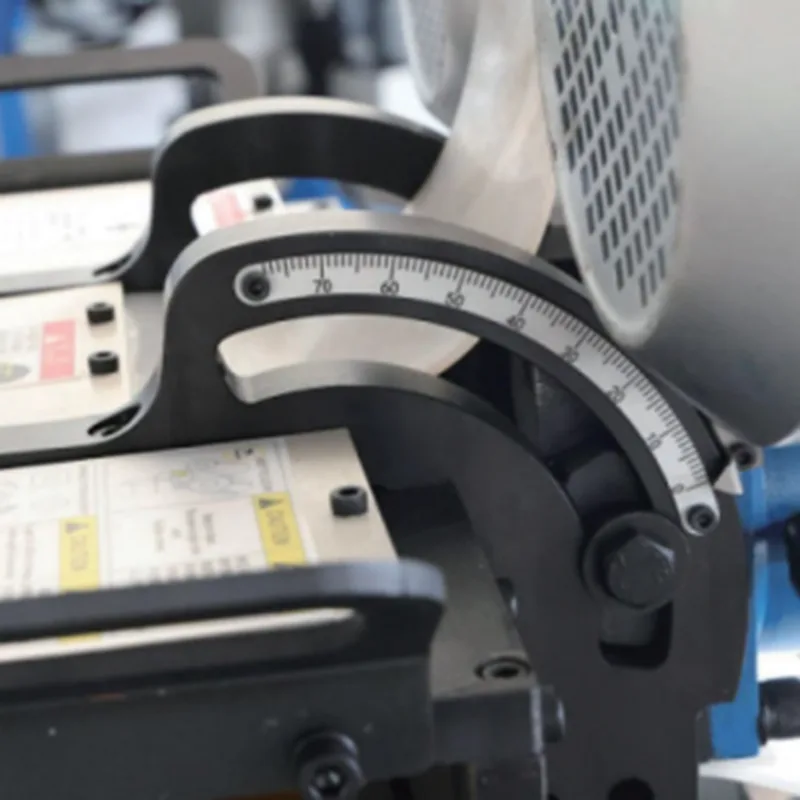

- Processing Groove Angle
- 0°–78° (adjustable as desired)
- Processing Groove Speed
- 0.7–1.5 m/min (variable frequency adjustable)

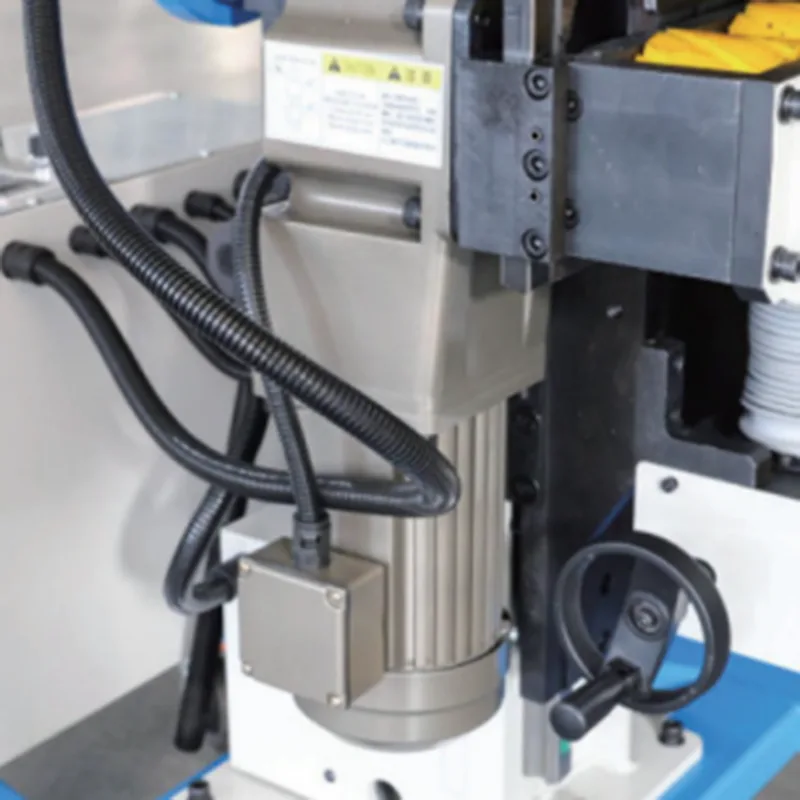

- Height Adjustment System
- Electric lift + elastic floating lifting system
- Thickness of Clamping Plate
- 4–80 mm
