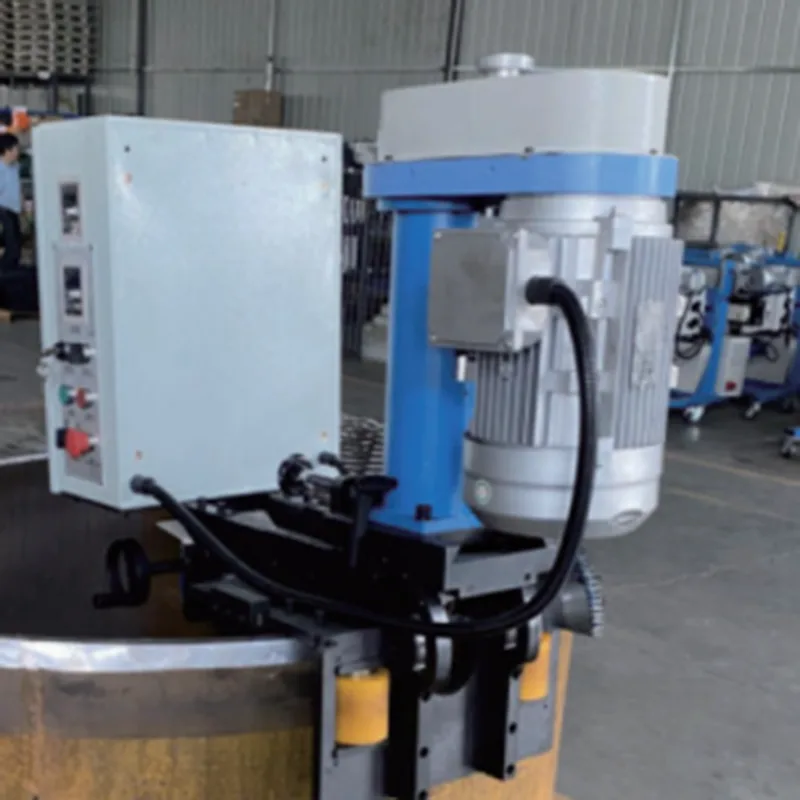

YX-80G Portable Pipe Milling Machine
The YX-80G Portable Head Pipe Milling Machine is a high-performance beveling and edge milling solution designed for large-diameter pipes and heavy metal plates. Equipped with a powerful 3.52kW motor, cold-cutting system, and adjustable speed control, it delivers precise, oxidatio
Specifications
- Model
- XY-80G

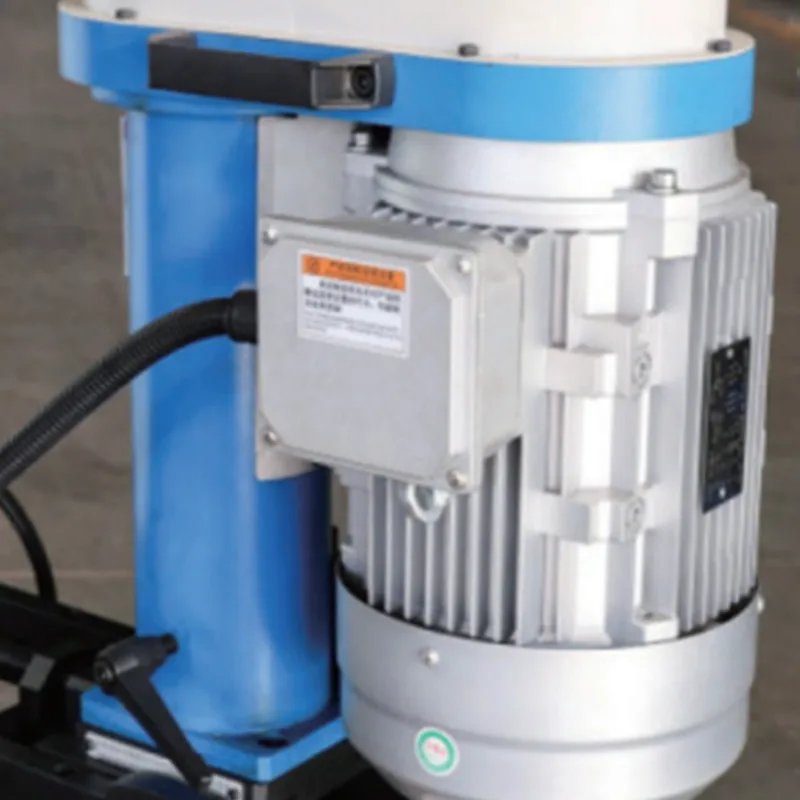

- Motor Power
- Total: 3.52 kW (Cutting main motor: 3 kW 380V/50Hz)
- Power Supply
- 380V / 50Hz three-phase AC
- Pipe Diameter
- ≥ Φ1000 mm
- Spindle Speed
- 1050 r/min
- Blade Diameter
- 80 mm
- Pipeline Height
- ≥ 350 mm
- Groove Smoothness
- Ra3.2–6.3
- Processing Method
- Milling and cutting
- Machine Dimensions
- 1070 × 500 × 1070 mm
- Single Groove Width
- 0–15 mm
- Processing Materials
- Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate
- Number of Cutting Discs
- 7 discs (6 square inserts)

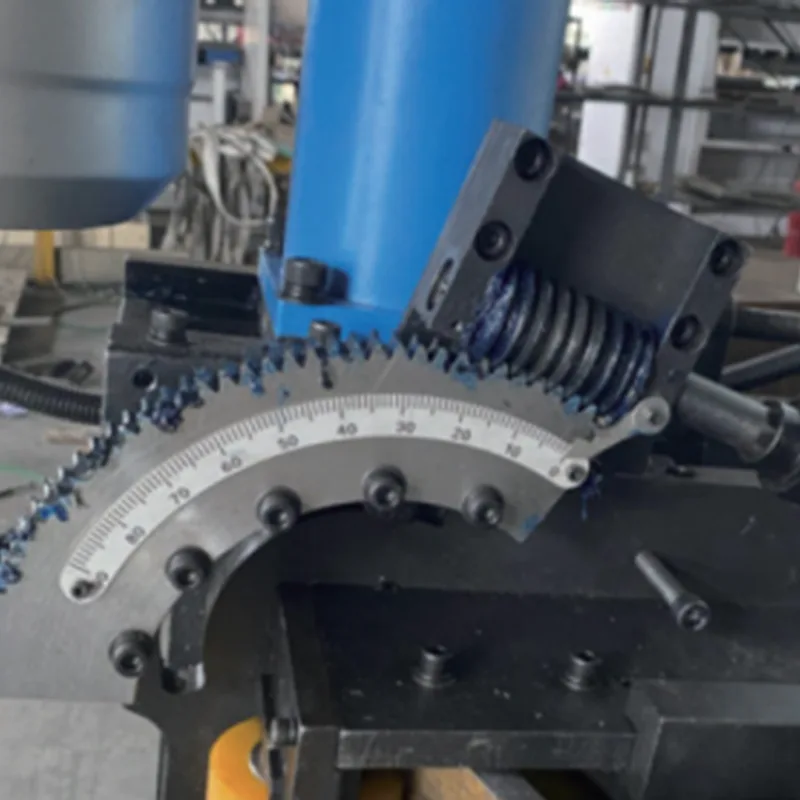

- Processing Groove Angle
- 0°–90° (adjustable as desired)
- Processing Groove Speed
- 0–1.5 m/min (variable frequency adjustable)
- Clamping Plate Thickness
- 6–60 mm
