GUANGDONG XIANGJIE INTELLIGENT TECHNOLOGY CO., LTD

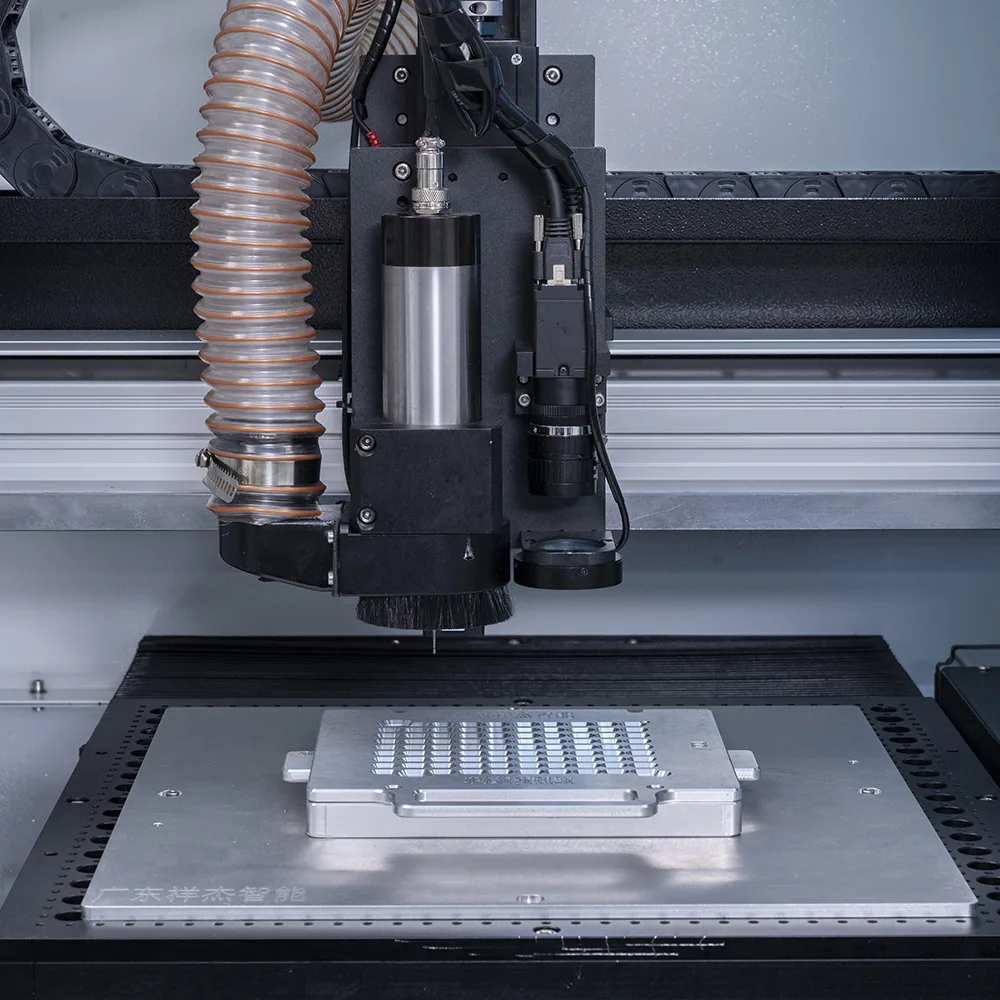

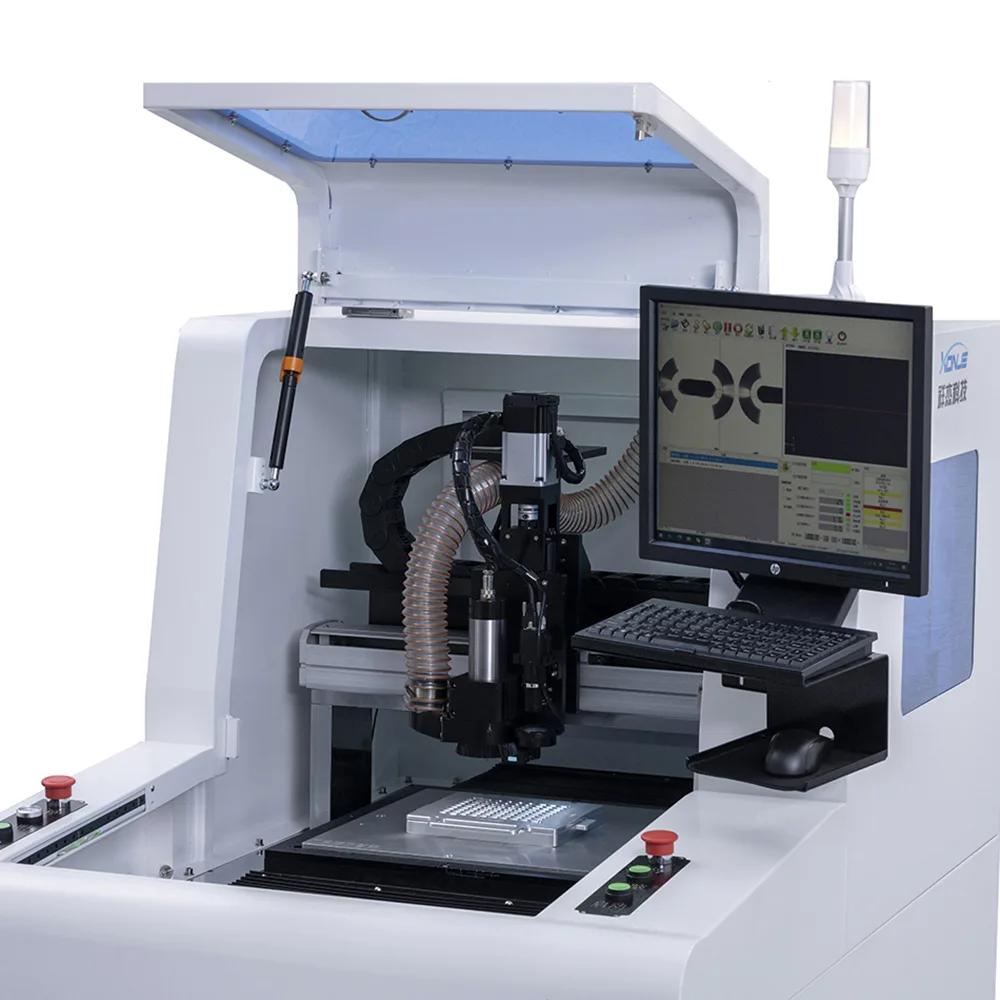

XONJE XJ-L400Z Single-Station Visual Milling Splitting Machine
Suitable for cutting PCB stamp holes, curved PCBs, and irregular PCBs. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc
Specifications
- Weight
- 250 kg
- Spindle tool
- 0.8–3.0 mm
- Cutting speed
- 0–100 mm/s
- Spindle speed
- 0–60,000 RPM
- Control method
- Patented software + industrial computer + servo
- Partition area
- 300 × 350 mm
- Working voltage
- 220V AC
- Cutting accuracy
- ±0.02 mm
- Cutting function
- Straight line, L-shape, U-shape, arc, full circle
- Overall dimensions
- 830 mm (L) × 1020 mm (W) × 1400 mm (H)
- Positioning accuracy
- ±0.01 mm
- Number of workbenches
- Landing single workbench
- Vacuum suction method
- Upper suction / lower suction
