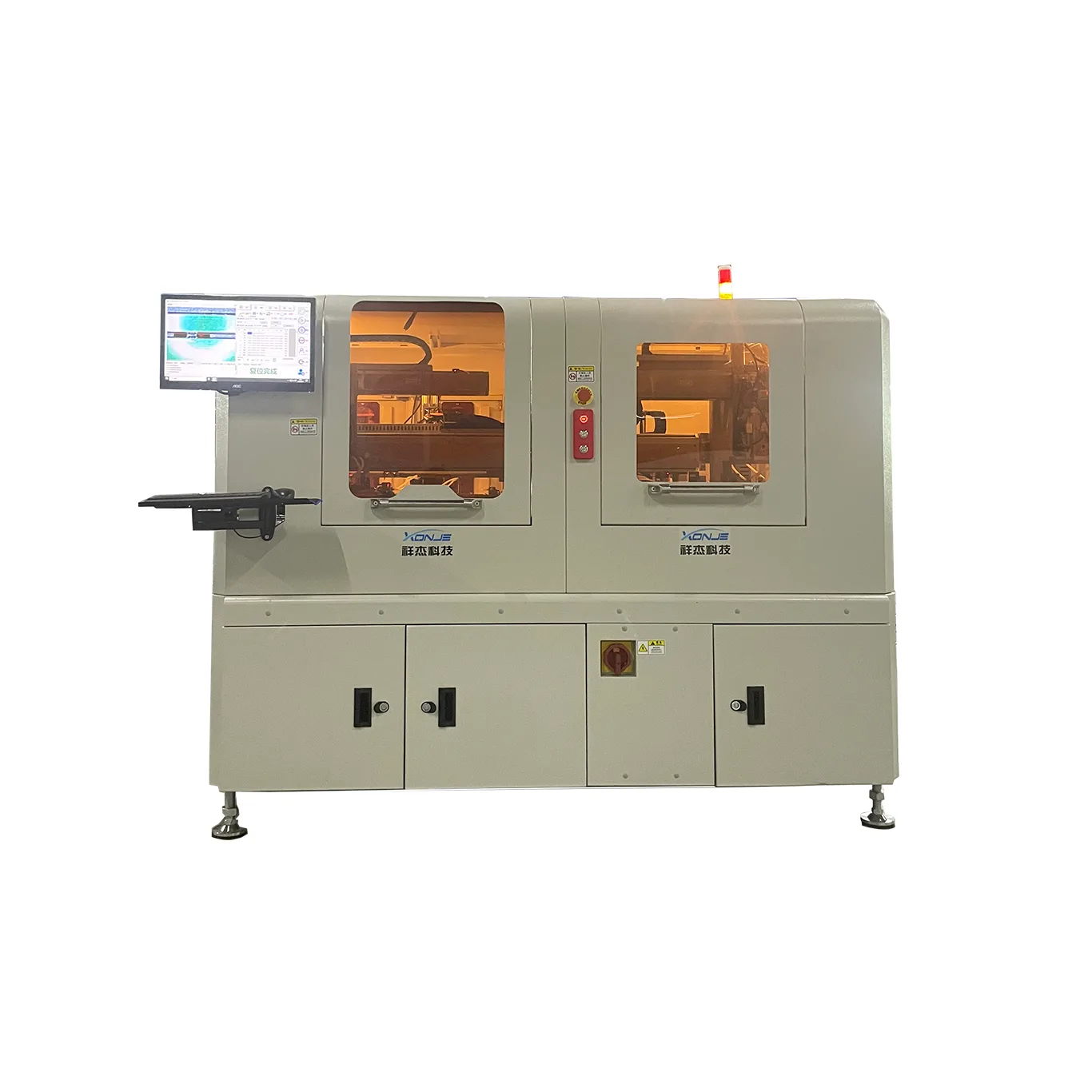

XONJE XJ-Z911 Online Splitting & Sorting Machine
Suitable for PCB slitting, size detection, and disc placement for stamp holes and point connections. Integrated body design, widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.
Specifications
- Weight
- 1400KG
- Spindle
- High-speed anti-static 100,000 RPM with automatic tool change system
- Motion axis
- 16-axis feeding: X; Take board: X; Milling cutter: X/Y/Z; Vehicles: Y1/Y2; High-speed material extraction: X/Z1/Z2/R1/R2; Tray conveyor line: Y; Take Tray: X; Discharging belt: X/Z
- Programming
- Online programming / 10x CCD camera or scanning full image graphical programming / Offline programming
- Workstation
- Dual workstations
- PCB handling
- Vacuum material handling arm
- Control motor
- AC servo
- Control system
- X, Y, Z & R axes
- Partition area
- 280mm x 230mm (customizable)
- Plate thickness
- 0.5–6MM
- Operating system
- Windows 10
- Splitting accuracy
- 0.02MM
- External dimensions
- 1950 (L) x 1550 (W) x 1600 (H) mm
- Positioning accuracy
- ±0.01MM
- Broken knife detection
- Supported
- Transmission direction
- From left to right
- Vacuum cleaning system
- 5HP lower vacuum cleaning
- PCB fixing reinforcement
- Vacuum assisted PCB board (optional)
- Power supply requirements
- 3-phase AC380V 50Hz 13KW
- Milling cutter specification
- 0.8–3.0MM
