GUANGDONG XIANGJIE INTELLIGENT TECHNOLOGY CO., LTD

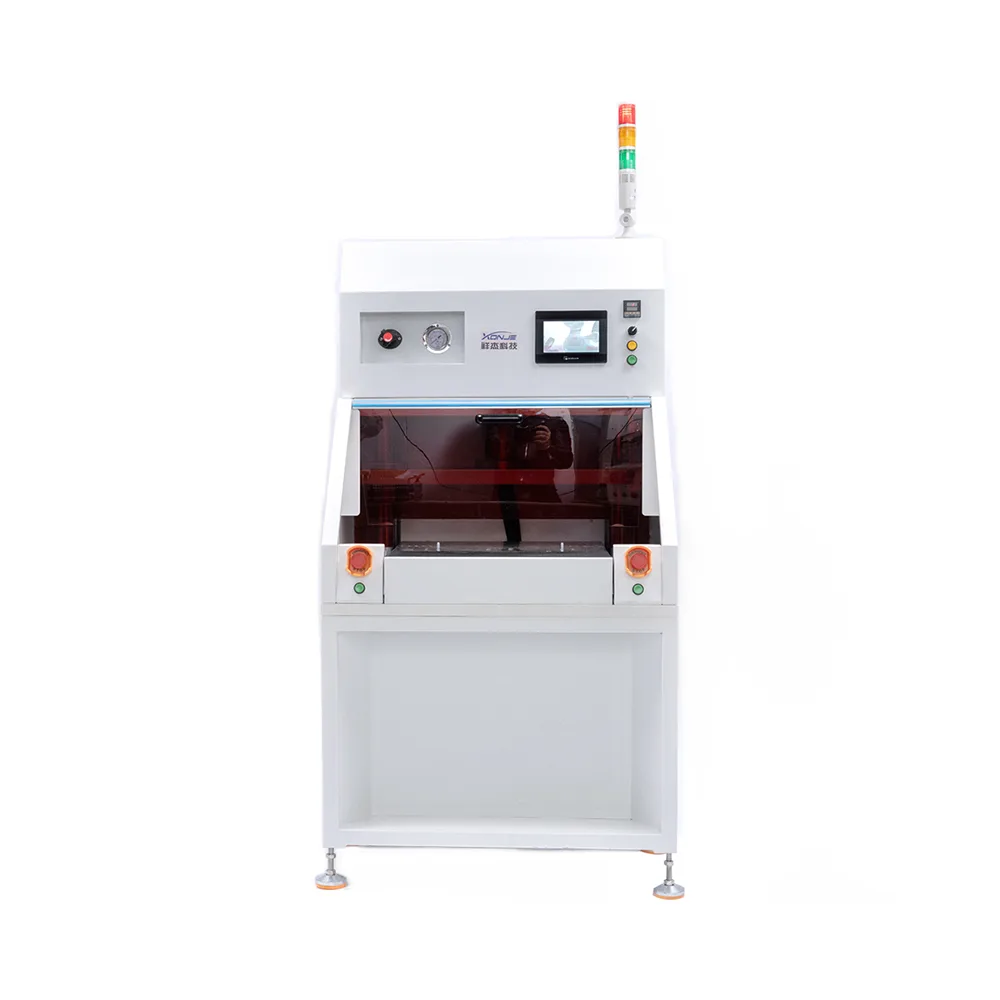

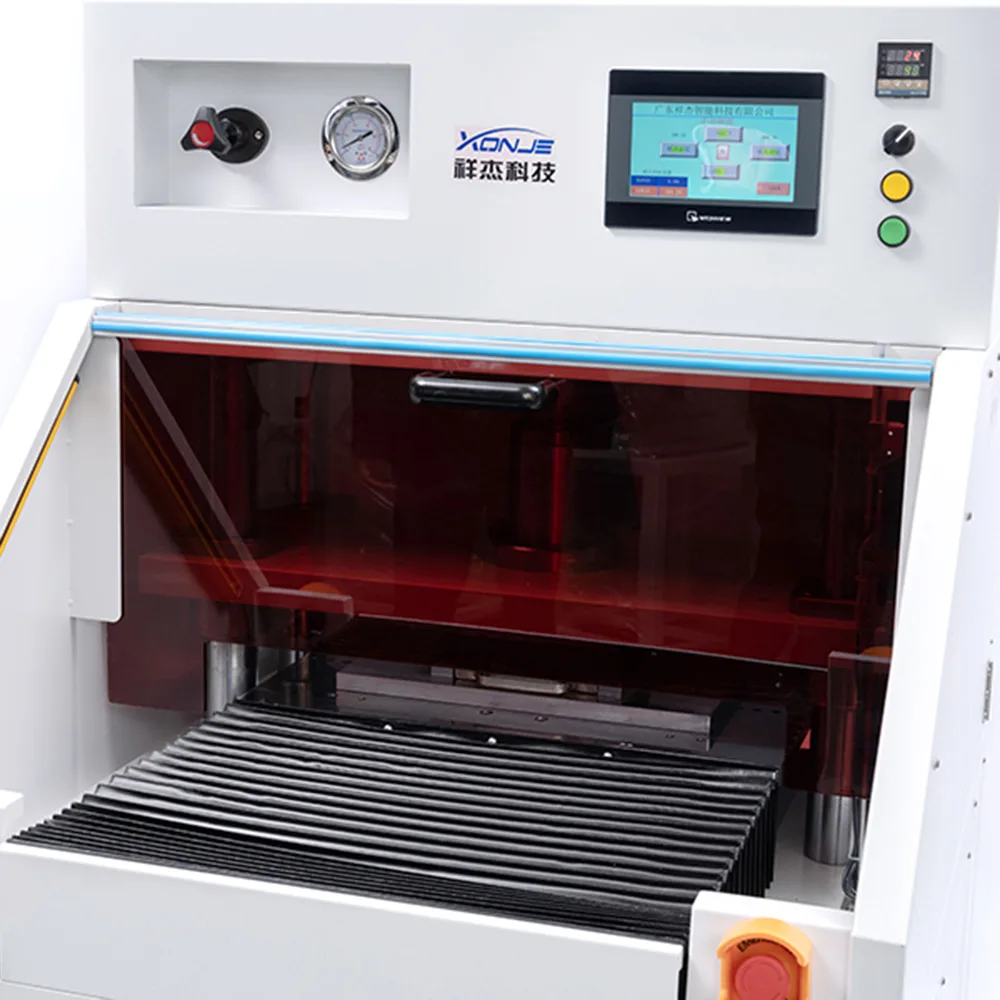

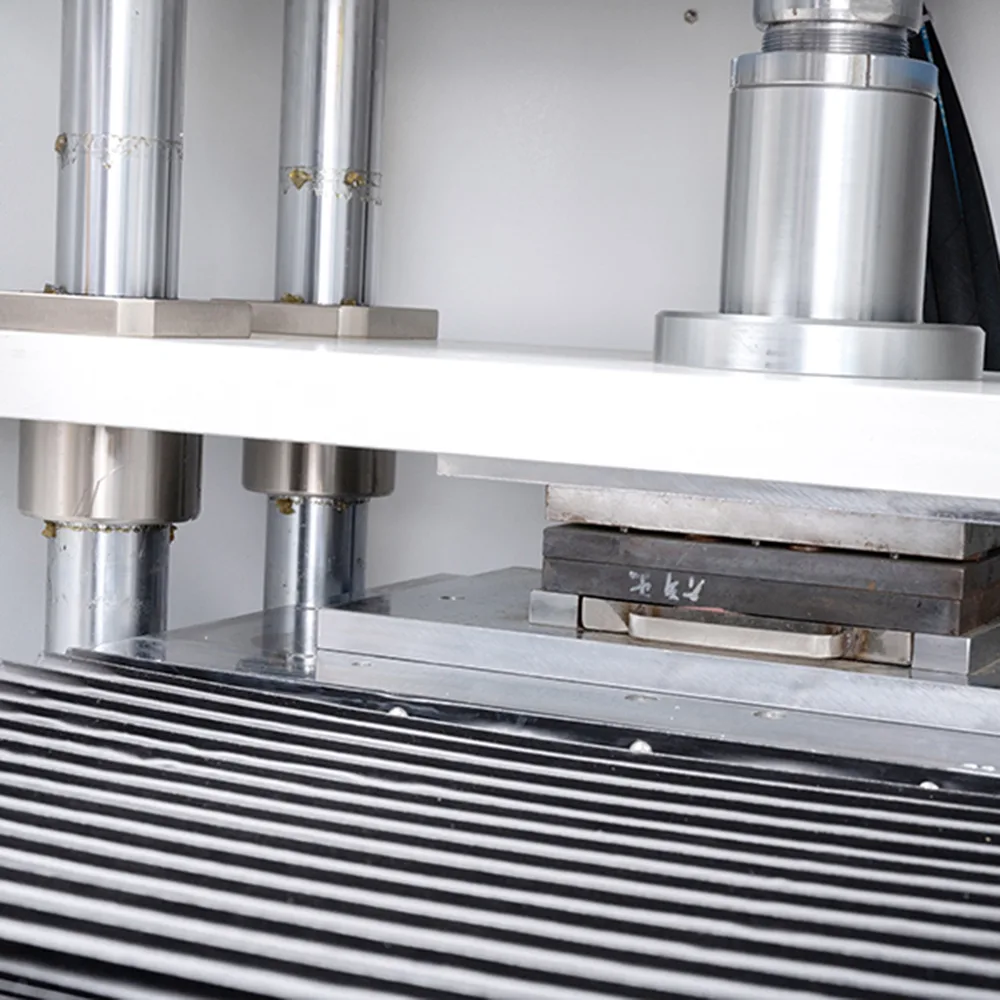

XONJE XJP8-30T Servo Stamping Splitting Machine
Suitable for cutting PCB stamp holes, curved PCBs, FPC soft boards, LED aluminum substrates, copper substrates, and FPC. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.
Specifications
- Output
- 25T / 30T / 50T / 80T
- Weight
- 850 kg
- Working mode
- Servo oil pressure
- Splitting area
- 350 × 500 mm (larger area available upon request)
- Working voltage
- AC 380V
- Overall dimensions
- 1200 mm (L) × 910 mm (W) × 1750 mm (H)
- Working air pressure
- 0.5–0.7 MPa
