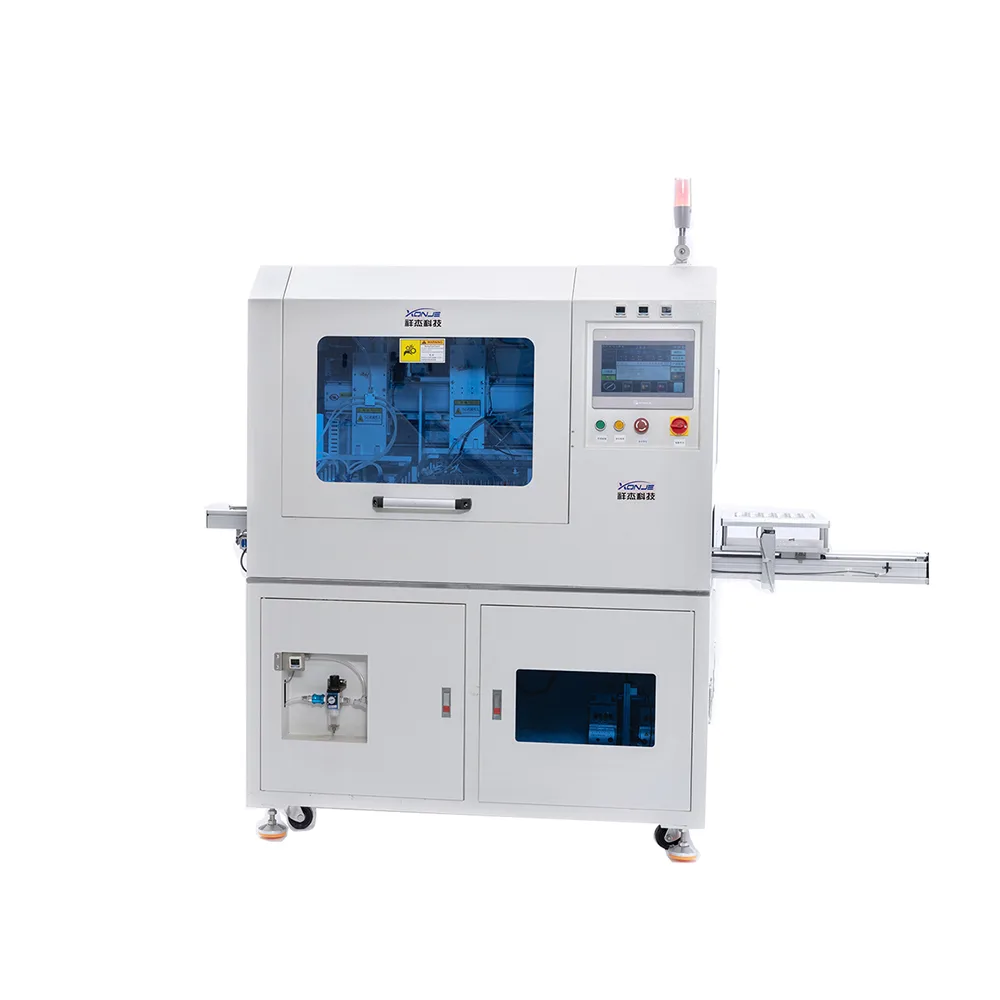

XONJE XJVC-10A Online Rotary-Table V-Slot Dividing Machine

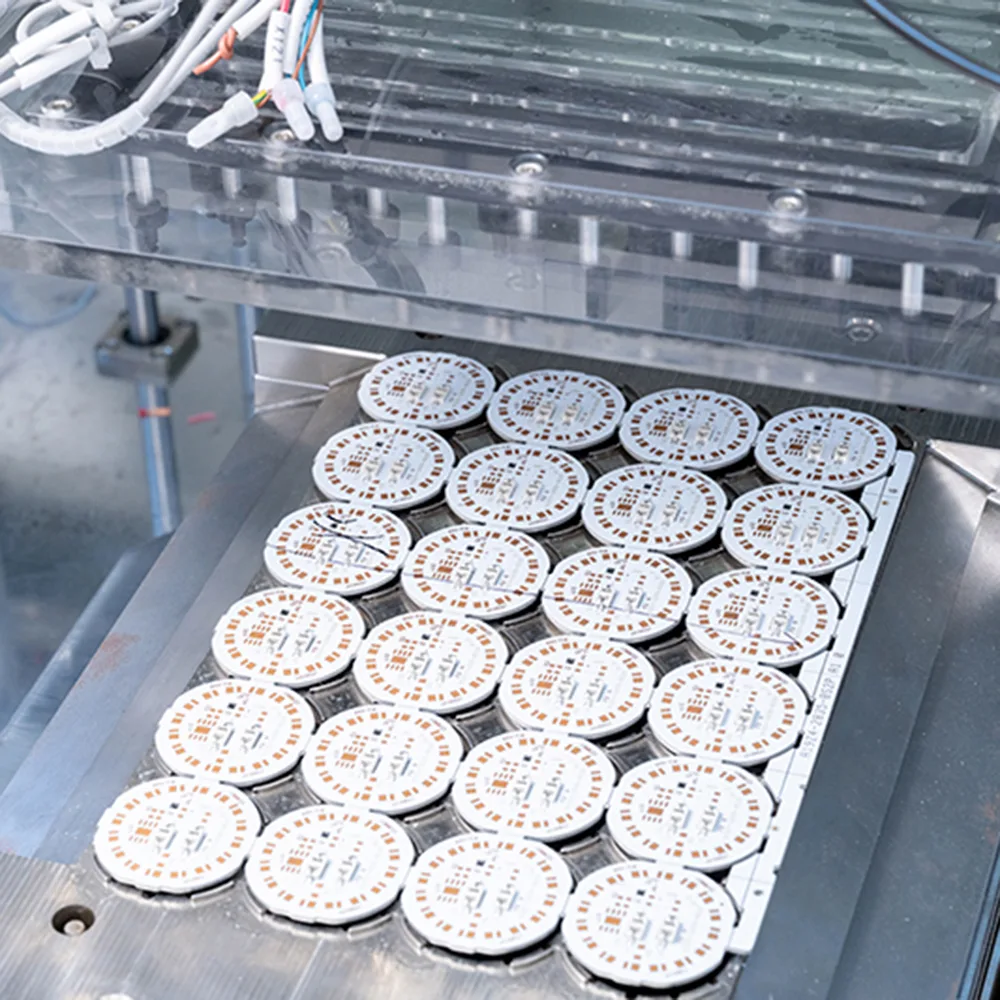

It can achieve automatic slitting in both V slot X and Y directions, and clean and burr free slitting of aluminum substrate, copper substrate, FR4, and fiberglass board. The slitting machine can connect to the assembly line to achieve fully automatic slitting without the need for
Specifications
- Safety
- Work area protected by safety gratings
- Weight
- 600 kg
- Efficiency
- 15s/pcs (150 × 150 mm, 8-blade cutting as reference)
- Application
- Suitable for PCB board splitting after plug-in
- Die accuracy
- 0.1 mm
- Control System
- PLC + touch screen control, simple and convenient interface
- Vacuum suction
- 1500W vacuum suction under blade group
- Panel thickness
- 0.6–3.5 mm
- Splitting blade
- Imported from Japan, high-speed steel, angle: 10°–30° (optional), service life: 5 million cuts
- Splitting speed
- 0–800 mm/s
- Working voltage
- 220V, 50Hz, 1800W
- Main Transmission
- Precision stepper motors and SMC pneumatic components, high repeat positioning accuracy
- Overall dimensions
- 1350 mm (L) × 1200 mm (W) × 1800 mm (H)
- Parameter Settings
- Adjustable parameters ensure continuous feeding and splitting
- Automation Features
- Automatic feeding, automatic cutting, automatic plate collection
- Parameter / Feature
- Specification / Description
- Robotic arm movement
- Stepper motor + guide rail + belt transmission
- Max. component height
- Reverse side: ≤20 mm, Front side: ≤35 mm
- Max. & Min. board size
- Max: 300 × 250 mm, Min: 12 × 12 mm
- Plate inlet adjustment
- Direct parameter input, automatic adjustment
- Misoperation protection
- Triple protection: grating sensors + software
- Suction cup requirement
- At least one side of a single small board ≥10 × 10 mm
- Knife mold base movement
- Servo system + screw guide rail
- Power/gas off protection
- Yes
- Self-inspection functions
- Startup monitoring, capacity monitoring, fault detection, auto troubleshooting
- Working air pressure / pipe diameter
- >0.6 MPa / 8 mm
- Min. distance between parts & cutting line
- ≥1.5 mm
