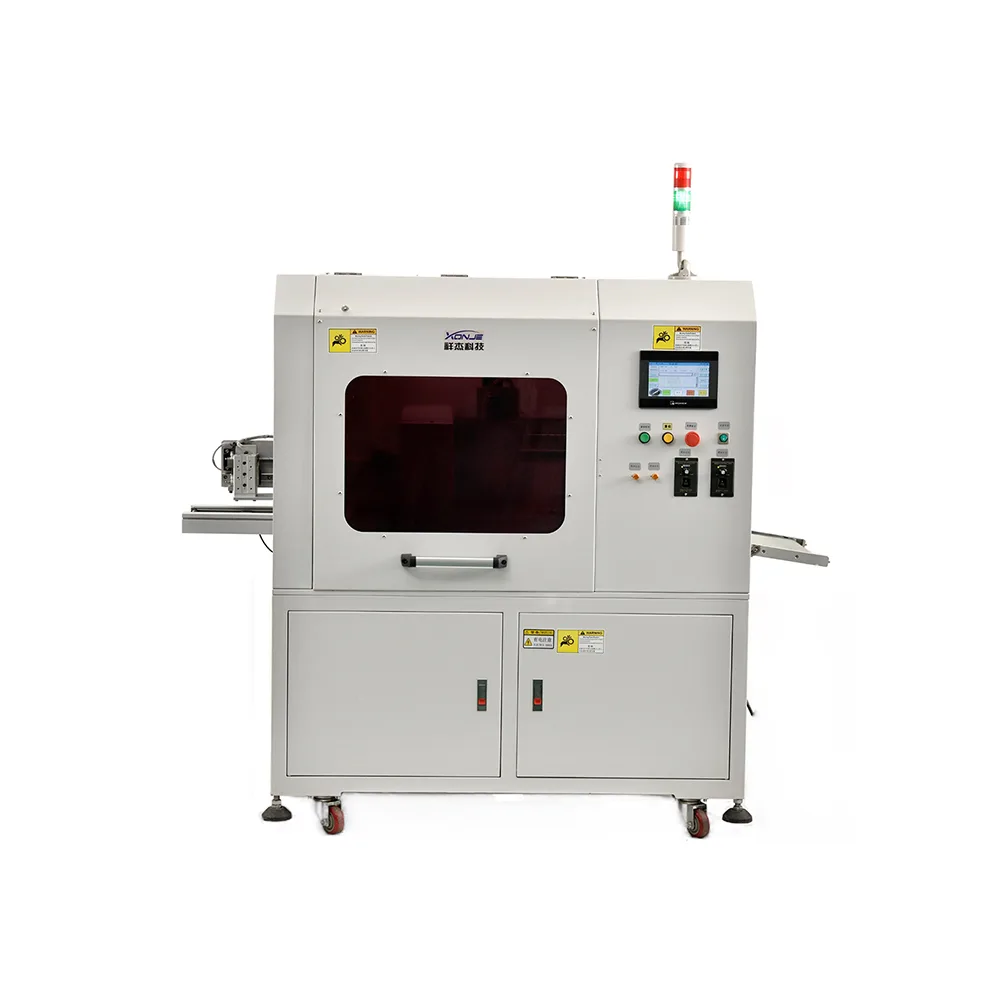

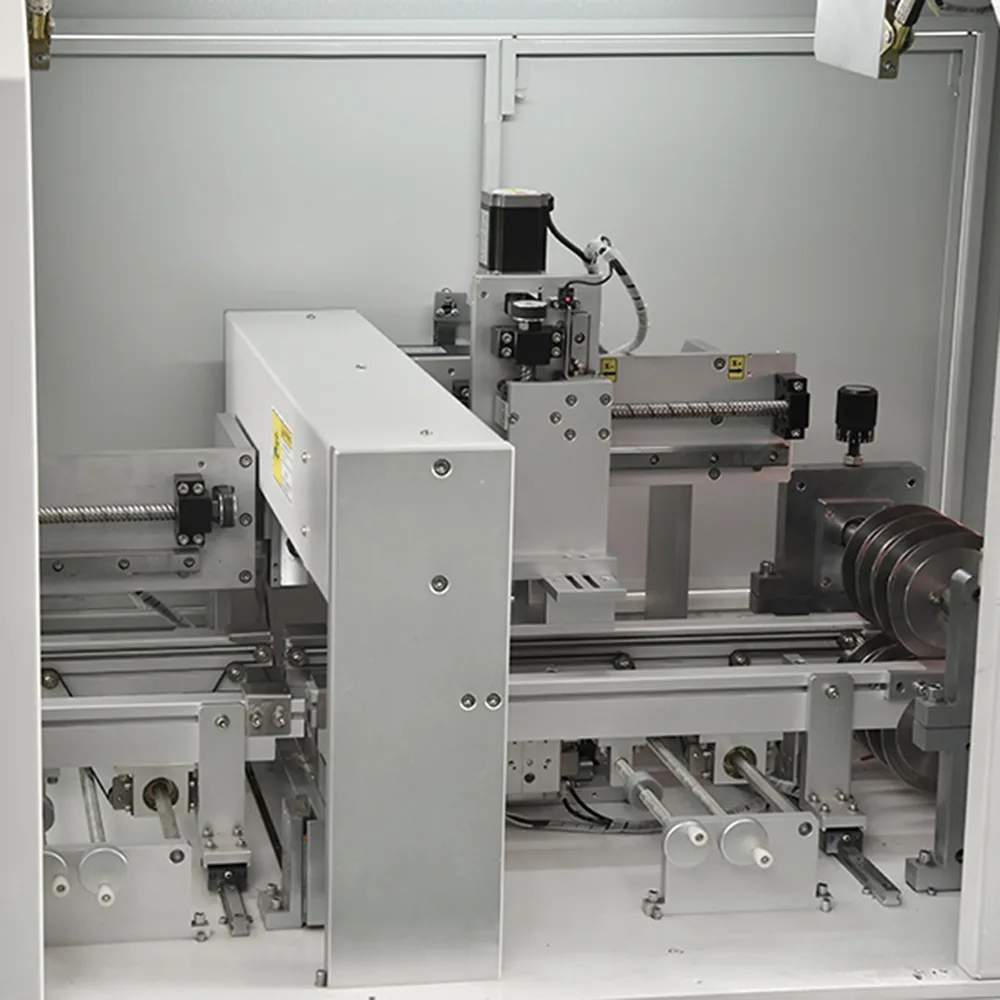

XONJE XJVC-12A Online Bidirectional V-Slot Splitting Machine
Suitable for cutting PCB boards, aluminum substrates, copper plates, and ceramic plates; Especially suitable for cutting precision SMD PCBA or thin plates, making sensitive SMD components and capacitors unaffected by stress, minimizing potential quality risks of products. Widely
Specifications
- Safety
- Work area protected by safety gratings
- Weight
- 550 kg
- Efficiency
- 10s/pcs (150 × 150 mm, 8-blade cutting as reference)
- Application
- Suitable for dividing well-shaped PCB boards after plug-in
- Die accuracy
- 0.1 mm
- Power supply
- 220V AC, 1000W
- Control System
- Mitsubishi PLC + Weilun touch screen, simple and convenient interface
- Plate thickness
- 0.6–3.5 mm
- Splitting blade
- Imported from Japan, high-speed steel, 10°–30° (optional), service life: 5 million cuts
- Splitting speed
- 0–800 mm/s
- Main Transmission
- Precision servo, stepper motor, SMC & Yadeke pneumatic components, high repeat positioning accuracy
- Overall dimensions
- 1500 mm (L) × 800 mm (W) × 1500 mm (H)
- Parameter Settings
- Adjustable parameters ensure continuous feeding and splitting
- Automation Features
- Automatic feeding, automatic cutting, automatic plate collection
- Parameter / Feature
- Specification / Description
- Max. component height
- Reverse side ≤20 mm, Front side ≤35 mm
- Vacuum suction method
- 1500W vacuum suction under blade group
- Max. & Min. board size
- Max: 300 × 300 mm, Min: 12 × 12 mm
- Plate inlet adjustment
- Front fixed, rear adjustable
- Power/gas off protection
- Yes
- Equipment working voltage
- 220V, 50Hz
- Self-inspection functions
- Startup monitoring, capacity monitoring, fault detection, automatic troubleshooting
- Suction cup robotic arm movement
- Stepper motor + guide rail + belt transmission
- Working air pressure / pipe diameter
- >0.6 MPa / 8 mm
- Min. distance between parts & cutting line
- ≥1.5 mm
