Hangzhou Dadian CNC

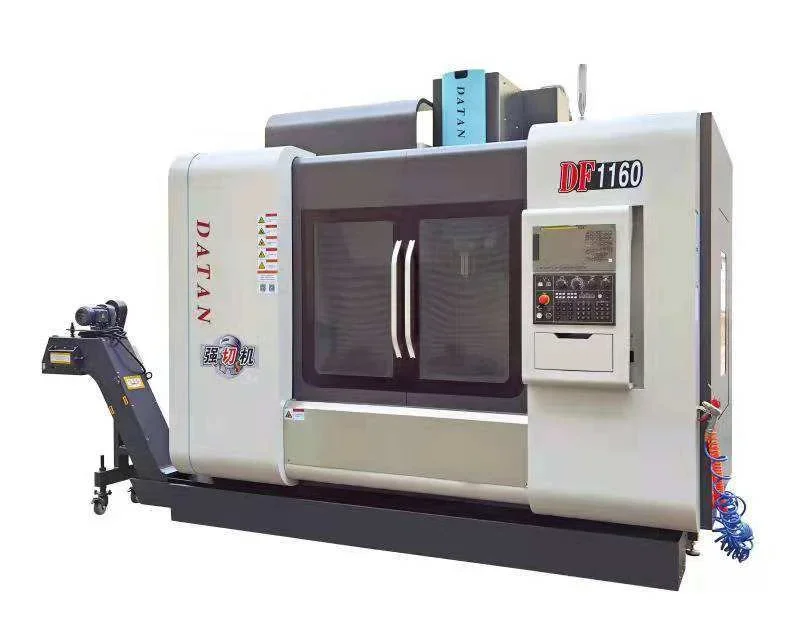

Two-line One-hard Vertical Machining Center
High-rigidity vertical machining center, travel 1100×600×600mm, spindle speed 8000rpm
Specifications
- travel_x_mm
- 1100
- travel_y_mm
- 600
- travel_z_mm
- 600
- table_size_mm
- 1200x600
- power_demand_kva
- 12
- repeatability_mm
- 0.005
- spindle_speed_rpm
- 8000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 11
- table_load_capacity_kg
- 1000
- cutting_feed_rate_m_min
- 10
- positioning_accuracy_mm
- 0.008
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 48
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- air_pressure_requirement_kg_cm2
- 8
