Hangzhou Dadian CNC

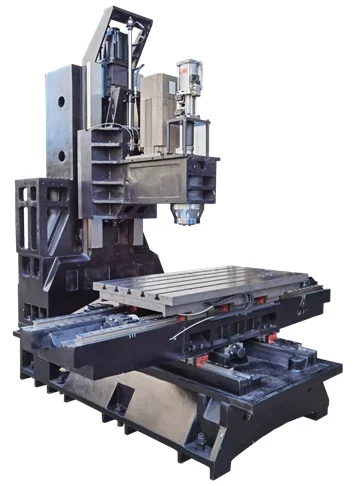

Two-line One-hard Vertical Machining Center
High-rigidity vertical machining center, travel 800×550×550mm, spindle speed 8000rpm
Specifications
- travel_x_mm
- 800
- travel_y_mm
- 550
- travel_z_mm
- 550
- table_size_mm
- 1000x550
- power_demand_kva
- 10
- repeatability_mm
- 0.003
- spindle_speed_rpm
- 8000
- table_max_load_kg
- 800
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_m_min
- 10
- spindle_motor_power_kw
- 11
- positioning_accuracy_mm
- 0.005
- tool_changer_capacity_pcs
- 24
- rapid_traverse_rate_g00_m_min
- 48
- max_tool_diameter_full_pocket_mm
- 78
- max_tool_diameter_empty_pocket_mm
- 120
