Hangzhou Dadian CNC

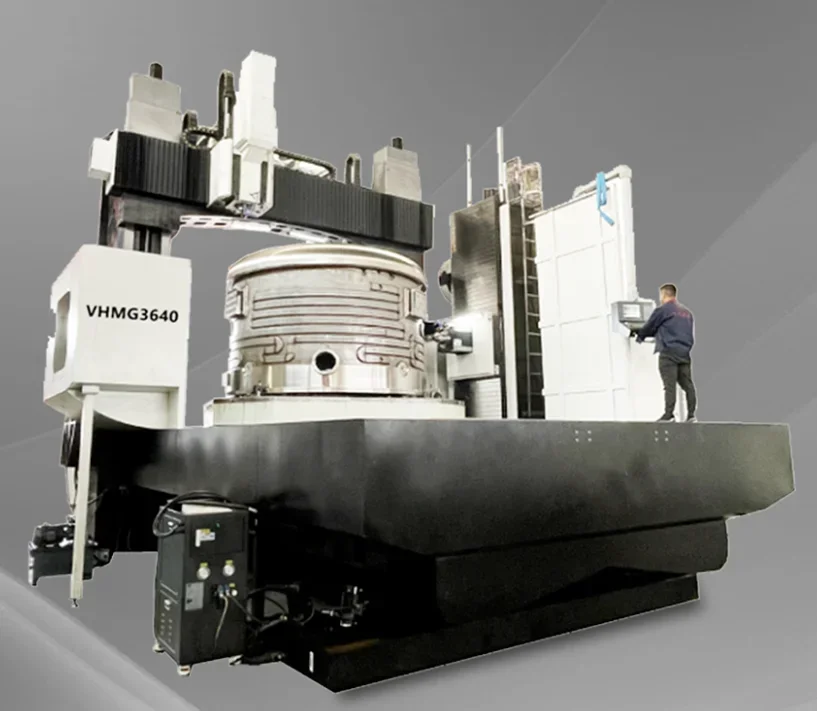

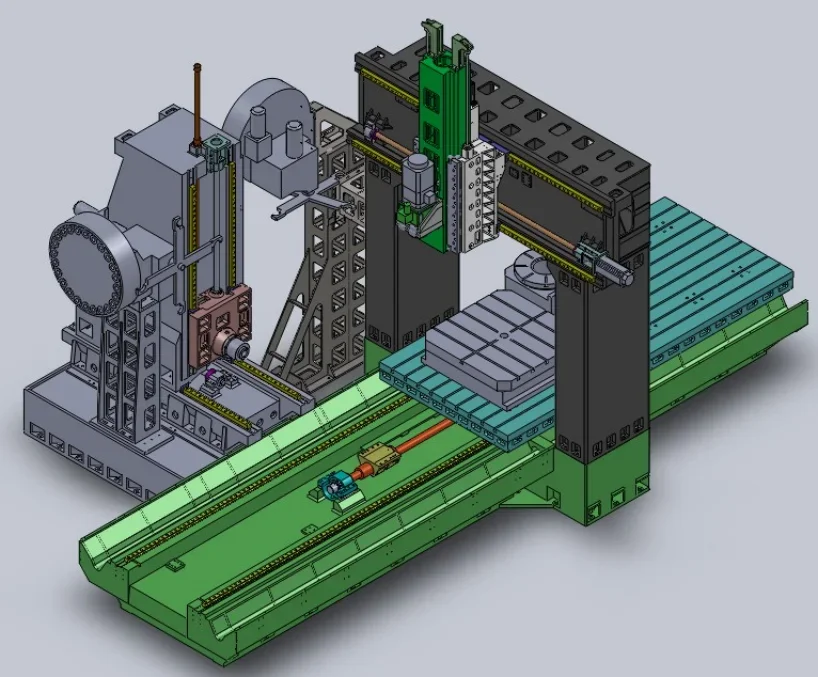

Gantry Vertical and Horizontal Composite Machining Center
Cost-effective vertical-horizontal machining center, complete multi-face processing in one setup
Specifications
- travel_x_mm
- 4000
- travel_y_mm
- 2200
- travel_z_mm
- 1000
- table_size_mm
- 2000x2000
- feed_rate_mm_min
- 8000
- spindle_speed_rpm
- 6000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 26
- table_load_capacity_kg
- 10000
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 10
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
