Hangzhou Dadian CNC

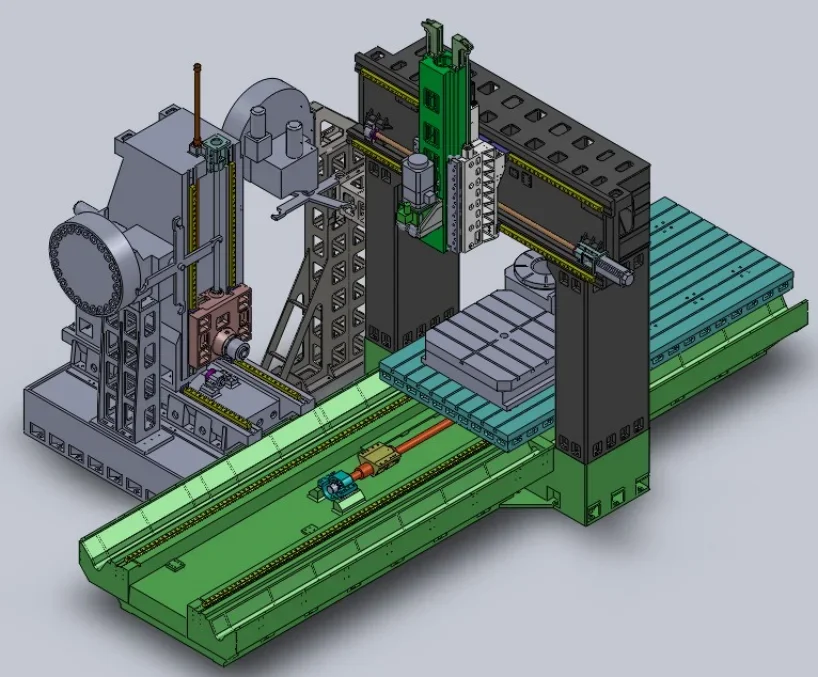

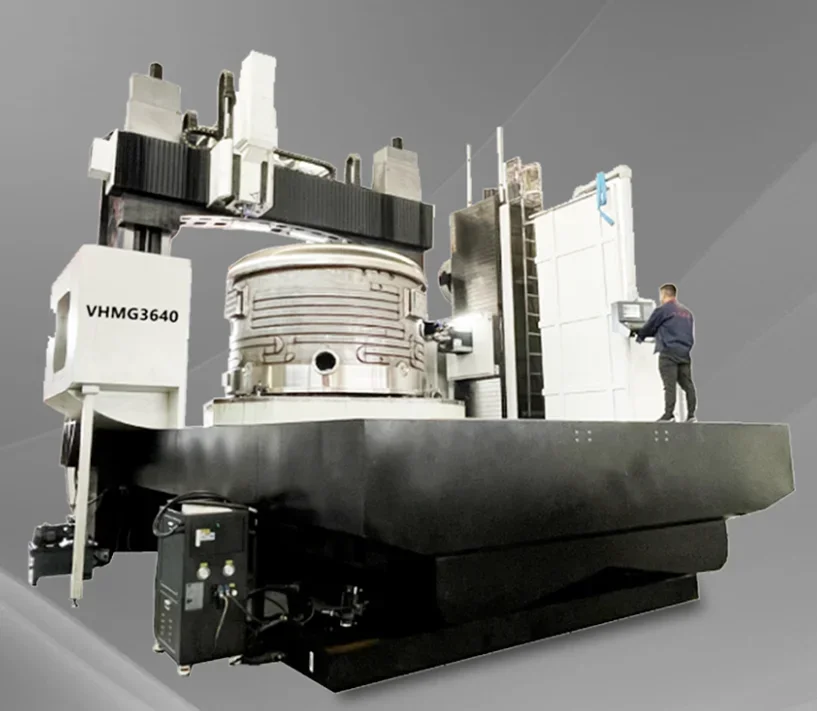

Five-sided Vertical and Horizontal Composite Machine Tool

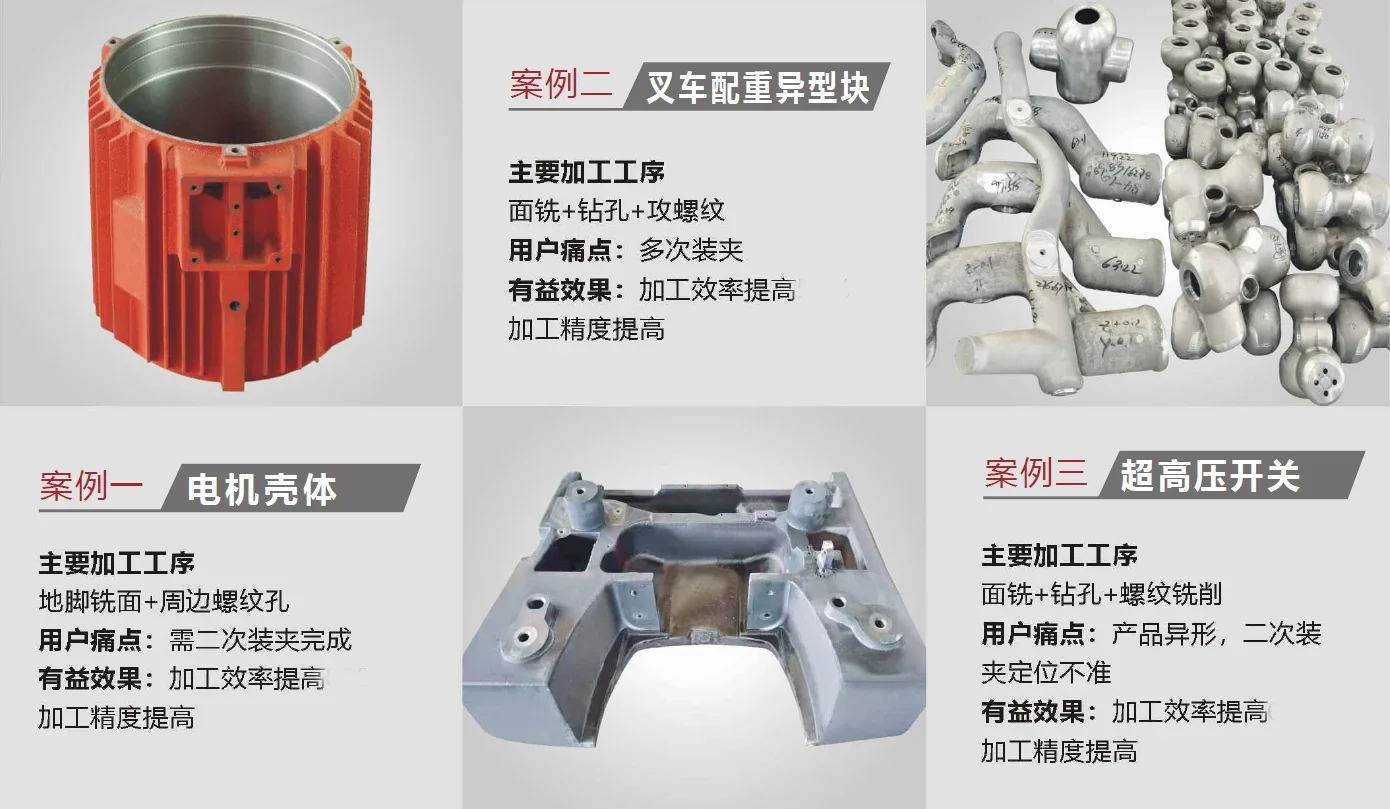

Cost-effective five-sided vertical & horizontal composite machine tool, complete multi-face processing in one setup
Specifications
- travel_w_mm
- 2600
- travel_x_mm
- 4000
- travel_y_mm
- 3600
- travel_z_mm
- 600
- spindle_taper
- BT50
- table_size_mm
- 3200x3200
- feed_rate_mm_min
- 8000
- spindle_motor_kw
- 22
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 12000
- tool_max_length_mm
- 300
- tool_max_weight_kg
- 8
- tool_changer_time_s
- 1.8
- rapid_traverse_m_min
- 10
- tool_max_diameter_full_mm
- 78
- tool_max_diameter_empty_mm
- 120
