Hangzhou Dadian CNC

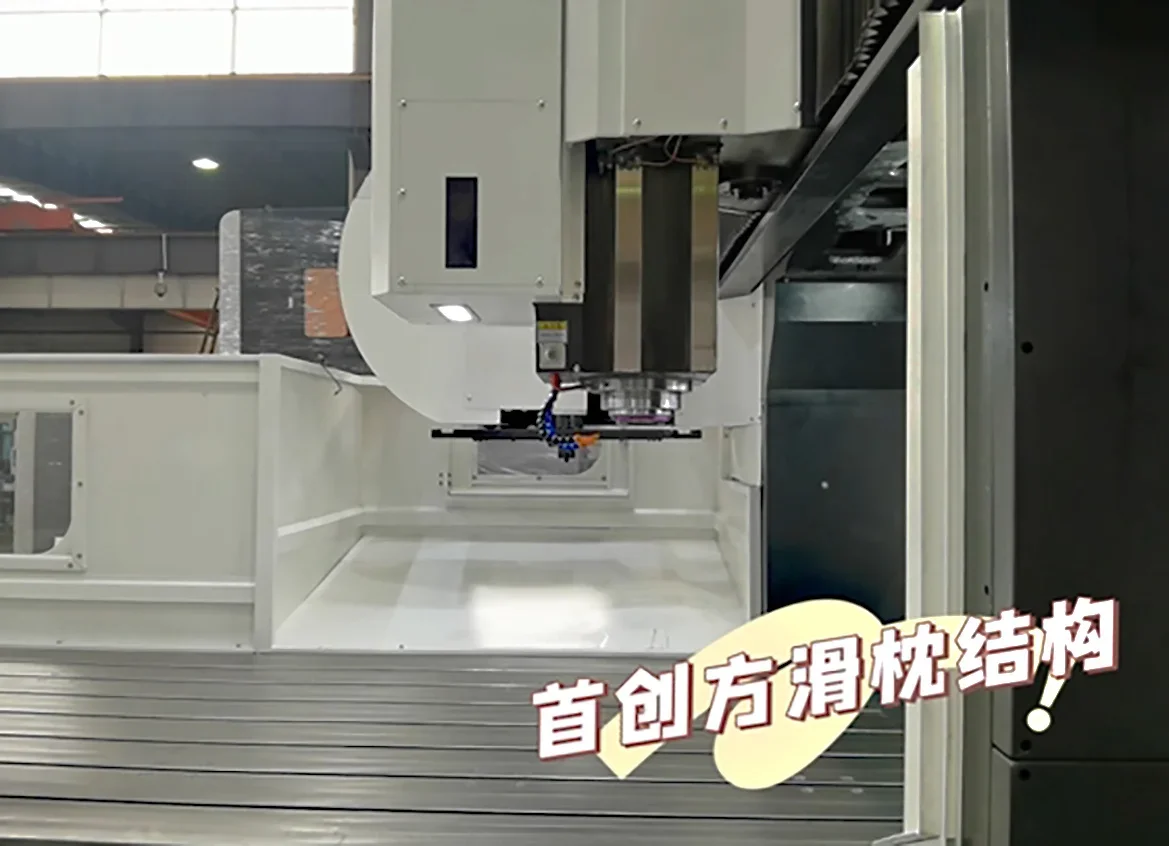

High Rigidity Gantry Machining Center
High rigidity gantry machining center, 3-axis travel 4000×1800×1000mm, spindle speed 6000rpm.
Specifications
- travel_x_mm
- 4000
- travel_y_mm
- 1800
- travel_z_mm
- 1000
- table_size_mm
- 4000x1600
- power_demand_kva
- 20
- repeatability_mm
- 0.015
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 15000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_m_min
- 8
- spindle_motor_power_kw
- 15
- positioning_accuracy_mm
- 0.02
- max_tool_diameter_full_mm
- 78
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- rapid_traverse_rate_g00_m_min
- 12
