Hangzhou Dadian CNC

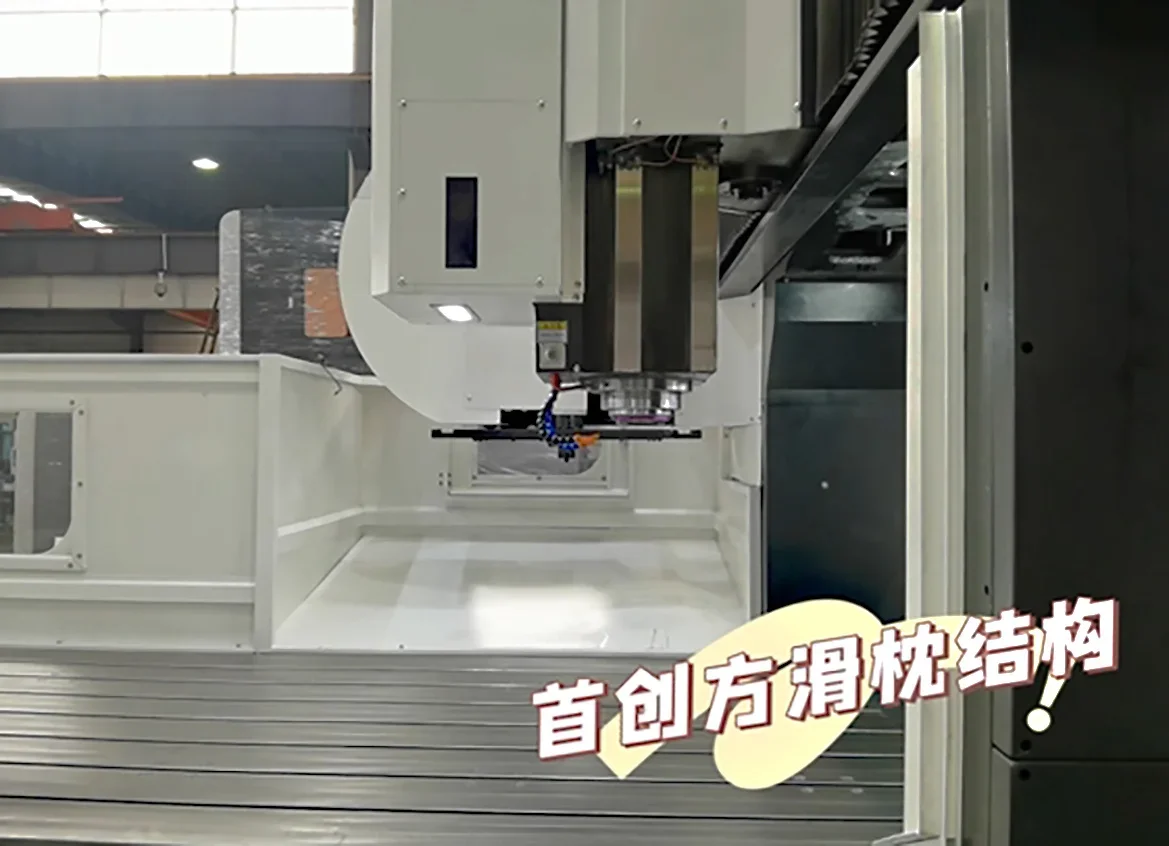

High Rigidity Gantry Machining Center
High rigidity intelligent gantry, 3-axis travel 4000×2200×1000mm, spindle speed 6000rpm
Specifications
- travel_x_mm
- 4000
- travel_y_mm
- 2200
- travel_z_mm
- 1000
- table_size_mm
- 4000x1800
- feed_rate_m_min
- 12
- power_demand_kva
- 20
- repeatability_mm
- 0.015
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 12000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 26
- positioning_accuracy_mm
- 0.02
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 10
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- air_pressure_requirement_kg_cm2
- 6
