Hangzhou Dadian CNC

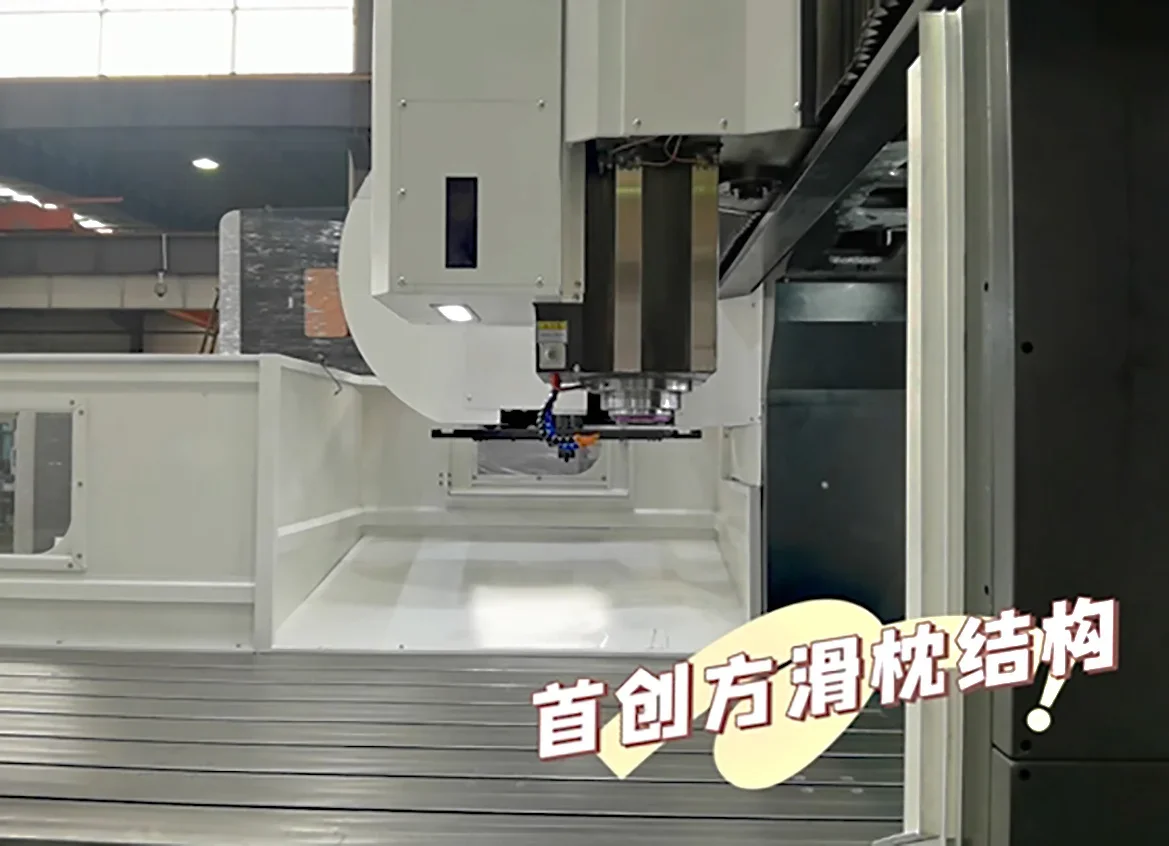

High Rigidity Gantry Machining Center
Large stroke high rigidity gantry machining center, suitable for heavy cutting
Specifications
- travel_x_mm
- 8200
- travel_y_mm
- 4000
- travel_z_mm
- 1250
- table_size_mm
- 8000x2600
- feed_rate_m_min
- 10
- repeatability_mm
- 0.015
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 30000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- rapid_traverse_m_min
- 10
- spindle_motor_power_kw
- 26
- positioning_accuracy_mm
- 0.02
- max_tool_diameter_full_mm
- 78
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
