Hangzhou Dadian CNC

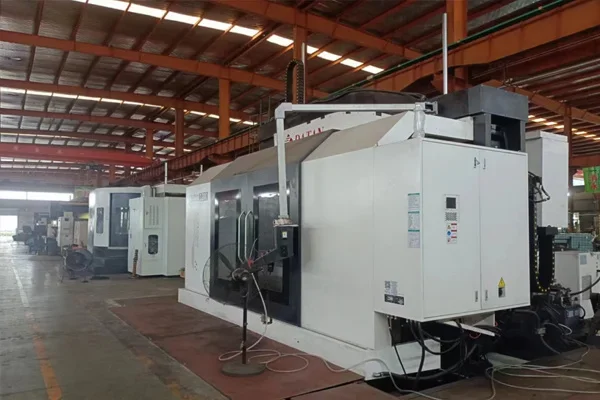

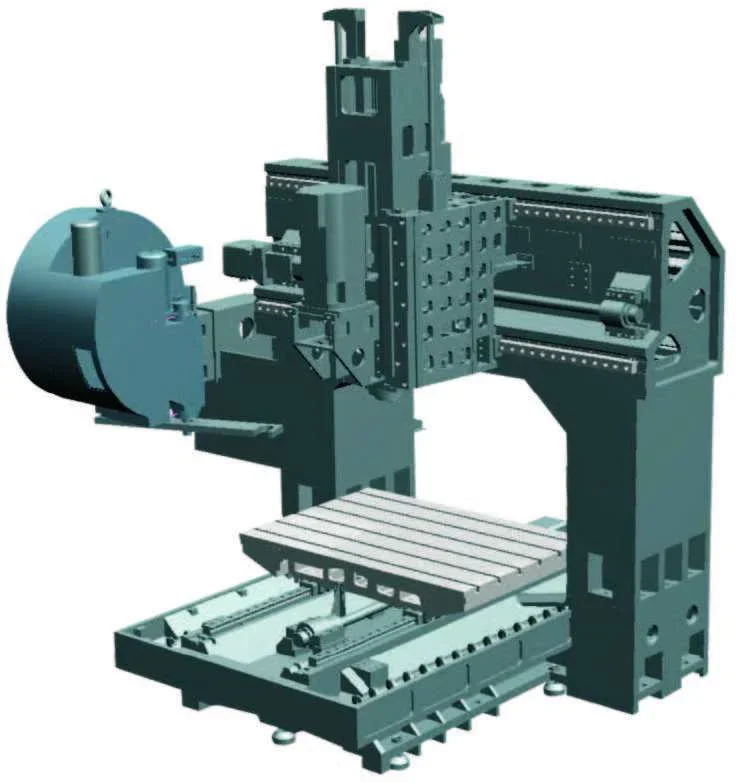

Back Door Type Gantry Machining Center
High-rigidity back door type gantry machining center with strong overall stability, suitable for heavy cutting and high-precision machining
Specifications
- travel_x_mm
- 1500
- travel_y_mm
- 1000
- travel_z_mm
- 600
- table_size_mm
- 1450x1000
- repeatability_mm
- 0.015
- spindle_speed_rpm
- 6000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_m_min
- 8
- spindle_motor_power_kw
- 18.5
- table_load_capacity_kg
- 2000
- positioning_accuracy_mm
- 0.02
- tool_changer_capacity_pcs
- 24
- rapid_traverse_rate_g00_m_min
- 24
- max_tool_diameter_full_pockets_mm
- 78
- max_tool_diameter_empty_pockets_mm
- 120
