Hangzhou Dadian CNC

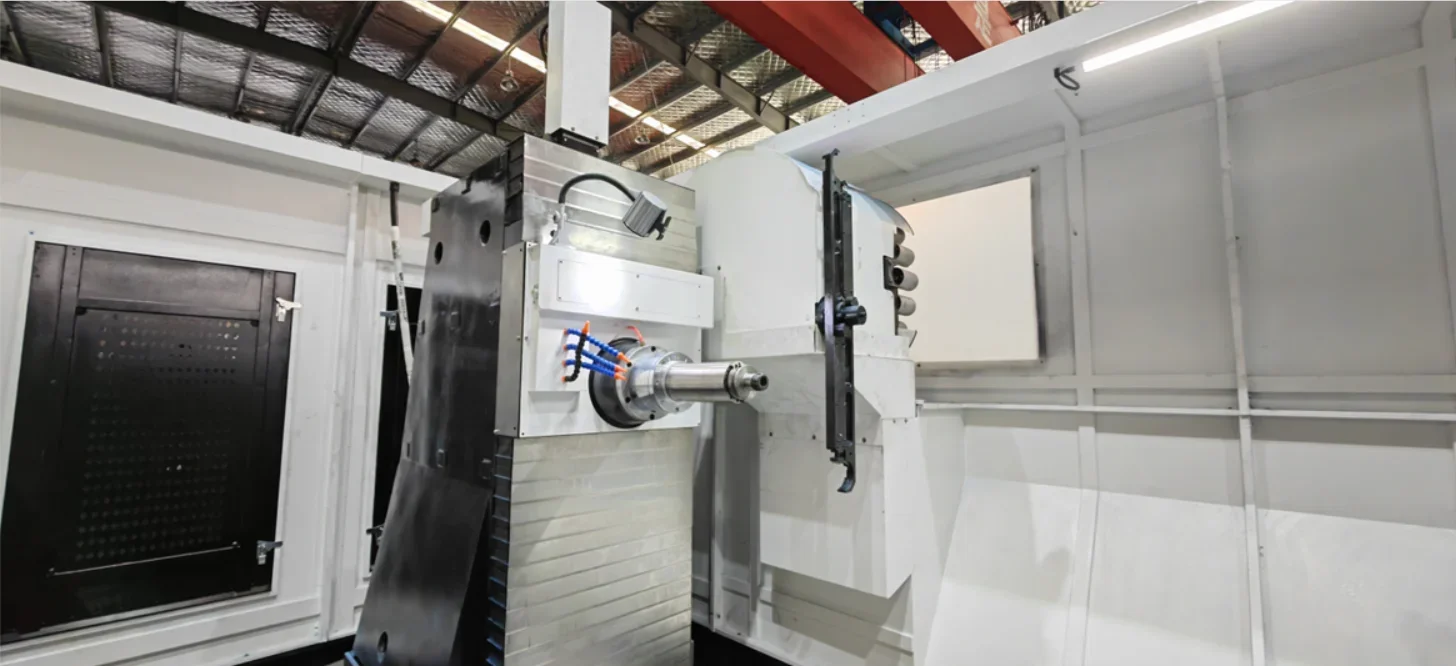

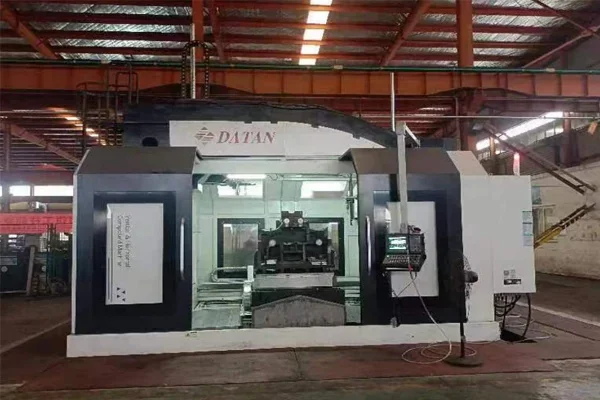

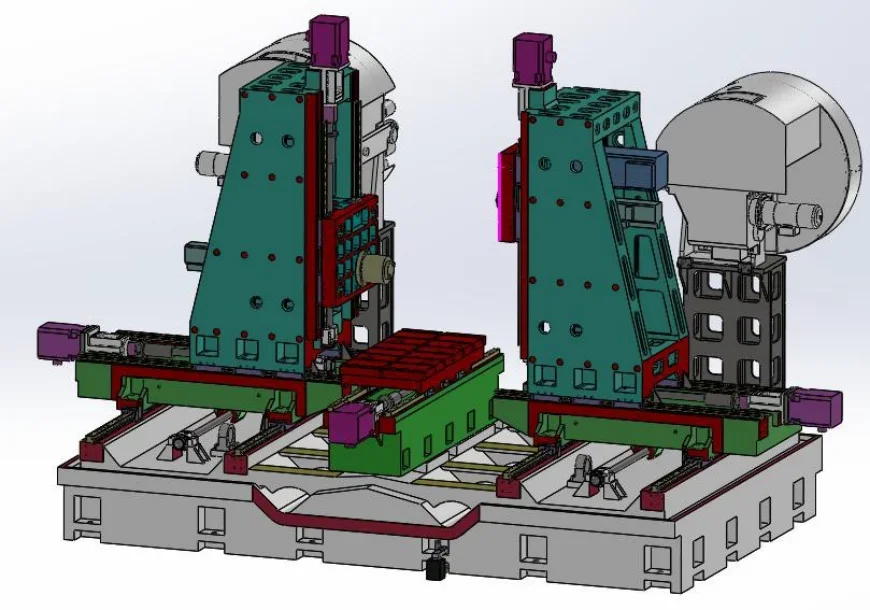

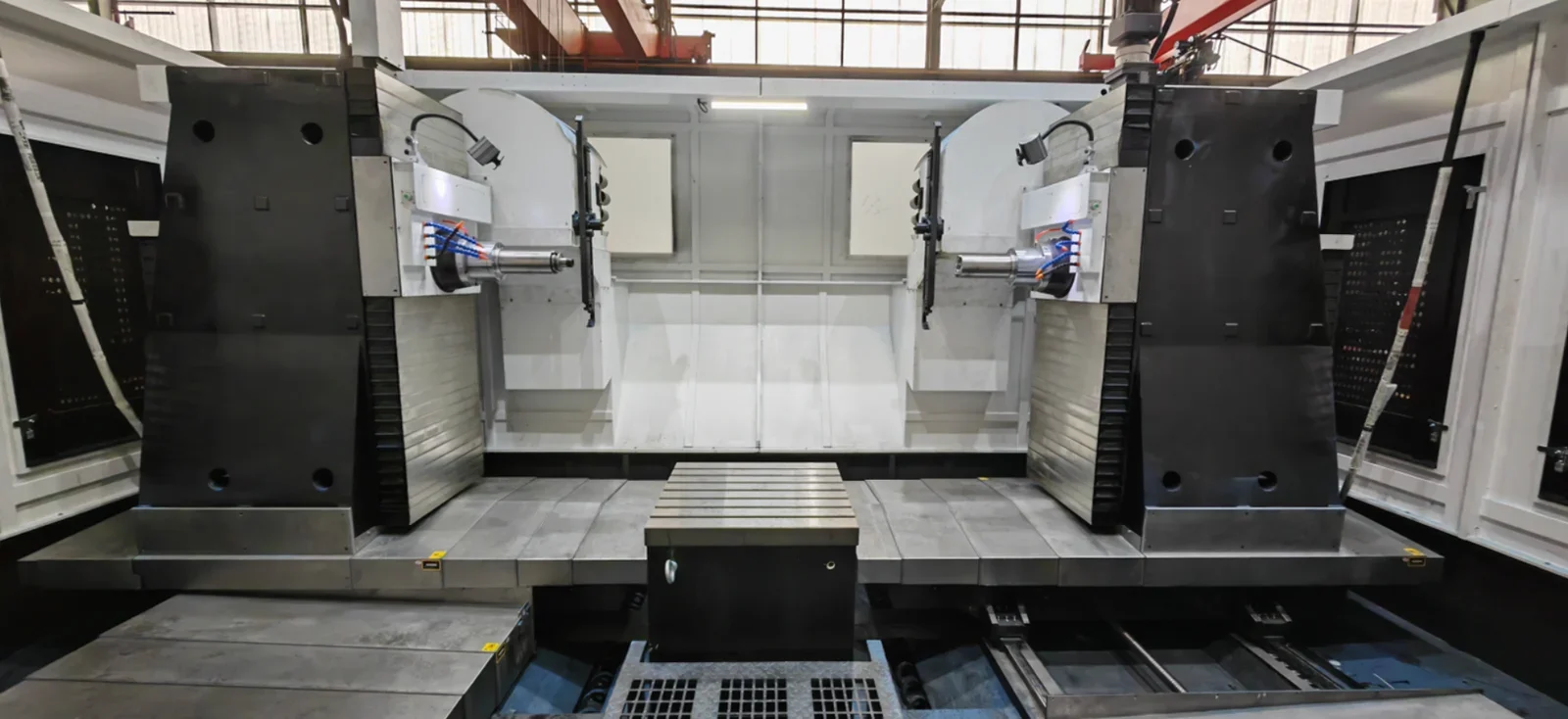

Moving Column Double-Spindle Composite Machine Tool

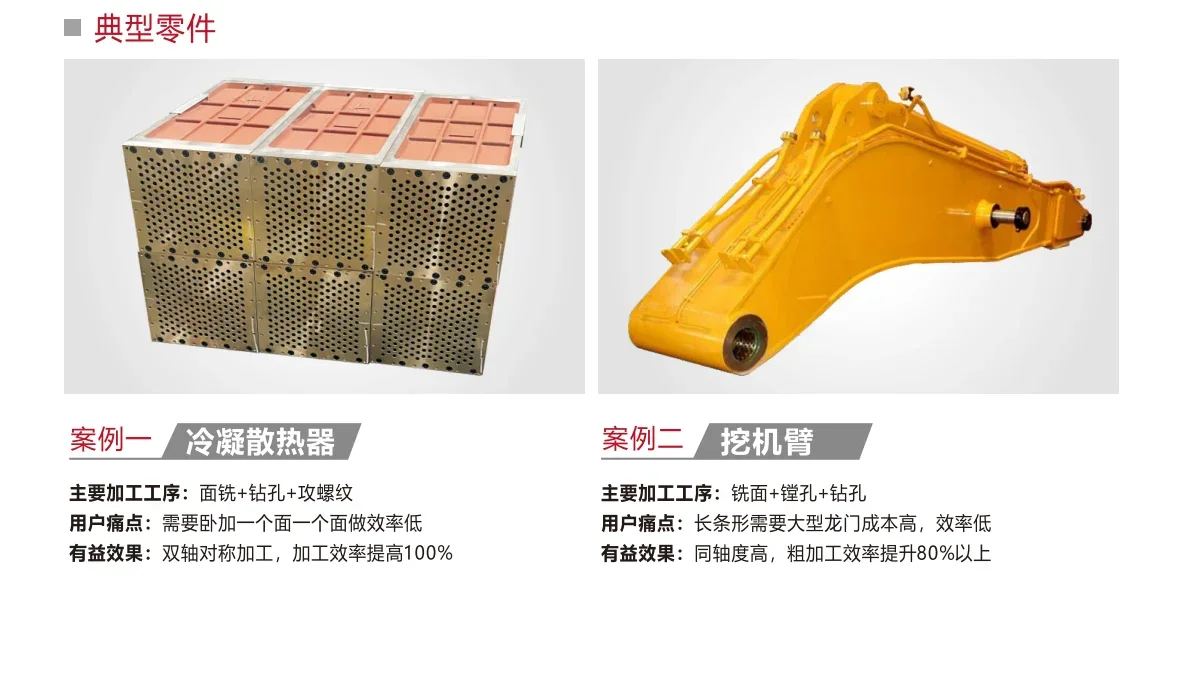

Moving column double-spindle composite machine tool, completes multi-face processing in one setup, suitable for box-type and irregular parts.
Specifications
- travel_x_mm
- 1100
- travel_y_mm
- 750
- travel_z_mm
- 950
- table_size_mm
- 630x630
- spindle_speed_rpm
- 6000
- tool_capacity_pcs
- 24
- feed_rate_g01_mm_min
- 10000
- table_load_capacity_kg
- 1500
- rapid_traverse_rate_g00_m_min
- 24
