Hangzhou Dadian CNC

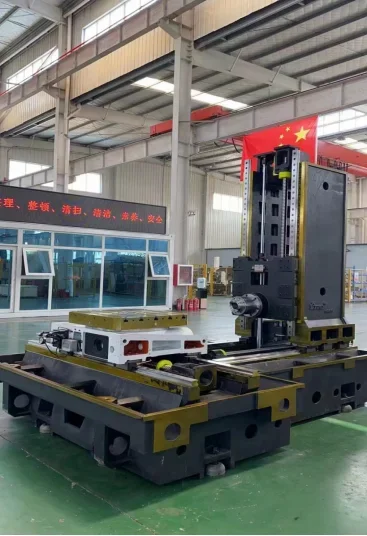

Horizontal Machining Center
HL630 Horizontal Machining Center, travel 1050×750×900mm, spindle speed 6000rpm
Specifications
- travel_x_mm
- 1050
- travel_y_mm
- 750
- travel_z_mm
- 900
- table_size_mm
- 630x630
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 950
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 18.5
- max_tool_diameter_full_mm
- 78
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
