Hangzhou Dadian CNC

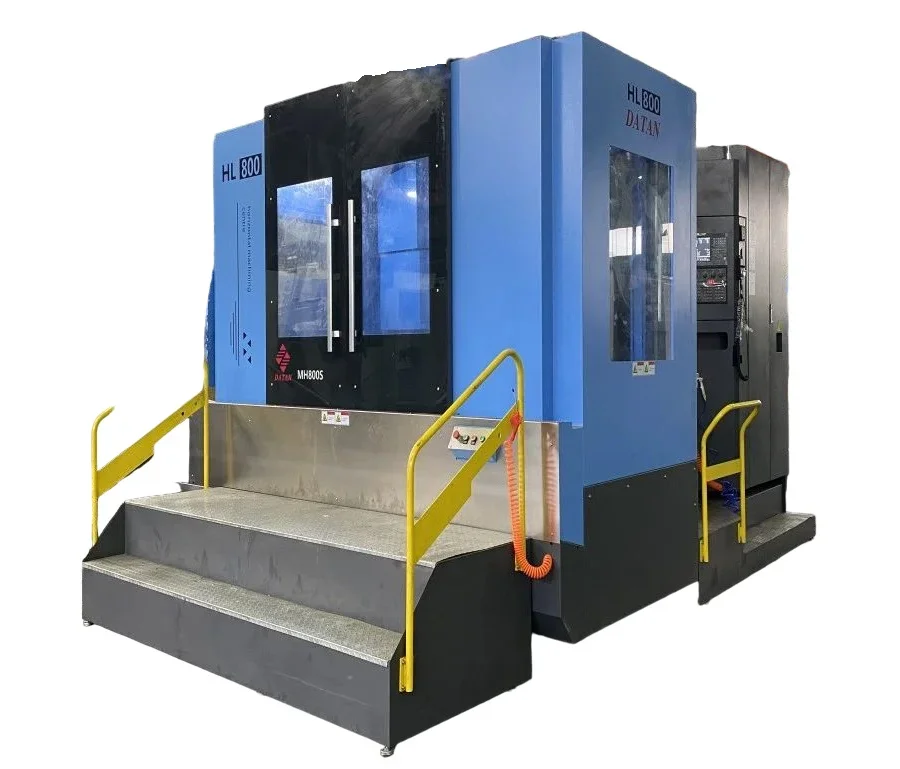

High Precision Horizontal Machining Center
High precision HMC, travels 1300×1000×1000mm, spindle speed 6000rpm
Specifications
- travel_x_mm
- 1300
- travel_y_mm
- 1000
- travel_z_mm
- 1000

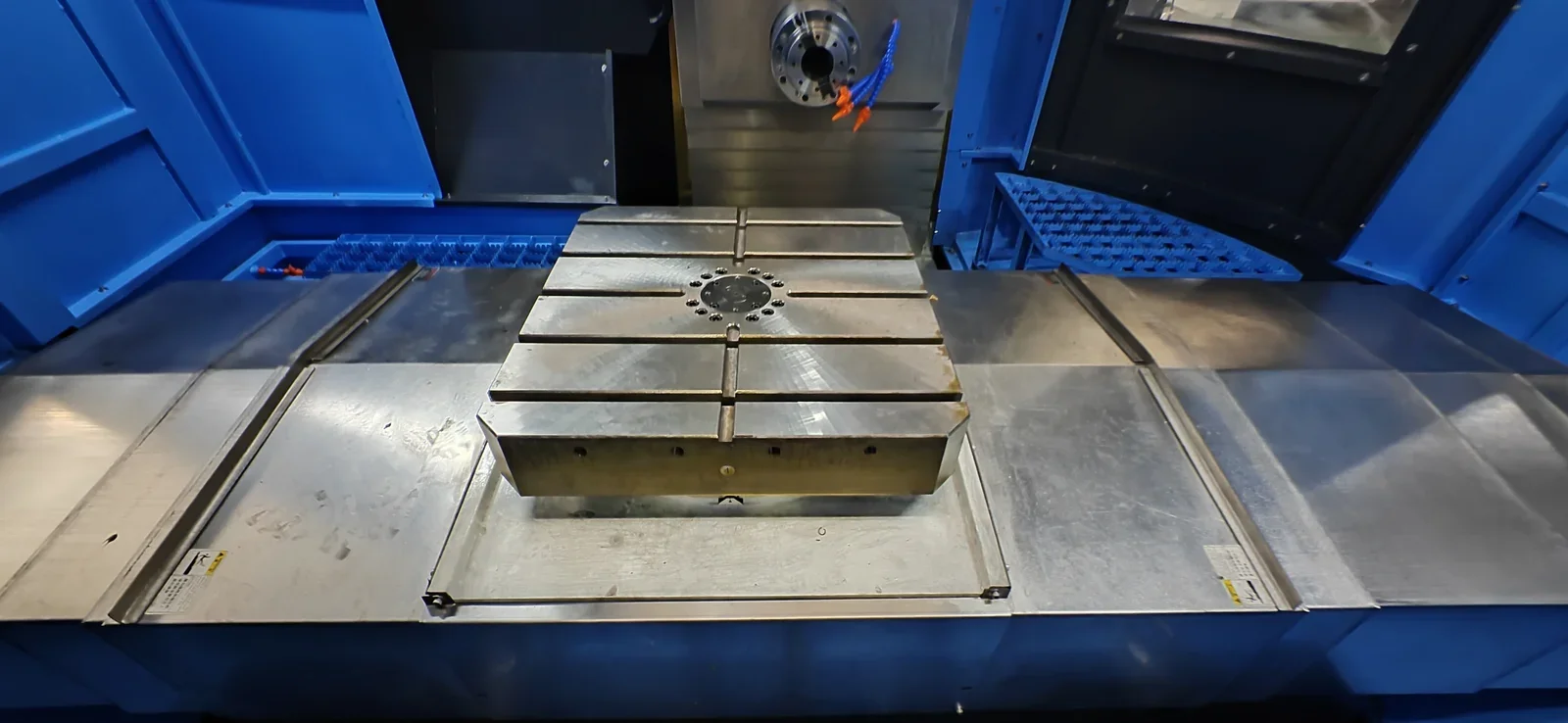

- table_size_mm
- 800x800
- feed_rate_m_min
- 10
- repeatability_mm
- 0.015
- spindle_speed_rpm
- 6000
- table_max_load_kg
- 1500
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- rapid_traverse_m_min
- 48
- spindle_motor_power_kw
- 18.5
- positioning_accuracy_mm
- 0.02
- max_tool_diameter_full_mm
- 78
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
