Hangzhou Dadian CNC

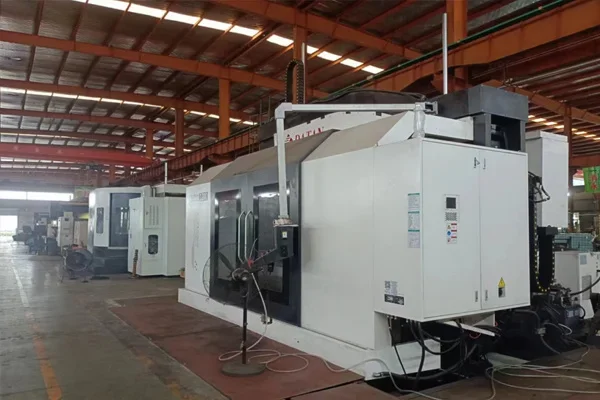

Popular Machining Center
High-rigidity vertical machining center suitable for heavy cutting and precision machining
Specifications
- travel_x_mm
- 1100
- travel_y_mm
- 600
- travel_z_mm
- 600

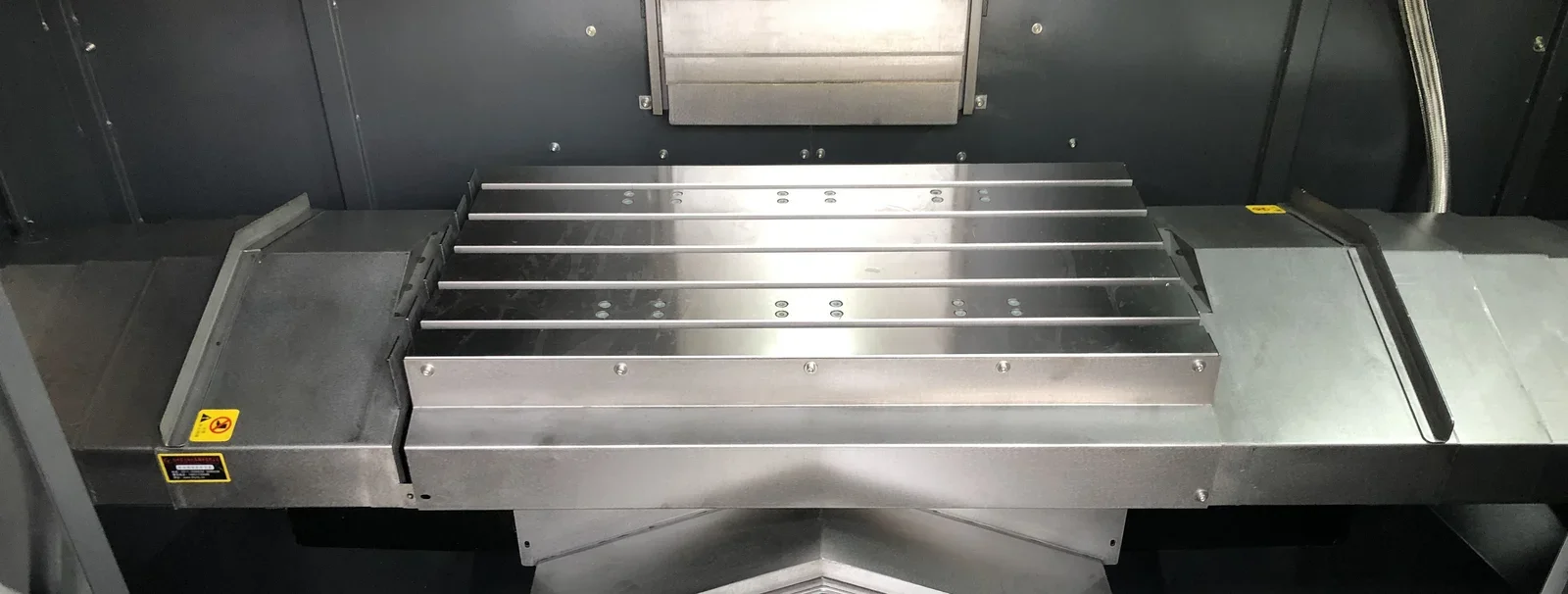

- table_size_mm
- 1200x600
- repeatability_mm
- 0.005
- spindle_speed_rpm
- 8000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_m_min
- 10
- power_requirement_kva
- 12
- spindle_motor_power_kw
- 11
- table_load_capacity_kg
- 1000
- positioning_accuracy_mm
- 0.008
- tool_changer_capacity_pcs
- 24
- rapid_traverse_rate_g00_m_min
- 48
- air_pressure_requirement_kg_cm2
- 8
- max_tool_diameter_full_pocket_mm
- 78
- max_tool_diameter_empty_pocket_mm
- 120
