Hangzhou Dadian CNC

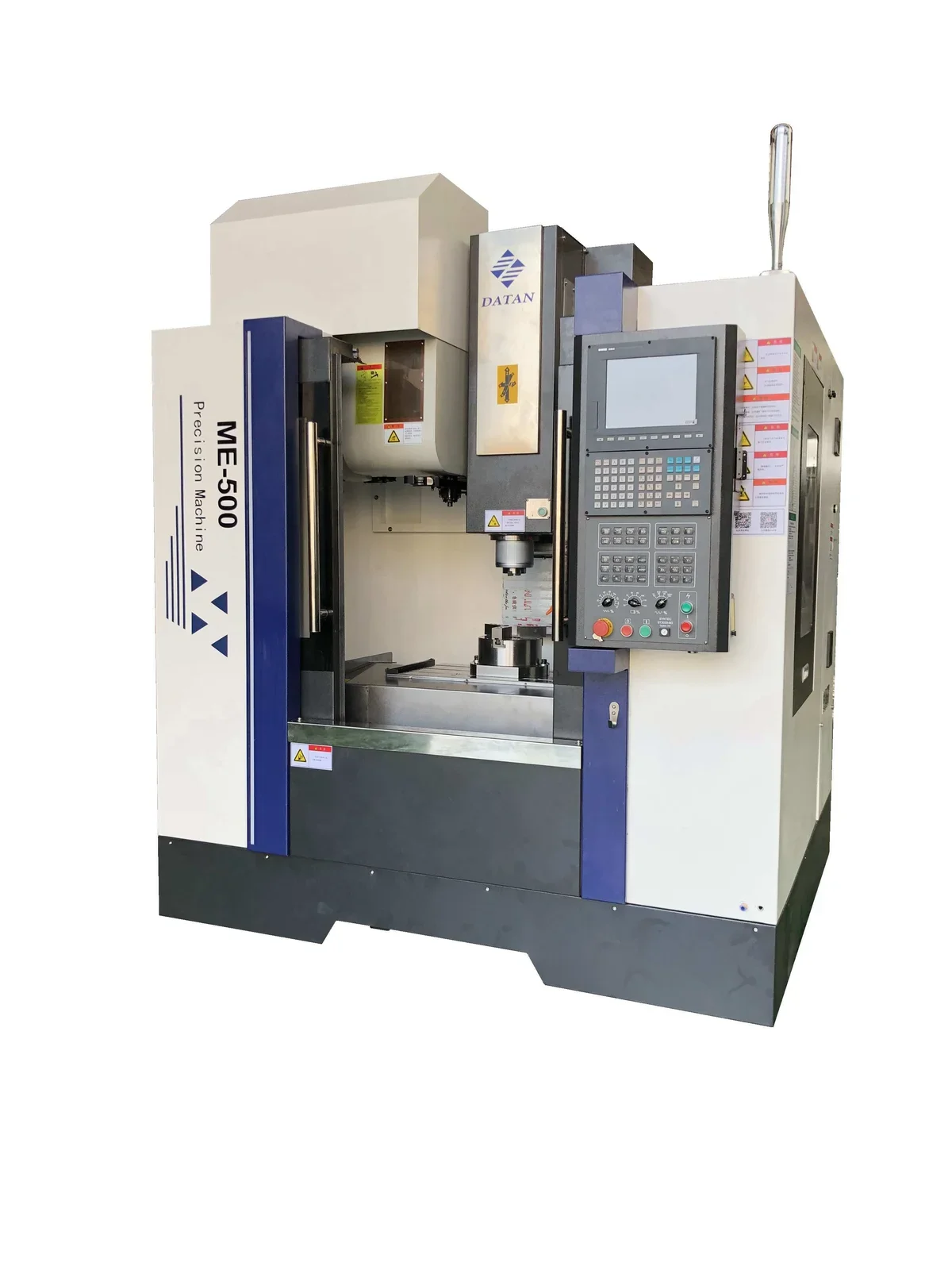

Popular Machining Center
Cost-effective vertical machining center with 500×300×450mm travels
Specifications
- travel_x_mm
- 500
- travel_y_mm
- 300
- travel_z_mm
- 450
- table_size_mm
- 700x350
- feed_rate_m_min
- 10
- power_demand_kva
- 8
- repeatability_mm
- 0.003
- spindle_speed_rpm
- 8000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 3.7
- table_load_capacity_kg
- 500
- positioning_accuracy_mm
- 0.005
- max_tool_diameter_full_mm
- 78
- rapid_traverse_rate_m_min
- 48
- tool_changer_capacity_pcs
- 16
- max_tool_diameter_adjacent_mm
- 120
