Hangzhou Dadian CNC
Popular Machining Center
High-rigidity vertical machining center for heavy cutting
Specifications
- travel_x_mm
- 800
- travel_y_mm
- 550
- travel_z_mm
- 550
- spindle_taper
- BT40

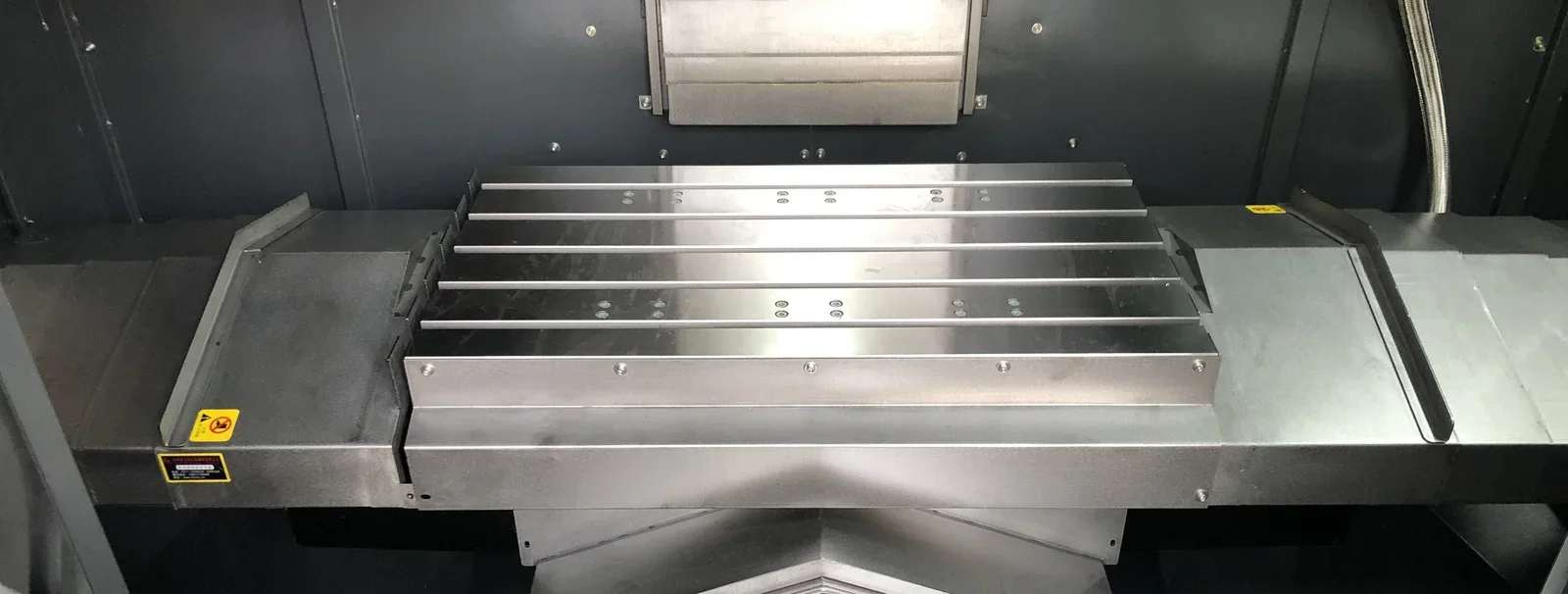

- table_size_mm
- 1000x550
- feed_rate_m_min
- 10
- power_demand_kva
- 10
- repeatability_mm
- 0.003
- spindle_speed_rpm
- 8000
- table_max_load_kg
- 800
- tool_change_time_s
- 1.8
- spindle_motor_power_kw
- 11
- positioning_accuracy_mm
- 0.005
- rapid_traverse_rate_m_min
- 48
- tool_changer_capacity_pcs
- 24
