Hangzhou Dadian CNC

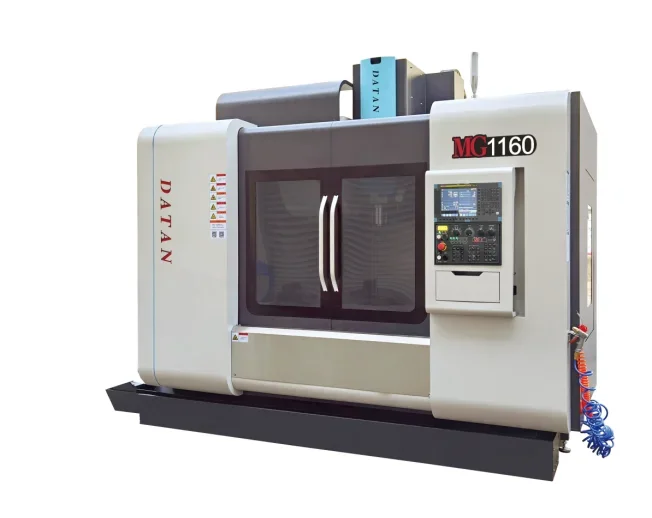

MG Powerful Machining Center
High-rigidity vertical machining center, travel 1100×600×600mm, spindle speed 5000rpm
Specifications
- travel_x_mm
- 1100
- travel_y_mm
- 600
- travel_z_mm
- 600
- spindle_taper
- BT40
- table_size_mm
- 1200x600
- power_demand_kva
- 12
- repeatability_mm
- 0.005
- spindle_speed_rpm
- 5000
- table_max_load_kg
- 1000
- max_tool_length_mm
- 300
- max_tool_weight_kg
- 8
- tool_change_time_s
- 1.8
- feed_rate_g01_m_min
- 10
- positioning_accuracy_mm
- 0.008
- rapid_traverse_g00_m_min
- 36
- max_tool_diameter_full_mm
- 78
- tool_changer_capacity_pcs
- 24
- max_tool_diameter_adjacent_mm
- 120
- air_pressure_requirement_kg_cm2
- 8
